Pit Boss 700FB - Mounting Wheels to Legs; Installing the Bottom Shelf; Securing the Lid Stopper; Assembling the Lid Handle

ENGLISH
8
2.      
Parts Required:
2 x Metal Wheel (#7)
2 x Washer (#B)
2 x Nut (#C)

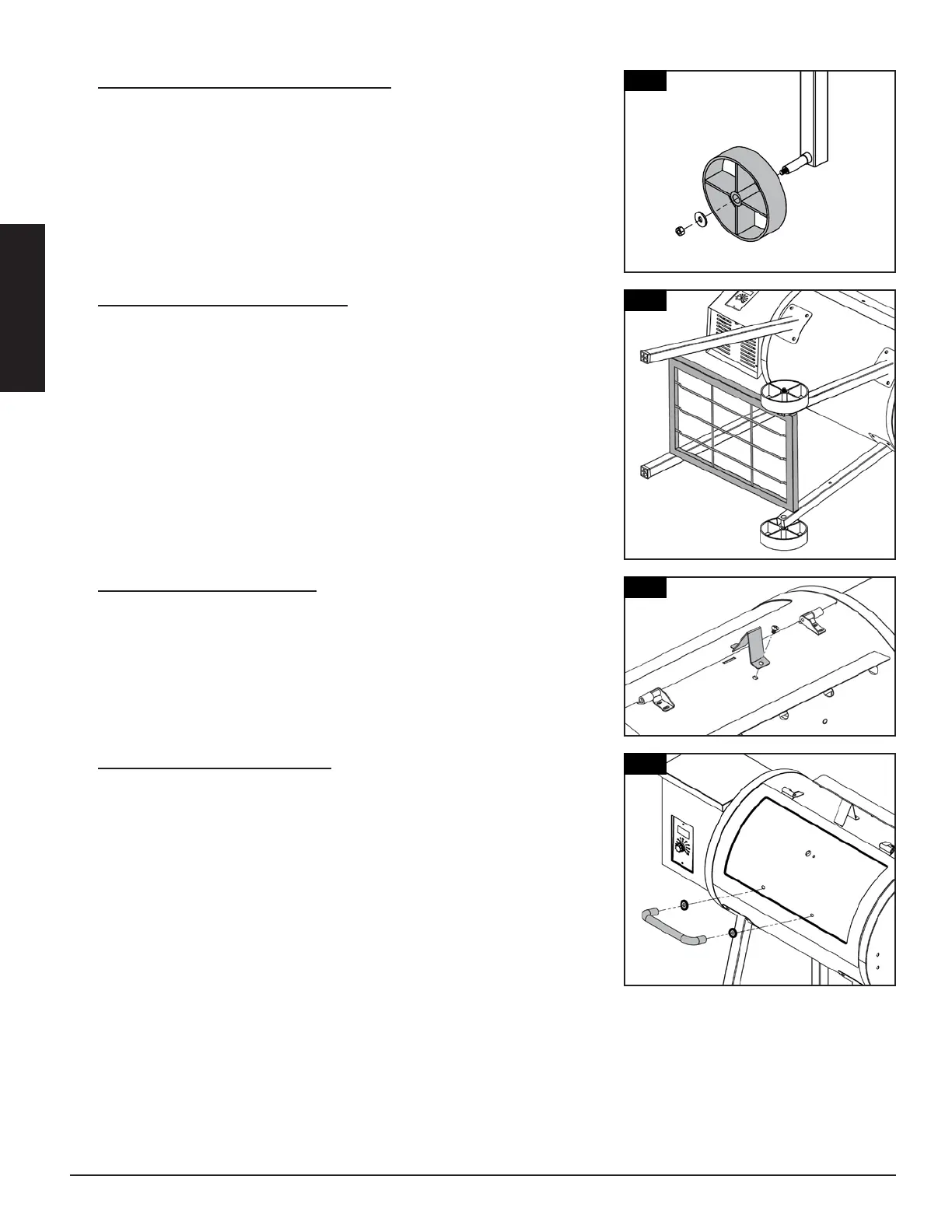

Installation:
• Slide a metal wheel onto each leg with wheel axle. Secure using a
washer and a nut. Spin each wheel to ensure the wheels turn freely.
3.    
Parts Required:
1 x Bottom Shelf (#14)
4 x Screw (#A)
4 x Locking Washer (#D)
4 x Washer (#E)
Installation:
• From underneath, secure the bottom shelf to all each leg using a
screw, locking washer, and washer. Ensure the flat surface of the shelf
is facing up.
• Once the shelf is secure, carefully lift the grill into an upright position.
4.    
Parts Required:
1 x Lid Stopper (#3)
Installation:
• Secure the lid stopper onto the top of the main barrel using the pre-
installed screw on the top of the main barrel.
5.    
Parts Required:
1 x Lid Handle (#9)
2 x Bezel (#8)
Installation:
• Remove the pre-installed screws from the lid handle. From inside the
barrel lid, insert one screw to protrude to the outside. Add a bezel on the
screw, then hand-tighten the screw (from the inside) into the lid handle.
• Repeat same installation for other end of lid handle.
4
5
3
2
