Pit Boss 820 - Replacement Parts List

PARTS LIST
Page 26
SEE YOUR “PIT BOSS” DEALER FOR ADDITIONAL INFORMATION OR TO ORDER
REPLACEMENT ITEMS
Section Four: TROUBLE SHOOTING

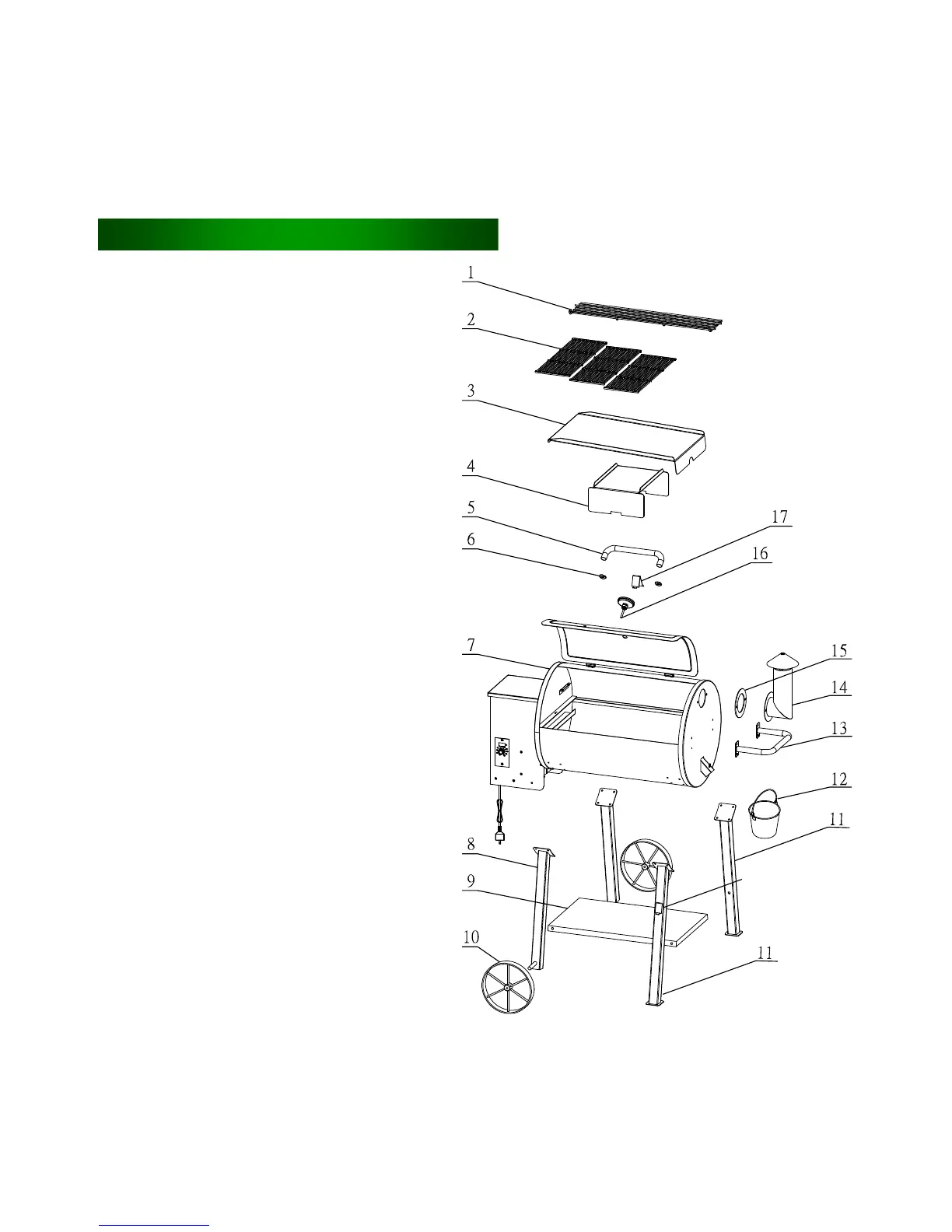

Item Part # Description
1. Upper Rack
8 1/2” x 27 3/4”
2. Cooking Grids
3. Grease Tray
4. Flame Diffuser
5. Front Handle—Chrome
6. Bezel,
(decorative washer)
7. Barrel & Hopper Assembly
8. Leg w/ Wheel axle
(hopper side)
9. Bottom Shelf, Open Grid
10. Metal Wheel
11A. Front Leg –
(exhaust end)
12. Grease Bucket
13. Side Handle
18
” x 13”
14. Smoke Stack
15. Smoke Stack—Gasket
16. Dome Thermometer
17. Lid Stopper
11B
Rear Leg—(exhaust end)
a
b
18
19
