Pit Boss 820 - Assembling Lid Components and Smoke Stack

Section One: ASSEMBLY INSTRUCTIONS
Page 8

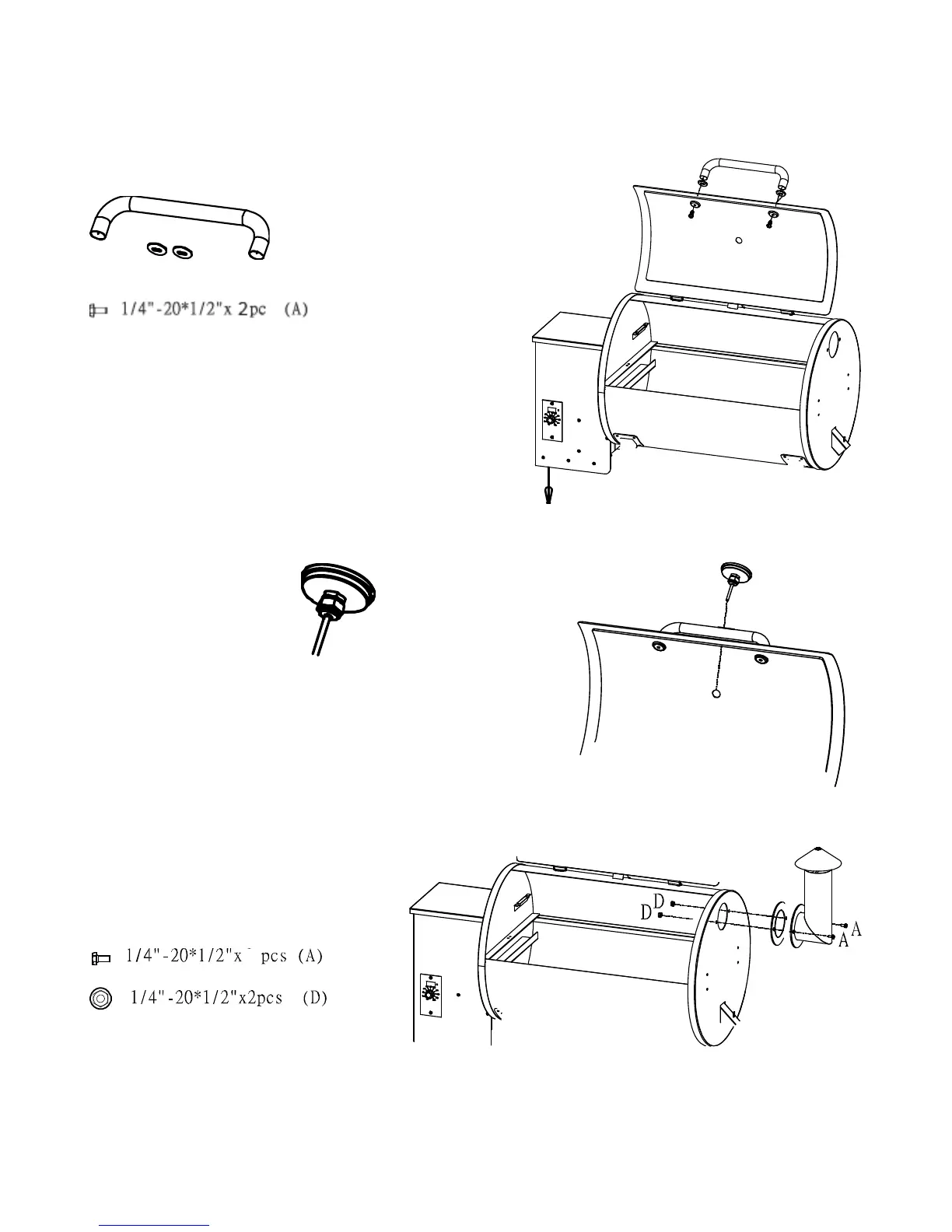

ASSEMBLING THE LID HANDLE
Installation Steps
Parts Supplied:
Hardware Supplied:
5
6
A
A
5 Lid Handle
6 Decorative
Washers x 2
( Bezels )
Installation Steps
Part Supplied:
16 Dome Thermometer
ASSEMBLING THE DOME THERMOMETER
16
Installation Steps
Parts Supplied:
14 Smoke Stack
15 Smoke Stack Gasket
ATTACHING THE SMOKE STACK
 Insert one screw (A) from inside the lid, through the hole
provided in the lid.
 Place one Bezel (6) over the screw, then line-up the
handle (5) with the threaded end of the screw.
 Hand start the screw into the handle,
 Repeat procedure for other end of handle.
 Using your wrench securely tighten ALL screws (A)
 The thermometer comes complete with its own threaded nut
Already installed on the thermometer.
 Simply spin off the threaded nut, and insert the thermometer
through the hole provided in the top of the hood,
Then firmly hand tighten the nut back onto the thermometer.
Note: Take care not to turn the face of the thermometer. This will
result in incorrect readings.
Hardware Supplied:
15
14
 Using the 2 screws (A) insert them through the stack section, through the gasket, then finally through the
barrel end.
 Secure in place using the 2 1/4” - 20 1/2” nuts. Tighten firmly using your wrench.
2
