NOTE: For all of the following steps, do not tighten any screws completely until all screws for that step have been
installed. Once all screws have been installed, then tighten them securely.

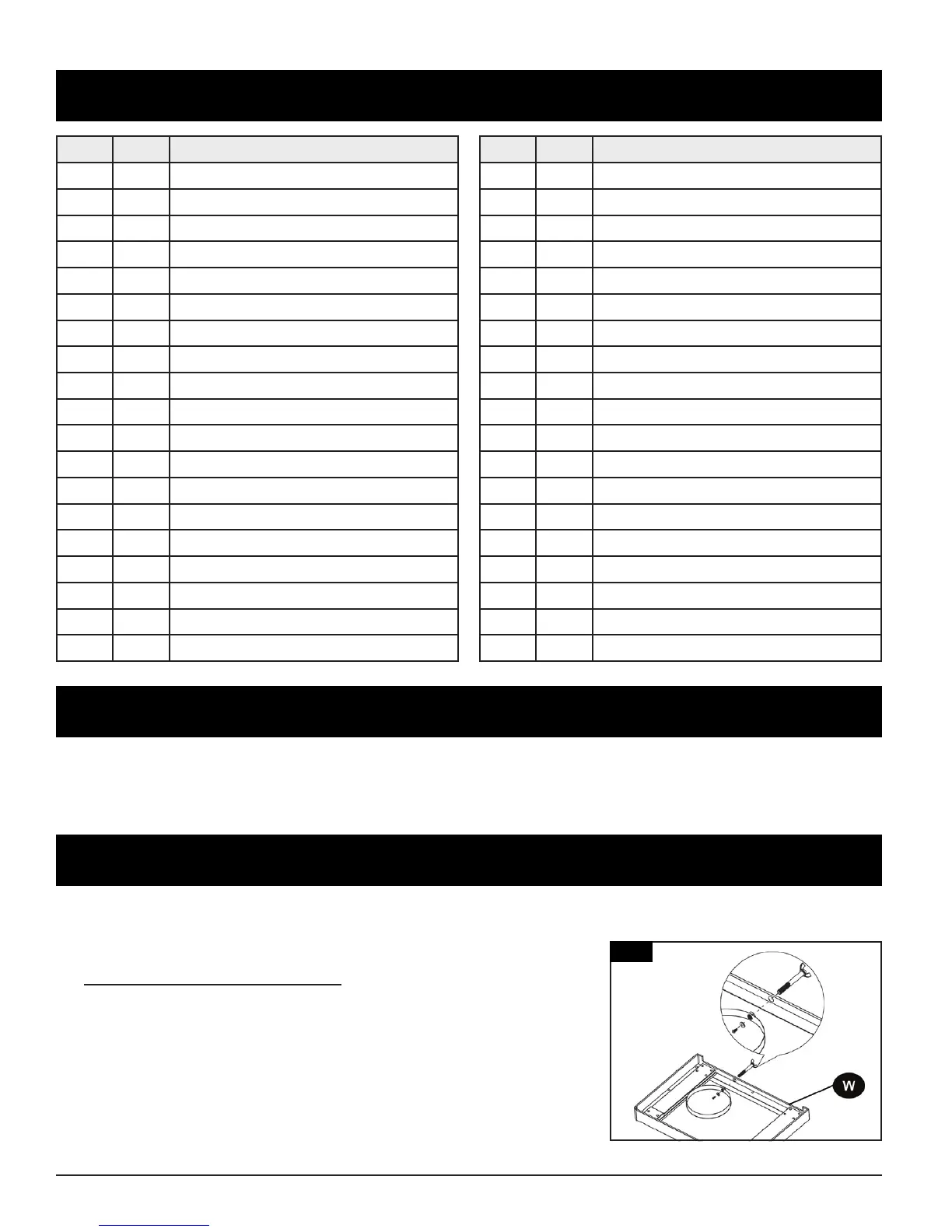

1.
Parts Required:
1 x Cart Base (W)
Installation:
• Detach the preassembled tank tray bolt from the interior of the cart
base (W), then reinstall from the exterior as shown.
PART QTY DESCRIPTION PART QTY DESCRIPTION
A 1 Warming Rack T 1 Cart Heat Shield
B 2 Cooking Grate U 2 Cart Support Bracket
C 4 Flame Tamer V 2 Locking Caster
D 1 Right Shelf Base W 1 Cart Base
E 1 Right Shelf Front X 1 Cart Support Beam
F 1 Right Shelf Bracket Y 1 Door Catch Plate
G 1 Control Knob Bezel Z 2 Caster
H 1 Control Knob A1 1 Right Cabinet Door
I 1 Cart Back Panel B1 1 Right Side Cart Panel
J 1 Back Grill Head Cover C1 1 Grease Cup
K 1 Grill Head D1 1 Grease Tray
L 1 Left Shelf Base E1 1 Side Burner Plate
M 1 Left Shelf Bracket AA 16 Screw - 5/32-32 x 3/8 inch
N 1 Left Shelf Front BB 26 Screw - 1/4-20 x 1/2 inch
O 1 LP Tank Barrier Bar CC 23 Screw - 1/4-20 x 3/8 inch
P 1 Left Side Cart Panel DD 22 Lock Washer - 1/4-20
Q 1 Left Cabinet Door EE 10 Screw - 1/4-20 x 5/16 inch
R 2 Door Handle FF 1 Allen Wrench
S 4 Door Handle Grommet GG 1 AA Battery
7
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware
contents list. If any part is missing or damaged, do not attempt to assemble the product.
Tools required for assembly: Phillips Screwdriver (not included).
1
