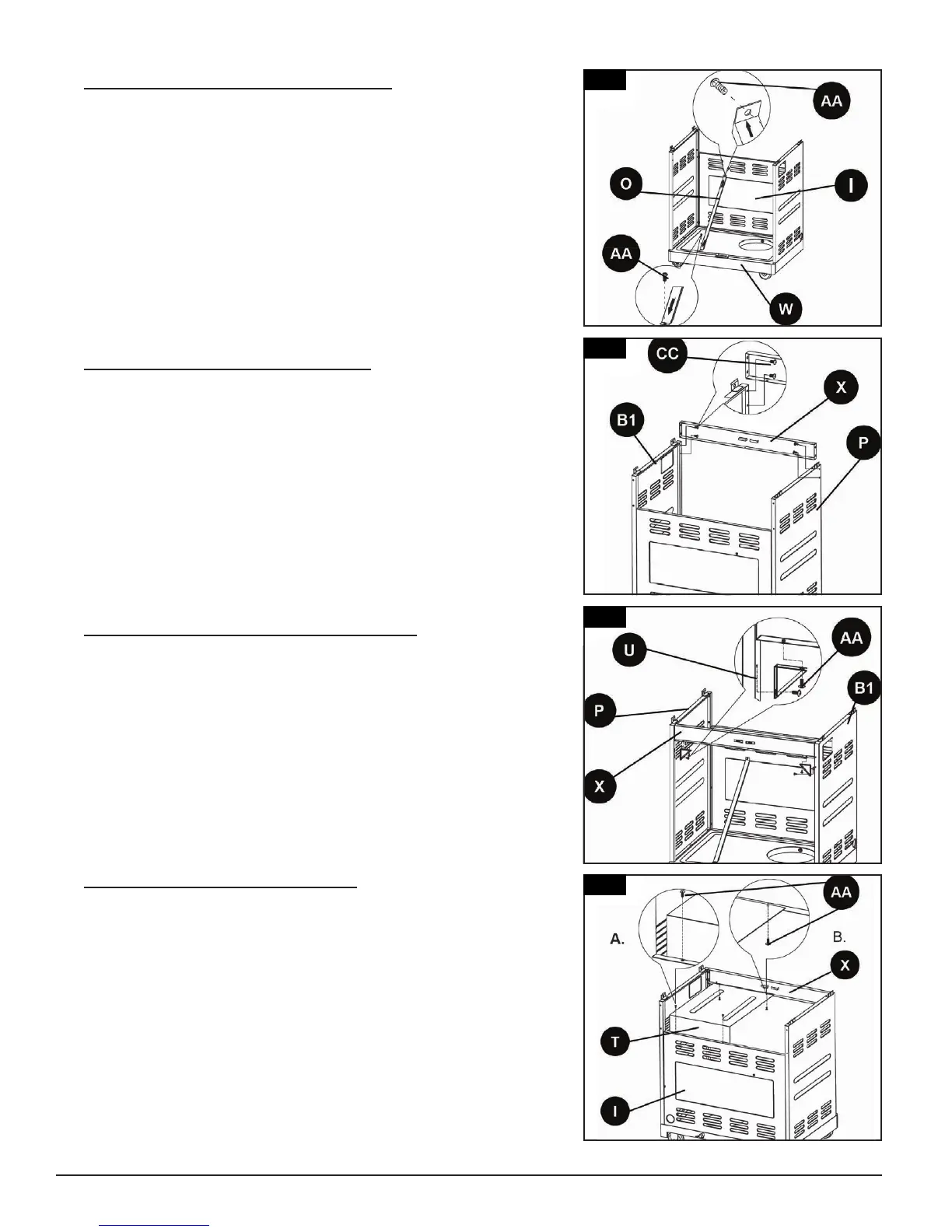

6.
Parts Required:
1 x LP Tank Barrier Bar (O)
2 x Screw (AA)
Installation:
• Attach the LP tank barrier bar (O) diagonally to the cart back panel (I)
and the cart base (W) using 1 screw (AA) at each end.
NOTE: The threaded end of the LP tank barrier bar should point to
the cart back panel, fastening from the outside of the cart.
7.
Parts Required:
1 x Cart Support Beam (X)
4 x Screw (CC)
Installation:
• Attach the cart support beam (X) to the left and right side cart panels
(P and B1) using 4 screws (CC).
NOTE: The magnets on the cart support beam (X) should be facing
outward, and the holes should face downward while assembling.
8.
Parts Required:
1 x Cart Support Brackets (U)
4 x Screw (AA)
Installation:
• Attach the cart support brackets (U) to the corners of the cart support
beam (X) and each side cart panels (P and B1) using 4 screws (AA).
9.
Parts Required:
1 x Cart Heat Shield (T)
4 x Screw (AA)
Installation:
• Attach the cart heat shield (T) to the cart back panel (I) using 2 screws
(AA). Ensure the heat shield installs under the lip of the cart back
panel (I) as shown in illustration.
• Next, attach the cart heat shield (T) to the cart support beam (X) using
2 screws (AA). Ensure the cart heat shield (T) installs on top of the lip
of the cart support beam (X).
9
6
7
8
9
