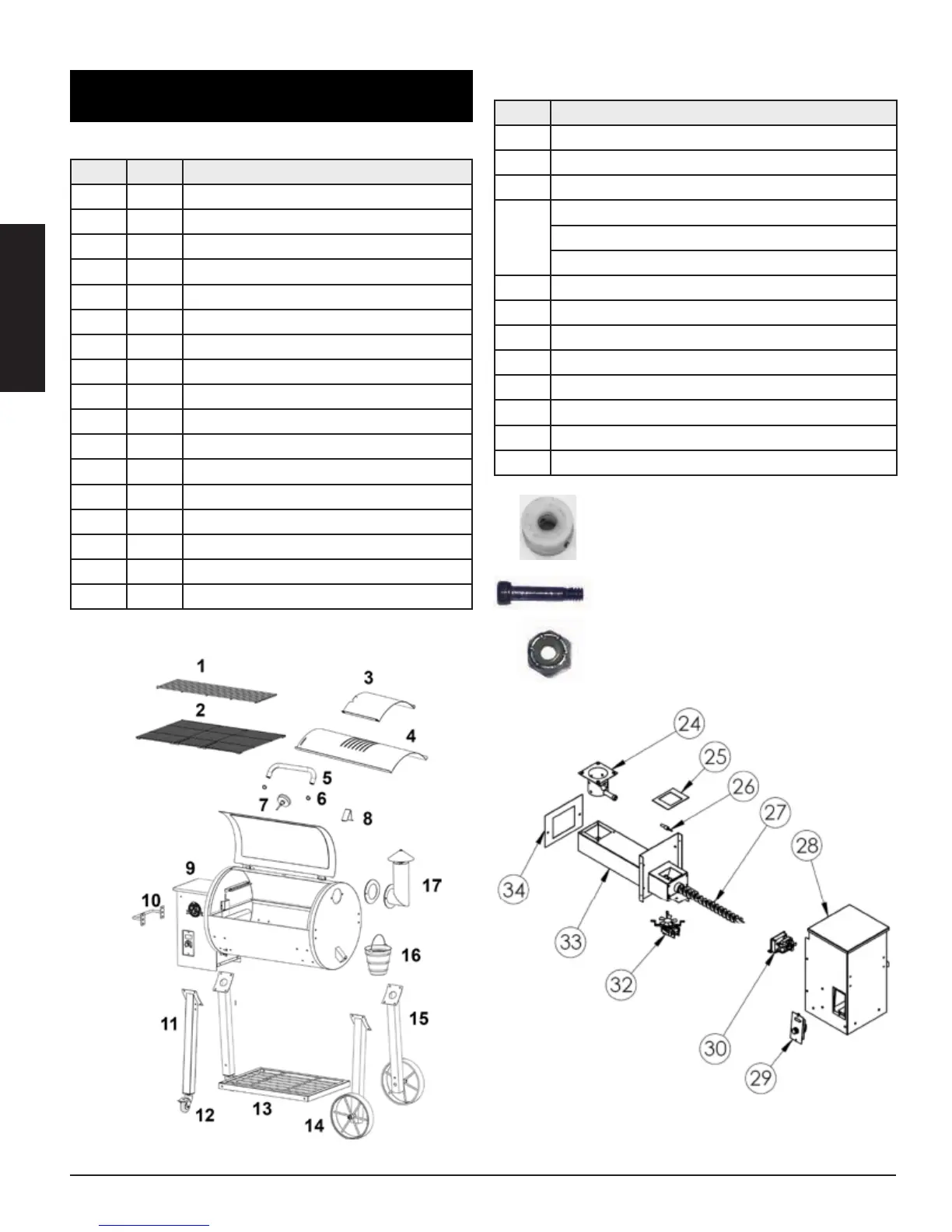

PARTS LIST
Item Qty Description
1 1 Upper Rack
2 2 or 3 Cooking Grids
3 1 Flame Broiler - main
4 1 Flame Broiler - slide
5 1 Handle - Chrome
6 2 Bezel (decorative washer)
7 1 Dome Thermometer
8 1 Lid Stopper
9 1 Barrel & Hopper Assembly
10 1 Hopper Handle
11 2 Caster Legs (hopper end)
12 2 Locking Casters
13 1 Open Grid Bottom Shelf
14 2 Metal Wheel c/w Rubber Coating
15 2 Leg w/ Wheel Axle (chimney stack end)
16 1 Grease Bucket
17 1 Chimney Stack c/w Gasket
Due to ongoing improvements, product is subject to change without notice.
24
PELLET FEED SYSTEMS - PARTS LIST
Item Description
24 Fire Pot
25 Hopper / Auger Box Gasket
26 Igniter - Hot Rod
27
Auger Flighting
Auger Shaft Bolt 7/8" L x 9/64" thick
Auger Motor Shaft Lock Nut #32 thread
28 Hopper Box - Housing Only
29 Pit Boss Electronic Oven Control
30 Auger Motor
31 Nylon Bushing
32 Combustion Fan
33 Auger Box - Housing Only
34 Hopper Assembly / Grill Body Gasket
35 Grill Probe - RTD
Nylon Bushing
Auger Shaft Bolt
Auger Shaft Lock Nut
PARTS LIST
