ENGLISH

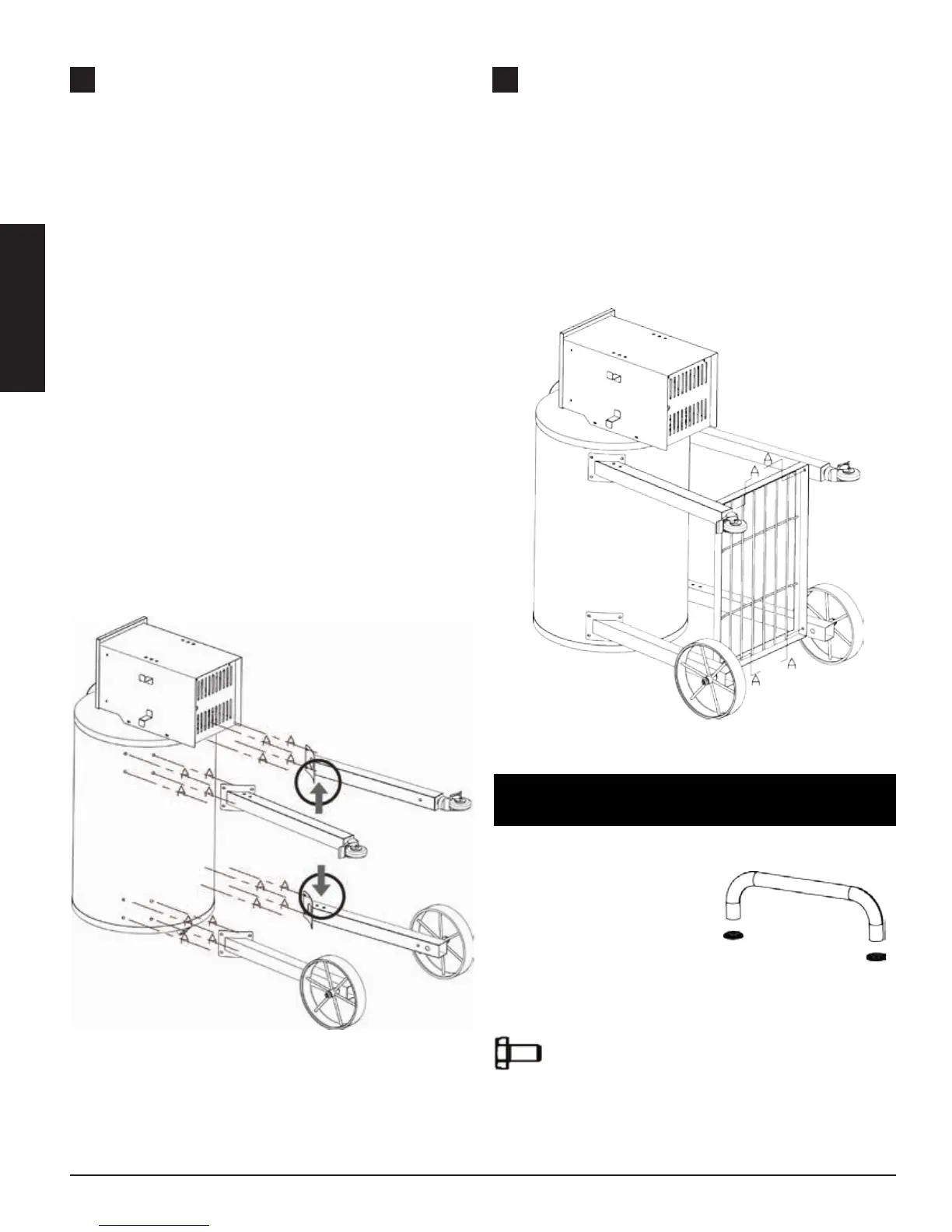

3 ATTACH LEGS TO BARREL
• To ease installation, gently lay the barrel on its end, not the
hopper end. A piece of cardboard or blanket should be placed
under the grill to prevent scratching the finish.
• Using the proper tool, install the 2 legs WITHOUT the wheel
axles to the top of the barrel (hopper end).
Reminder: Leg with Front Shelf holes, faces out toward the
front of the grill (arrow).
Fasten all four 1/4” - #20 x 3/5” screws (AA), along with 4 Spring
Washers (CC) and 4 Washers (BB), through the four pre-drilled
screw holes both on the leg and on the bottom of the barrel.
Hand start, then use tool. FASTEN ONLY, DO NOT TIGHTEN AT
THIS POINT. THIS ALLOWS FOR EASIER INSTALLATION OF BOTTOM
SHELF.
• Install the 2 legs WITH the wheel axles to the bottom of the
barrel.
Reminder: Leg with Front Shelf holes, faces out towards
the front of the grill (arrow).
Fasten all four 1/4” - #20 x 3/5” screws (AA), along with 4 spring
washers (CC) and 4 washers (BB), through the four pre-drilled
screw holes both on the leg and on the bottom of the barrel.
Hand start then use tool. FASTEN ONLY, DO NOT TIGHTEN AT THIS
POINT.
4 INSTALL BOTTOM SHELF ASSEMBLY
Models 820FBC - Open Shelf
• Install the Bottom Shelf to all four legs.
Using 4 of the 1/4" x 20 x 3/5" screws (AA), 4 washers (BB)
and 4 spring washers (CC) and your Screw Driver, hand start then
secure the screws firmly to the leg frame.
Note: Ensure the shelf is installed so the flat surface is facing up
• NOW, securely tighten ALL 16 leg screws (AA).
   
Parts Needed:
5 - Lid Handle
6 - Decorative Washers x 2 (Bezels)
Insulation Cardboard
Hardware Required:
Screw 1/4" - 20* 3/5" x2 (found in handle)
8
