Pit Boss PBV3PM1 - Replacement Parts

ENGLISH
24
 

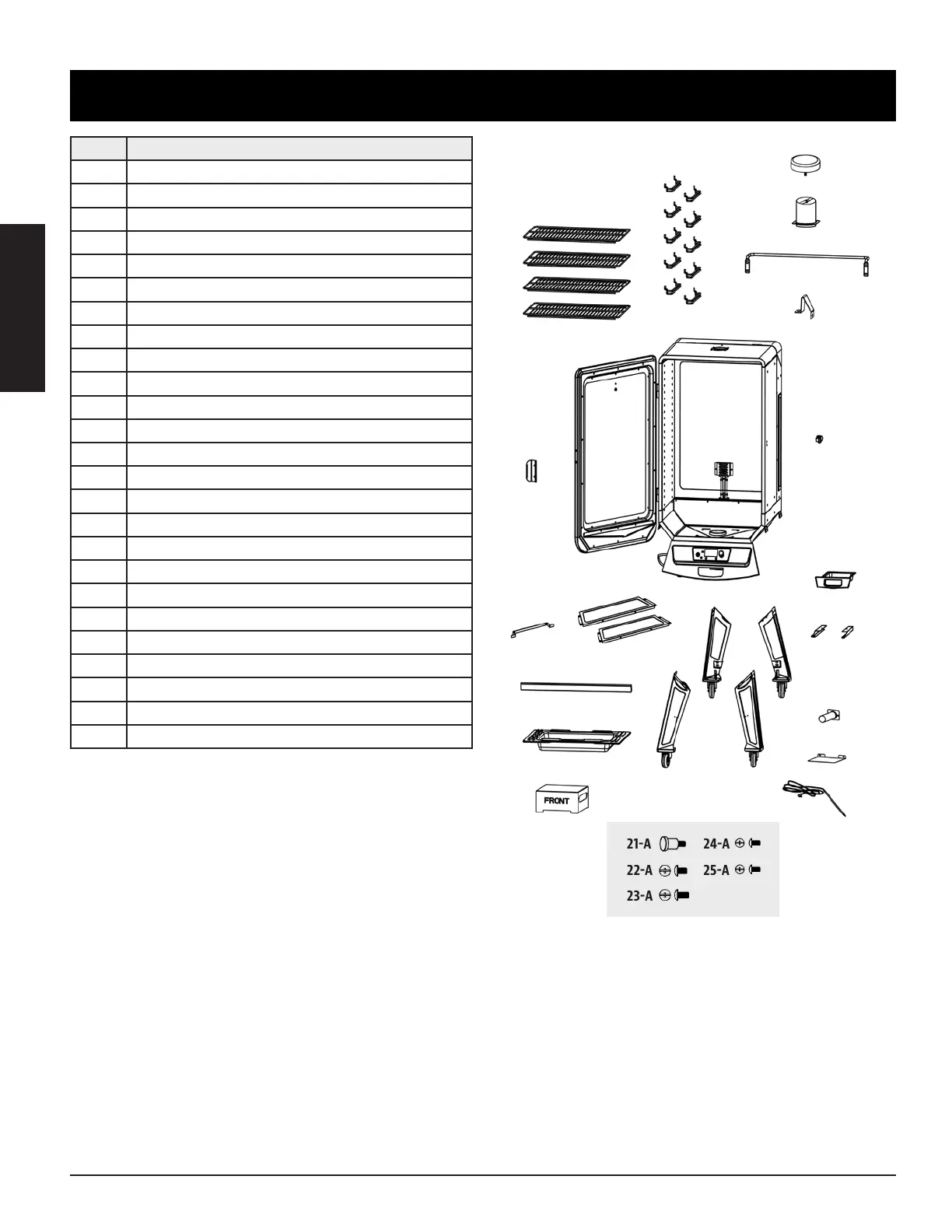

Part# Description
1 Cooking Grids (x4)
2 Cooking Grid Support Brackets (x10)
3 Chimney Cap (x1)
4 Chimney Stack (x1)
5 Back Handle (x1)
6 Lid Stopper (x1)
7 Main Cabinet (x1)
8 Cabinet Door Handle (x1)
9 Cabinet Door Latch (x1)
10 Power Cord Bracket (x1)
11 Support Panel (x2)
12 Support Bar (x1)
13 Water Pan (x1)
14 Flame Tamer (x1)
15 Support Leg With Wheel (x4)
16 Grease Tray (x1)
17 Grease Tray Brackets (x2)
18 Grease Exhaust Tube (x1)
19 Heat Shield (x1)
20 Meat Probe (x1)
21 Door Knob (x1)
22 ¼–20x½" Screw (x12)
23 ¼–20x⅝" Screw (x4)
24 #10–24x½" Screw (x32)
25 #10–24x⅓" Screw (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
