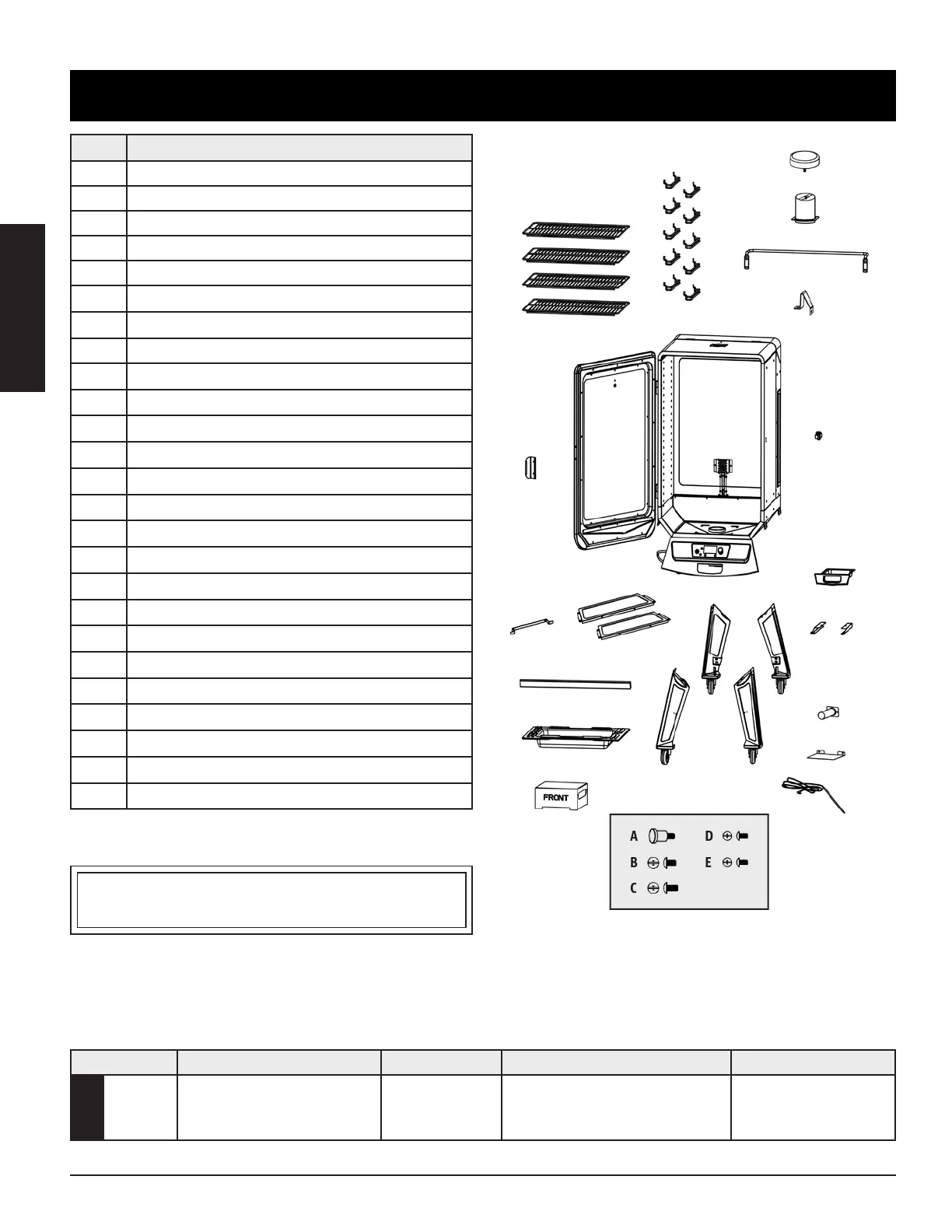

Pit Boss PBV3PM1 - Parts and Specifications

ENGLISH
6
  
Part# Description
1 Cooking Grids (x4)
2 Cooking Grid Support Brackets (x10)
3 Chimney Cap (x1)
4 Chimney Stack (x1)
5 Back Handle (x1)
6 Lid Stopper (x1)
7 Main Cabinet (x1)
8 Cabinet Door Handle (x1)
9 Cabinet Door Latch (x1)
10 Power Cord Bracket (x1)
11 Support Panel (x2)
12 Support Bar (x1)
13 Water Pan (x1)
14 Flame Tamer (x1)
15 Support Leg With Wheel (x4)
16 Grease Tray (x1)
17 Grease Tray Brackets (x2)
18 Grease Exhaust Tube (x1)
19 Heat Shield (x1)
20 Meat Probe (x1)
A Door Knob (x1)
B ¼–20x½" Screw (x12)
C ¼–20x⅝" Screw (x4)
D #10–24x½" Screw (x32)
E #10–24x⅓" Screw (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Service if parts are missing when assembling the unit.
   
110120, 60, 250, 3  
1
2
12
13
15
17
16
9
7
8
14
151
152
153
154
171 172





5
3
4
6
11
19
20
18
10
MODEL UNIT ASSEMBLED (WxHxD) UNIT WEIGHT COOKING AREA TEMPERATURE RANGE

31
555  1,339  640 
/ 21 ¾  52 ¾  25 
45.0 
/ 99.0 
  0.08 
3
/ 2.8 
3
  4,650  / 721 
65215°
/ 150420°
