Pitco E14 User Manual

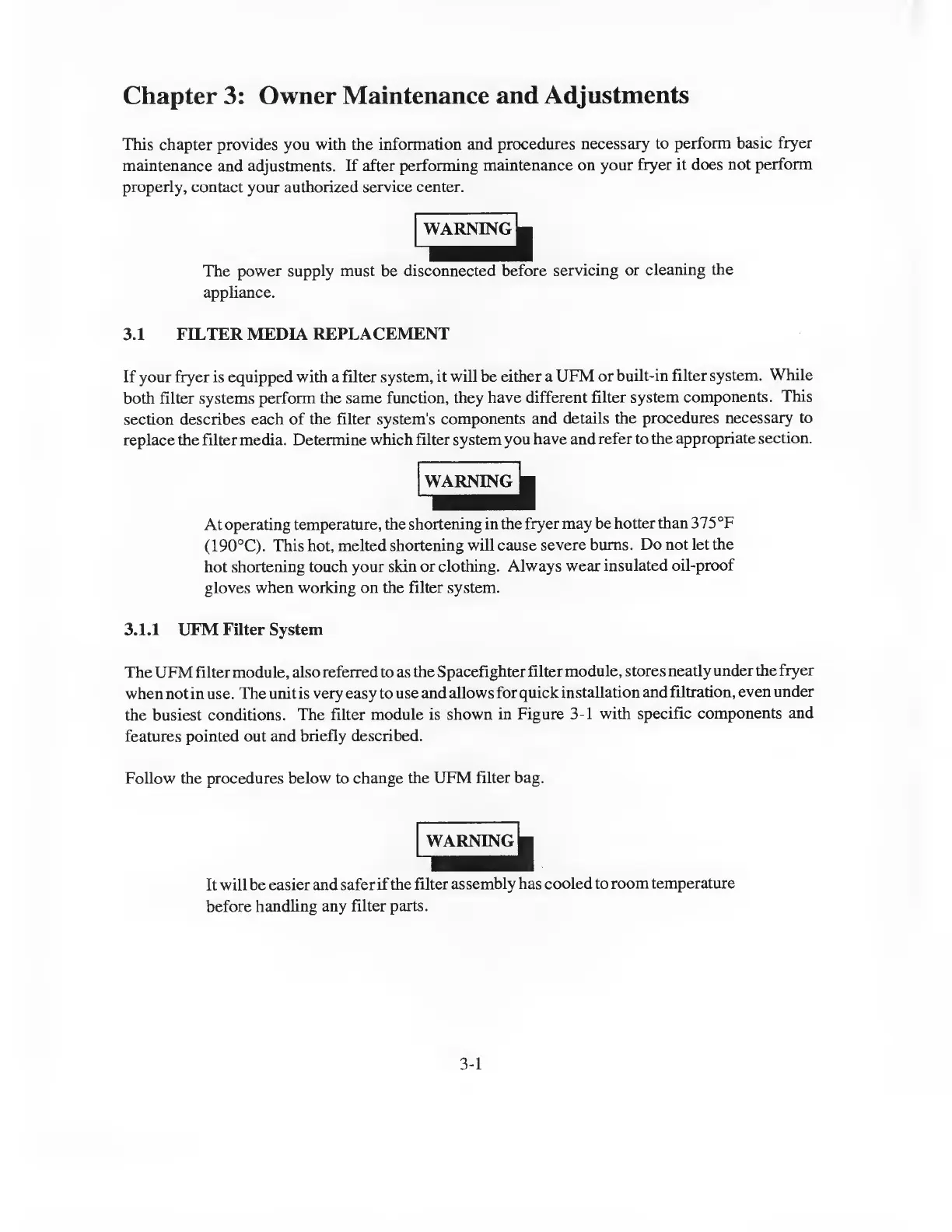

Chapter 3: Owner Maintenance and Adjustments
This chapter provides you with the information and procedures necessary to perform basic fryer
maintenance and adjustments. If after performing maintenance on your fryer it does not perform
properly, contact your authorized service center.
The power supply must be disconnected before servicing or cleaning the
appliance.
3.1 FILTER MEDIA REPLACEMENT
If your fryer is equipped with a filter system, it will be either a UFM or built-in filter system. While
both filter systems perform the same function, they have different filter system components. This
section describes each of the filter system's components and details the procedures necessary to
replace the filter media. Determine which filter system you have and refer to the appropriate section.
At operating temperature, the shortening in the fryer may be hotter than 375°F
(190°C). This hot, melted shortening will cause severe bums. Do not let the
hot shortening touch your skin or clothing. Always wear insulated oil-proof
gloves when working on the filter system.
3.1.1 UFM Filter System
The UFM filter module, also referred to as the Spacefighter filter module, stores neatly under the fryer
when not in use. The unit is very easy to use and allows for quick installation and filtration, even under
the busiest conditions. The filter module is shown in Figure 3-1 with specific components and
features pointed out and briefly described.
Follow the procedures below to change the UFM filter bag.
It will be easier and safer if the filter assembly has cooled to room temperature
before handling any filter parts.
3-1
