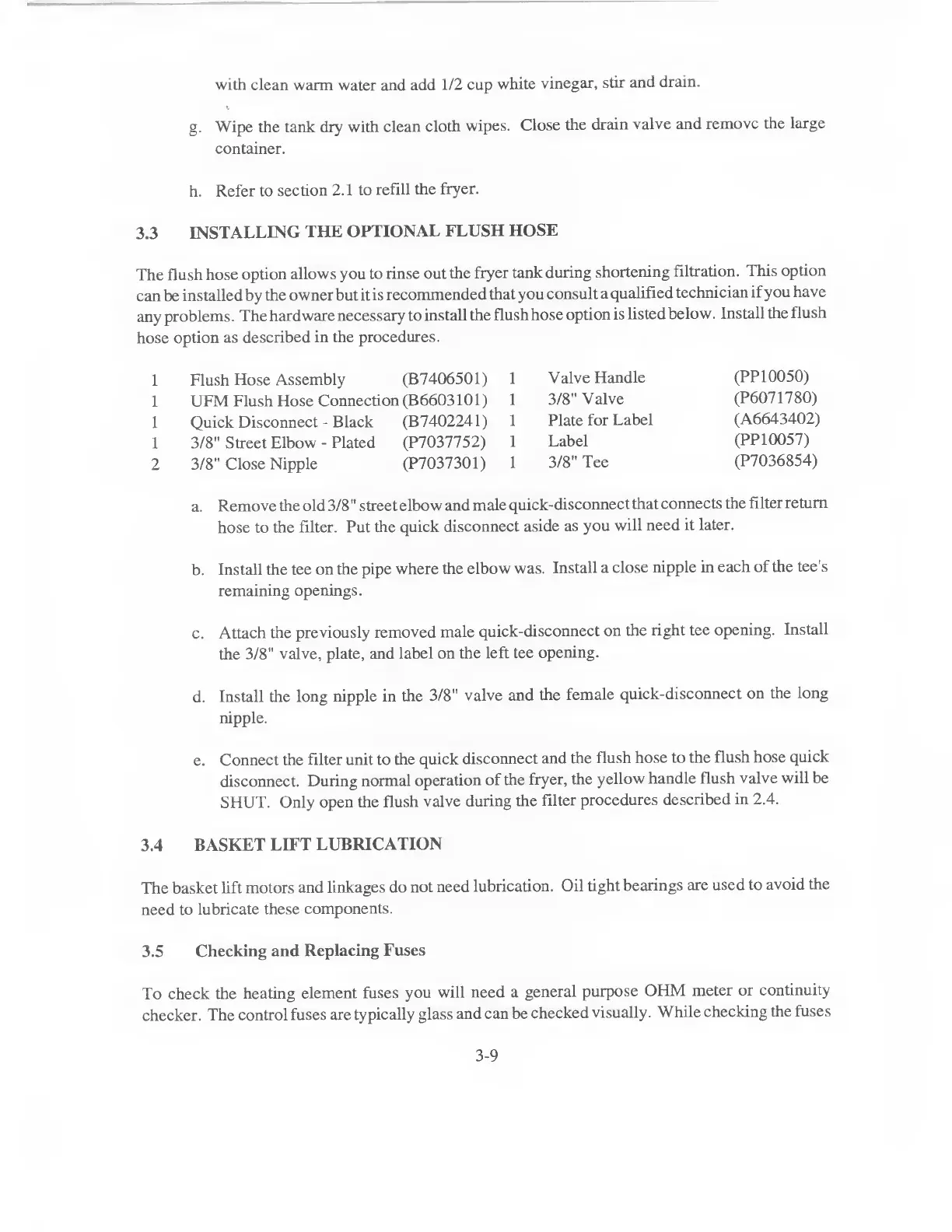

with clean warm water and add 1/2 cup white vinegar, stir and drain.
g. Wipe the tank dry with clean cloth wipes. Close the drain valve and remove the large
container.
h. Refer to section 2.1 to refill the fryer.
3.3 I NSTALLING THE OPTIONAL FLUSH HOSE
The flush hose option allows you to rinse out the fryer tank during shortening filtration. This option
can be installed by the owner but it is recommended that you consult a qualified technician if you have
any problems. The hardware necessary to install the flush hose option is listed below. Install the flush
hose option as described in the procedures.
1 Flush Hose Assembly (B7406501) 1 Valve Handle (PP10050)
1 UFM Flush Hose Connection (B6603101) 1 3/8" Valve (P6071780)
1 Quick Disconnect - Black (B7402241) 1 Plate for Label (A6643402)
1 3/8" Street Elbow - Plated (P7037752) 1 Label (PP10057)
2 3/8" Close Nipple (P7037301) 1 3/8" Tee (P7036854)
a. Remove the old 3/8" street elbow and male quick-disconnect that connects the filter return
hose to the filter. Put the quick disconnect aside as you will need it later.
b. Install the tee on the pipe where the elbow was. Install a close nipple in each of the tee's
remaining openings.
c. Attach the previously removed male quick-disconnect on the right tee opening. Install
the 3/8" valve, plate, and label on the left tee opening.
d. Install the long nipple in the 3/8" valve and the female quick-disconnect on the long
nipple.
e. Connect the filter unit to the quick disconnect and the flush hose to the flush hose quick
disconnect. During normal operation of the fryer, the yellow handle flush valve will be
SHUT. Only open the flush valve during the filter procedures described in 2.4.
3.4 BASKET LIFT LUBRICATION
The basket lift motors and linkages do not need lubrication. Oil tight bearings are used to avoid the
need to lubricate these components.
3.5 Checking and Replacing Fuses
To check the heating element fuses you will need a general purpose OHM meter or continuity
checker. The control fuses are typically glass and can be checked visually. While checking the fuses
3-9
