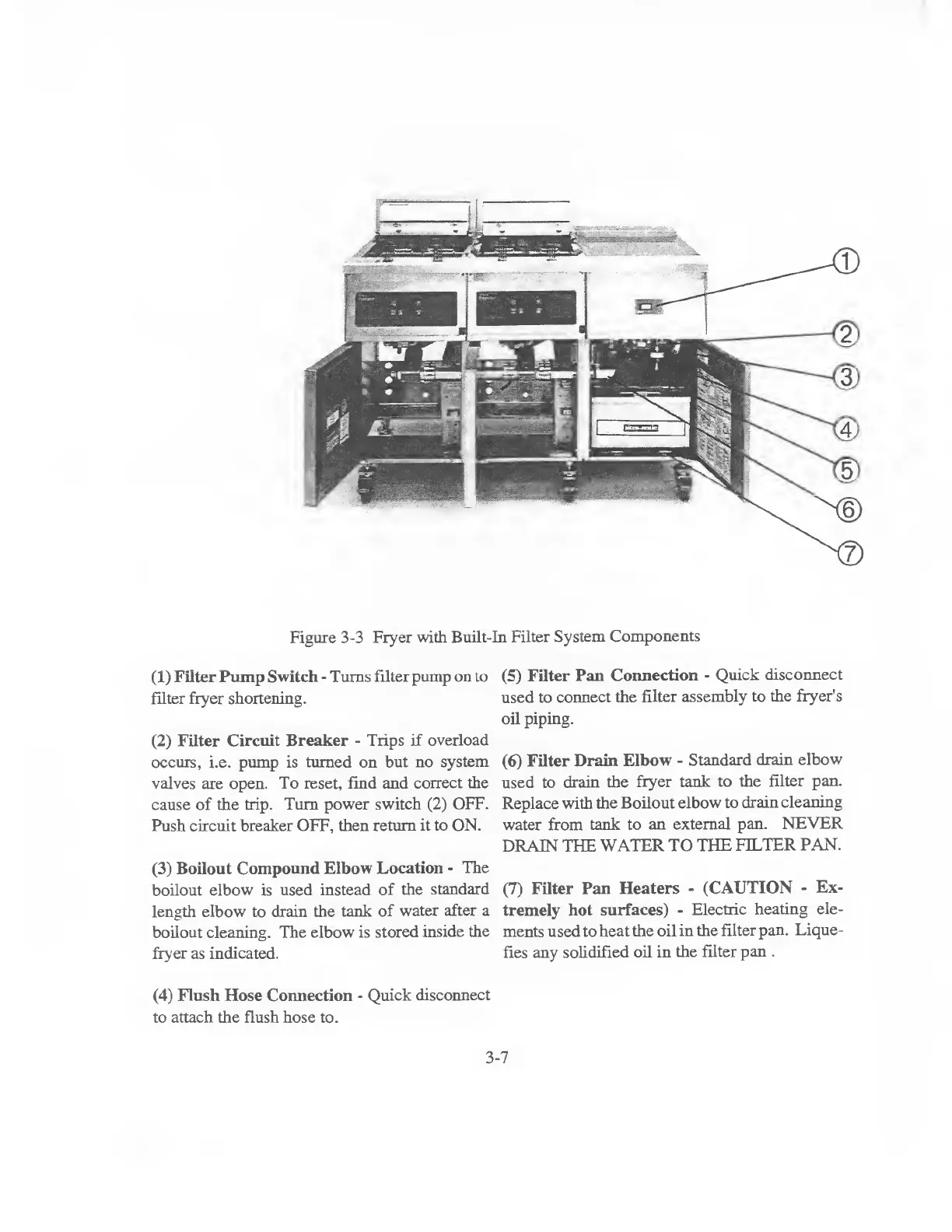

Figure 3-3 Fryer with Built-In Filter System Components
(1) Filter Pump Switch - Turns filter pump on to
filter fryer shortening.
(2) Filter Circuit Breaker - Trips if overload
occurs, i.e. pump is turned on but no system
valves are open. To reset, find and correct the
cause of the trip. Turn power switch (2) OFF.
Push circuit breaker OFF, then return it to ON.
(3) Boilout Compound Elbow Location - The
boilout elbow is used instead of the standard
length elbow to drain the tank of water after a
boilout cleaning. The elbow is stored inside the
fryer as indicated.
(5) Filter Pan Connection - Quick disconnect
used to connect the filter assembly to the fryer's
oil piping.
(6) Filter Drain Elbow - Standard drain elbow
used to drain the fryer tank to the filter pan.
Replace with the Boilout elbow to drain cleaning
water from tank to an external pan. NEVER
DRAIN THE WATER TO THE FILTER PAN.
(7) Filter Pan Heaters - (CAUTION - Ex¬
tremely hot surfaces) - Electric heating ele¬
ments used to heat the oil in the filter pan. Lique¬
fies any solidified oil in the filter pan .
(4) Flush Hose Connection - Quick disconnect
to attach the flush hose to.
3-7
