(1) Fdter Pan - Holds the oil from the fry tank.
(2) Pick-Up Tube - ConnedS filter envelope
assembly to piping. Inoorporates a strainer to
protect filter pump from grit in the event of
envelope failure.
(3) FOter Assembly CoDDector - An insulated
handle covers the filter pan assembl y connection.
This connection separates the filter pick-up as-
sembly from the filter piping for removing the
filter pan for cleaning.
(4) FOter Media Connector -Connects the filter
pick-up tube to the filter media rack. An internal
screen keeps debris out of the filter pump.
c: @
,

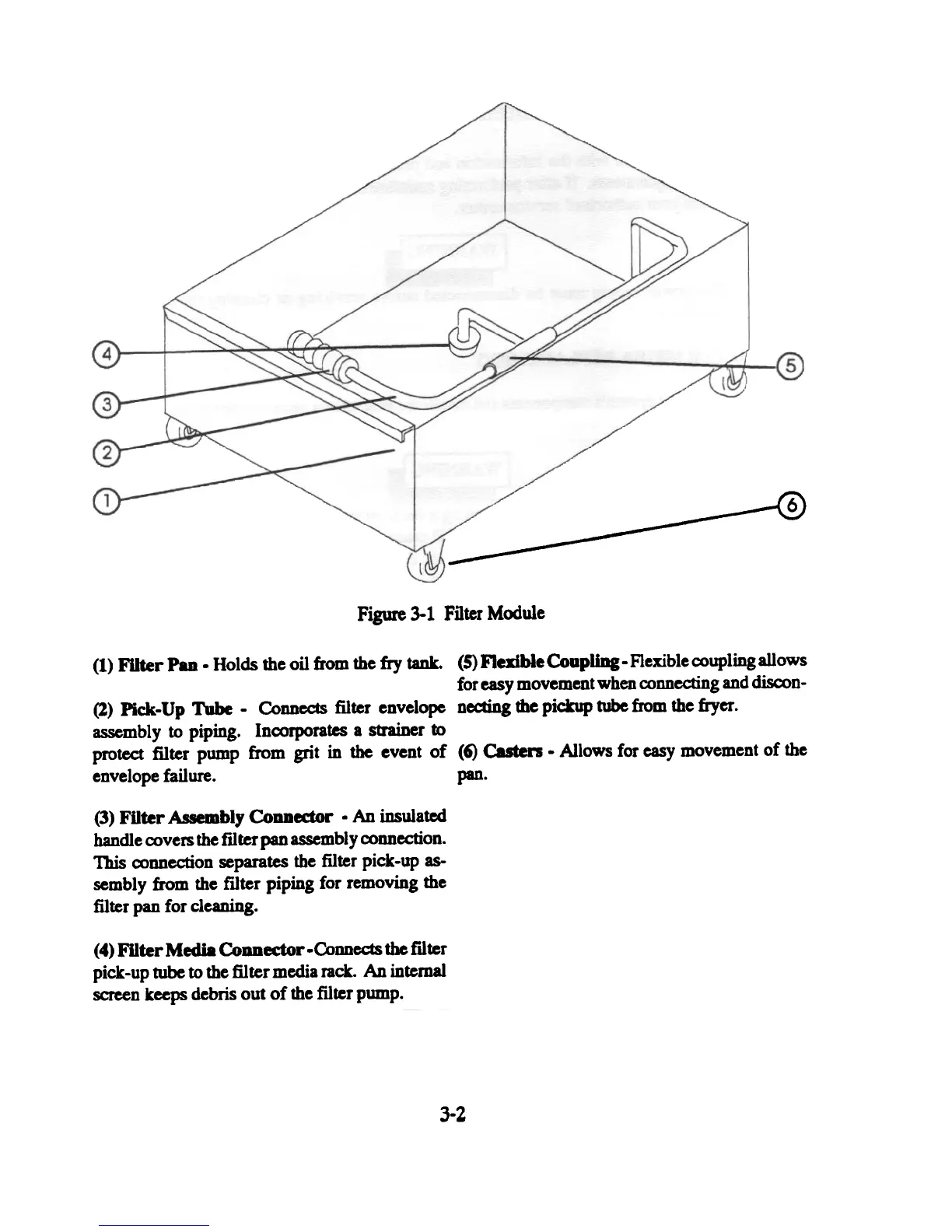

Figure 3-1 Filter Module
(5) Flexible Coupling. Flexible coupling allows
for easy movement when connecting and discon-
necting the pickup tube from the fryer.
(6) Casters . Allows for easy movement of the
pan.
3-2
