Pitco MGII - Page 31

31
L22-236 Rev 0 (04/03)

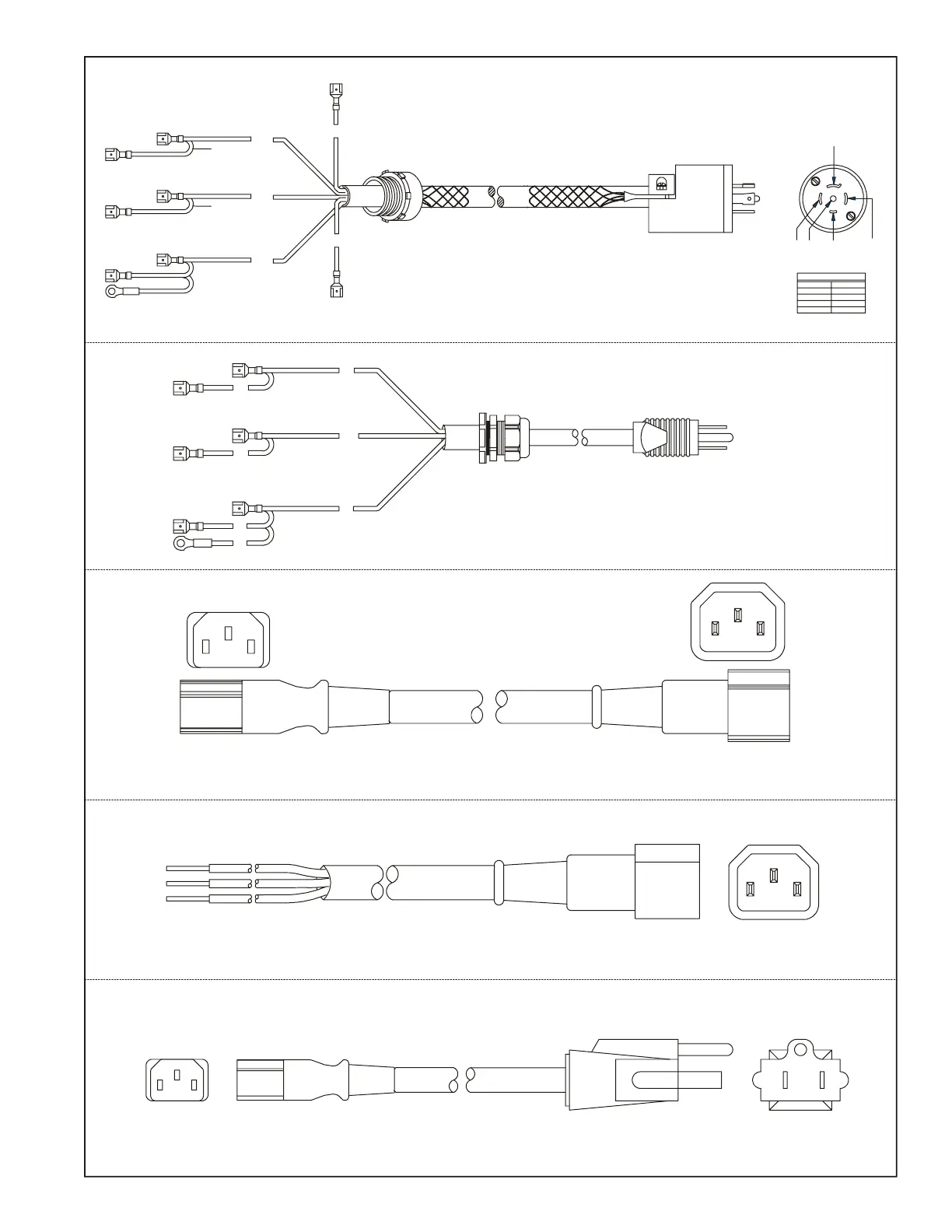

Figure 6
60128403 CORD, M-F JUMPER IEC-320X34”
G
NL
60133901 CORD,MALE IEC-320 16-3 AWG
60133902 CORD,16-3 W/IEC320 MALE 66"
GND
NL
GND
N
L
60128501 CORD, FEMALE IEC/NEMA 5-15
B6751701 CORD, NO HOOD POWER
60137201 CORD, 5 WIRE
TERMINATIONS
W
XG Y Z
WWHT
NEMA L20-21P
120/20 8V, 3PH, 20A
XBLK
YRED
ZORG
GGRN
WHT
GRN
ORG
RED
BLK
J102-N
J102-G
J102-L
K6
K6
GND
J101-G
J101-L
J102-G
J102-L
G
BK
J102-N
J101-N
W
W
BK
G
G
