L22-393 R0 Page 63

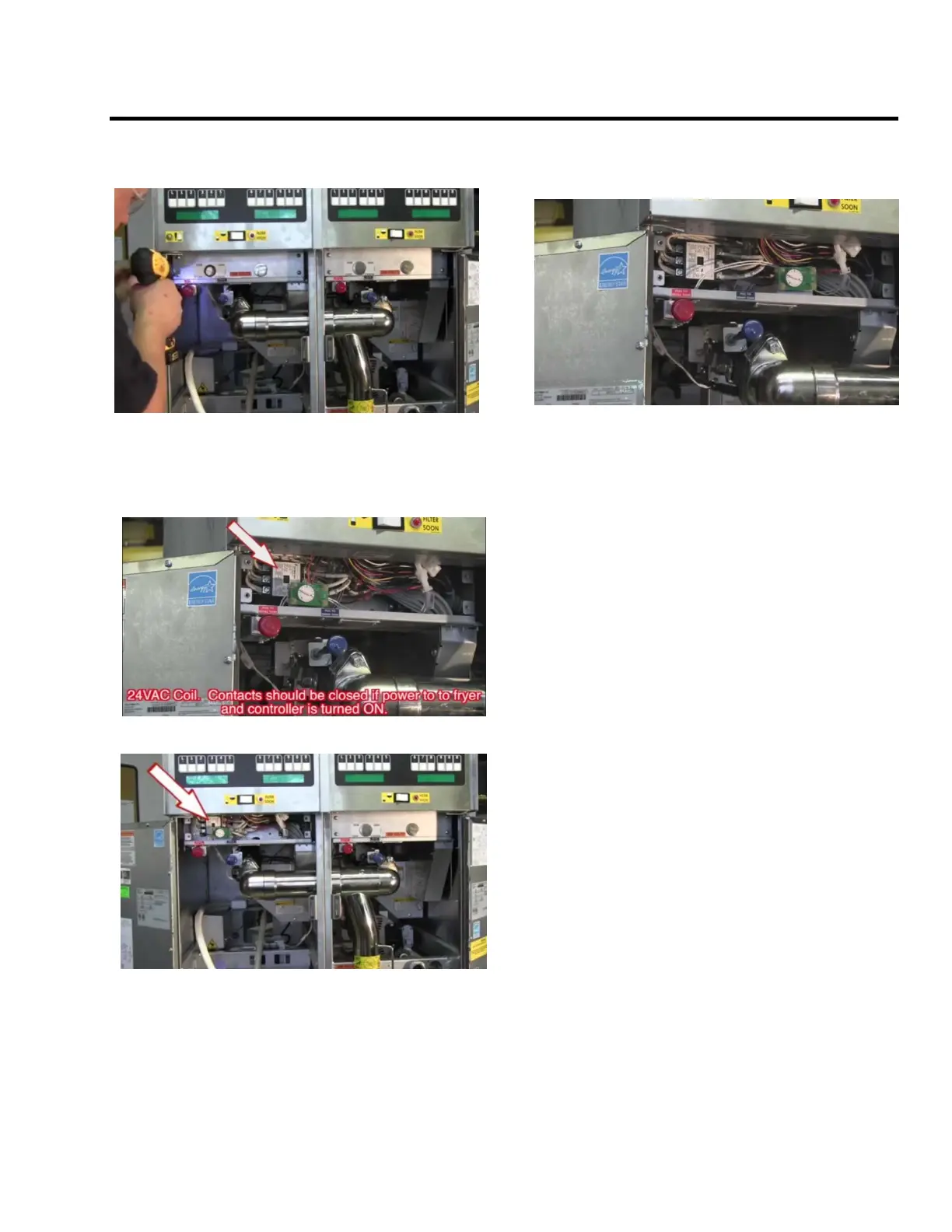

19 ReplacingHighLimit(SideOn)Contactor
1. Open front door and remove four (4) phillips
screws on the access panel to gain access to
the latching contactor.
2. Models with cook dial selector will need to
remove before you can gain excess to the high
limit contactor.
3. Remove four (4) using a Philips screwdriver
and move to the side.
4. Replace high limit contactor by following
steps 1 through 3 in reverse.
