L22-393 R0 Page 73

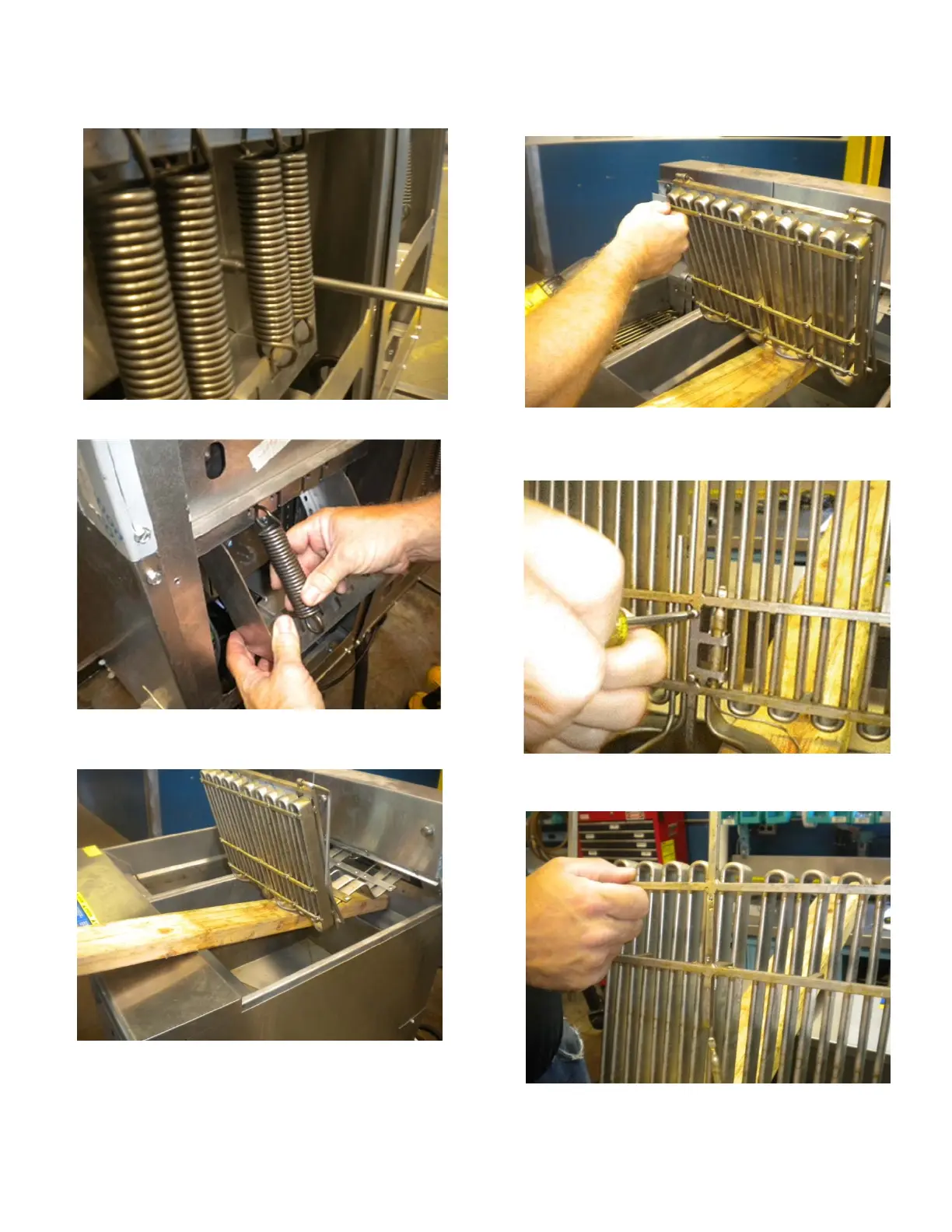

5. Remove six (6) screw, three on the right and
three on the left.
6. Remove four (4) springs and spring housing.
7. Hold element rack with block of wood.
1.
2.
8. Remove fifteen (15) screws with phillips
screw driver on element rack bottom.
9. Remove two (2) screws using a phillips
screw driver to remove thermal couple.
10. Remove element rack.
To Next Page
