www.pivotcycles.com info@pivotcycles.com
1.877.857.4868
7

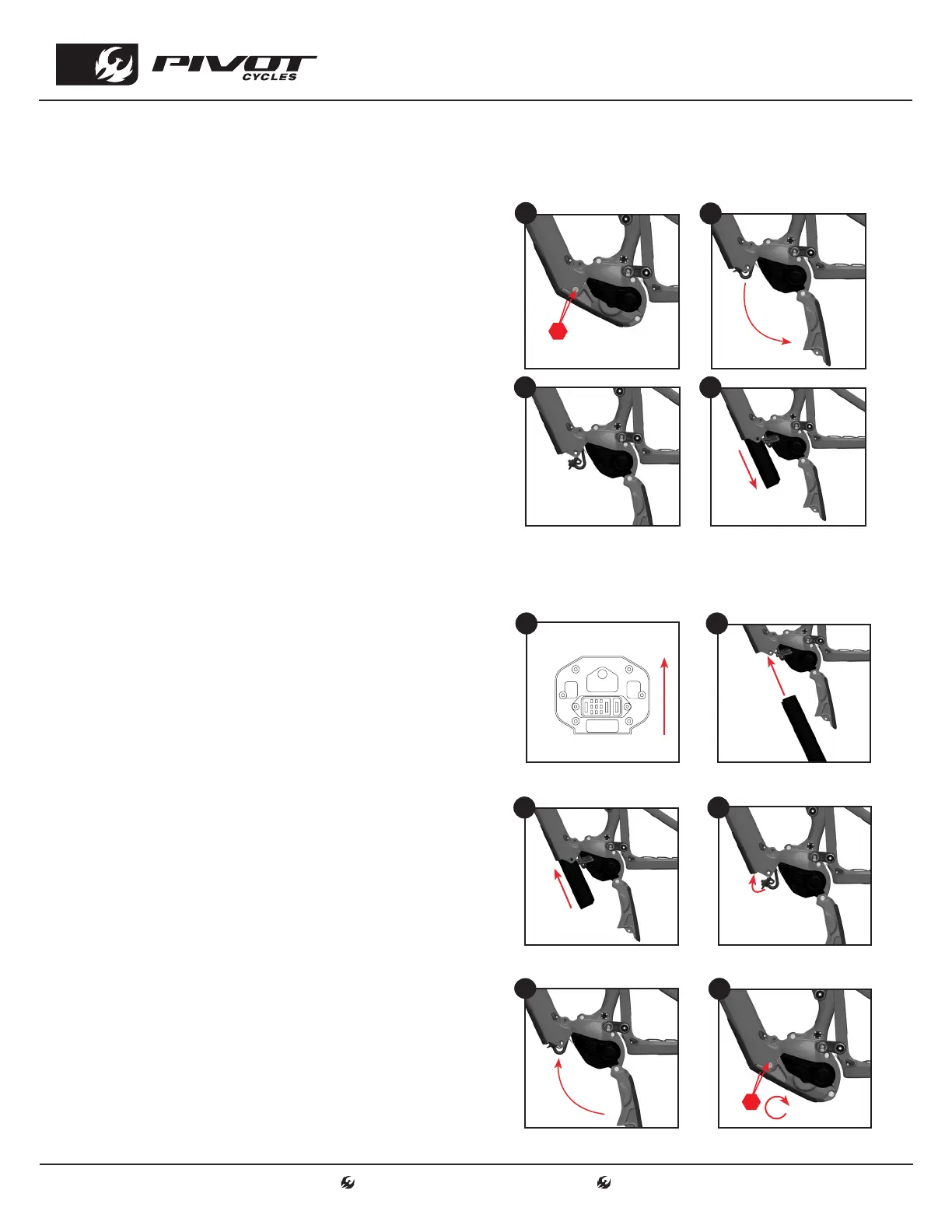

Removing the Battery
• The battery may need to be removed to swap batteries or to charge the battery if there is no power
supply near the bike.
NOTE: If the bike is sitting level on its wheels the battery
will touch the ground before it is removed from the
frame. Using a stand to secure the frame and elevate
the rear wheel is recommended.
1. Using a M5 hex wrench, remove the front two bolts
securing the skid plate to the frame. (fig. 1)
2. Rotate the cover toward the rear of the bike. (fig. 2)
3. Carefully remove the power cord from the battery. (fig. 3)
4. Use both hands to grip the battery and gently guide
it down and out of the frame. (fig. 4)
5. If you are not using a stand to hold the rear wheel
off the ground you many need to tip the bike to the
non-drive side or lift it up to remove the battery
completely from the frame.
2
3
4
1
5
CHARGING
NOTE: Installing the battery can be easier with the bike
upside-down or on its side. Using a stand to secure the
bike upside-down is recommended.
1. Check the orientation of the battery before installing
the battery. (fig. 5)
2. Carefully route the battery back into the downtube using
both hands. (fig. 6)
3. Apply upward pressure on the battery to fully seat
the battery into the terminal block (fig. 7)
4. Plug the power cord back into the battery. (fig. 8)
5. Close the skid plate. (fig. 9)
6. Apply Loctite 243 or an equivalent to the thread of
the skid plate bolts.
7. Re-install the bolts and torque them to 13 Nm. (fig.10)
Installing the Battery
• To install the battery, reverse the removal procedure from above.
5
13Nm
5
6
7
8
9
10
