Pivot SHUTTLE LT - COMPONENT SCHEMATICS AND WIRING; E-Bike System Component Diagrams

www.pivotcycles.com info@pivotcycles.com
1.877.857.4868
12

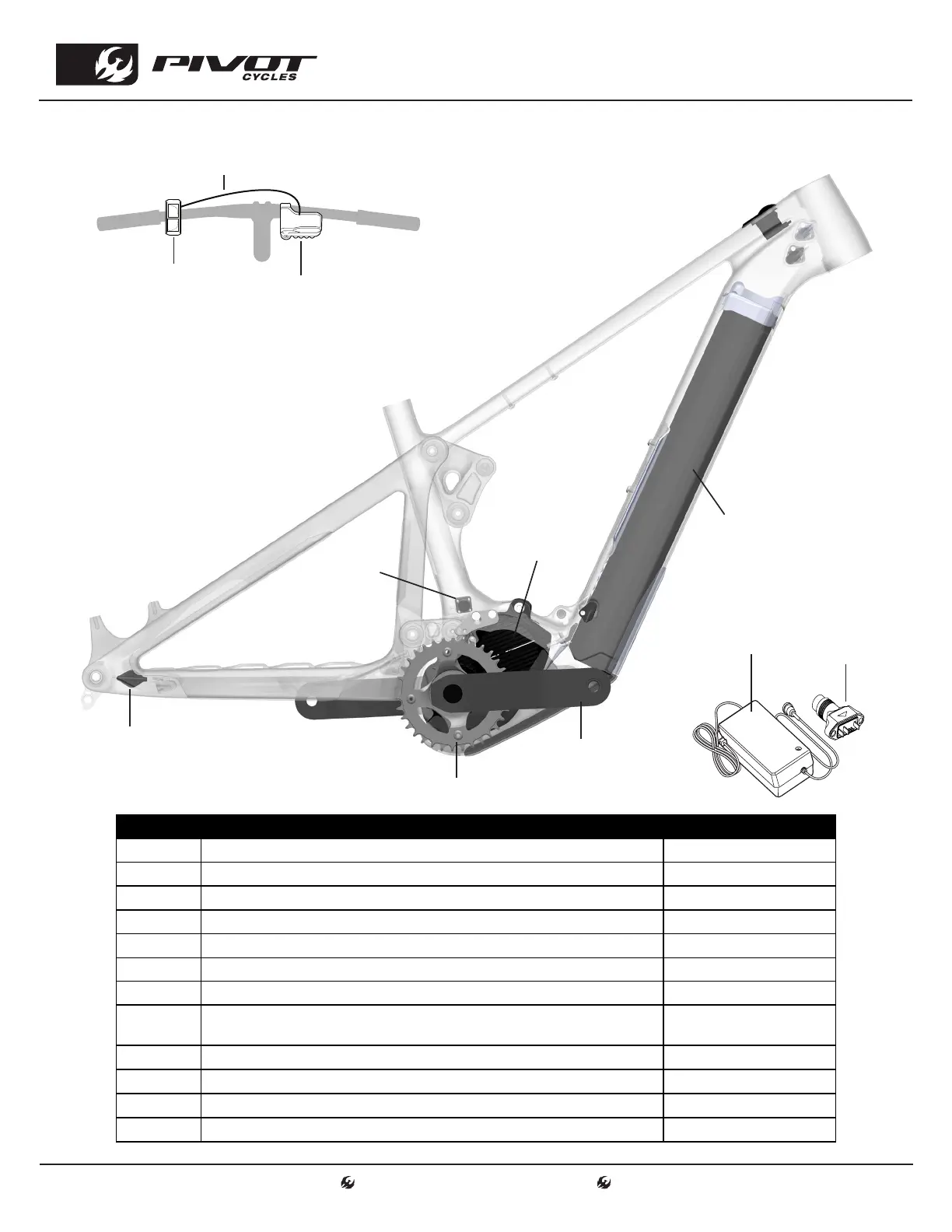

Shimano STEPS E-bike System Schematic
LETTER PART DESCRIPTION PART NAME
A Cycle Computer SC-EM800A
B Assist Switch SW-EM800-L
C Front Chainring SAMOX NWP201-34T
D Crank Arm FC-M8150
E Drive Unit DU-EP800
F Speed Sensor EW-SS301
G Battery DARFON 756 Wh
H
Battery Charger (US)
Battery Charger (EU)
DARFON BK.01240.304
DARFON BK.01240.301
I Battery Charger Adapter (For Off-the-bike Charging - Sold Separately) DARFON 5J.E4C0G.0E1
J Charging Port and Cable DARFON 5J.E4C0G.0C1
K Assist Switch E-Tube Wire (400mm) EW-SD400
L Cycle Computer E-Tube Wire (S/M/L 1000mm, XL 1200) Not Shown Above EW-SD1000 / EW-SD1200
SCHEMATICS
(C)
(D)
(E)
(F)
(G)
(A)
(B)
(K)
(H)
(I)
(J)
