Shuttle LT Wiring Diagram

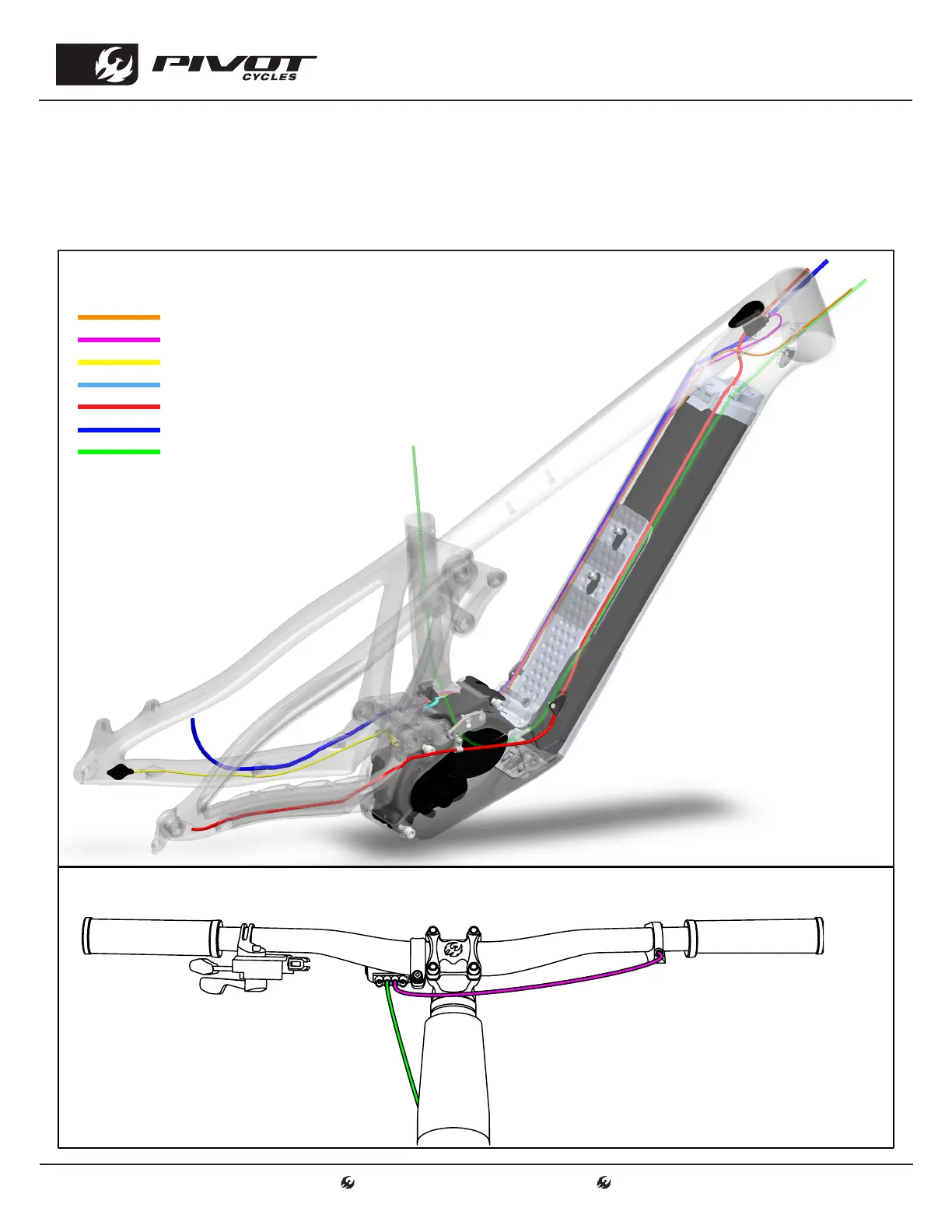

• The diagrams below will help illustrate how the wires are to be routed through the internal cable guides
and how the handlebar switches are attached to the cycle computer.
• The routing shown below will help minimize the likelihood of pinching a wire when removing and installing
the motor for maintenance purposes.
SCHEMATICS
Cycle Computer Wiring Diagram
Frame Wiring Diagram
-----------------
Cycle Computer Wire / EW-SC1000 (1000mm)
*XL frame size / EW-SC1200 (1200mm)
-----------------
Assist Switch Wire / EW-SC400 (400mm)
Cycle Computer Wire
Power Button Wire
Speed Sensor Wire
Charging Port Wire
Shift Housing
Brake Line
Dropper Post Housing
To Next Page
