6

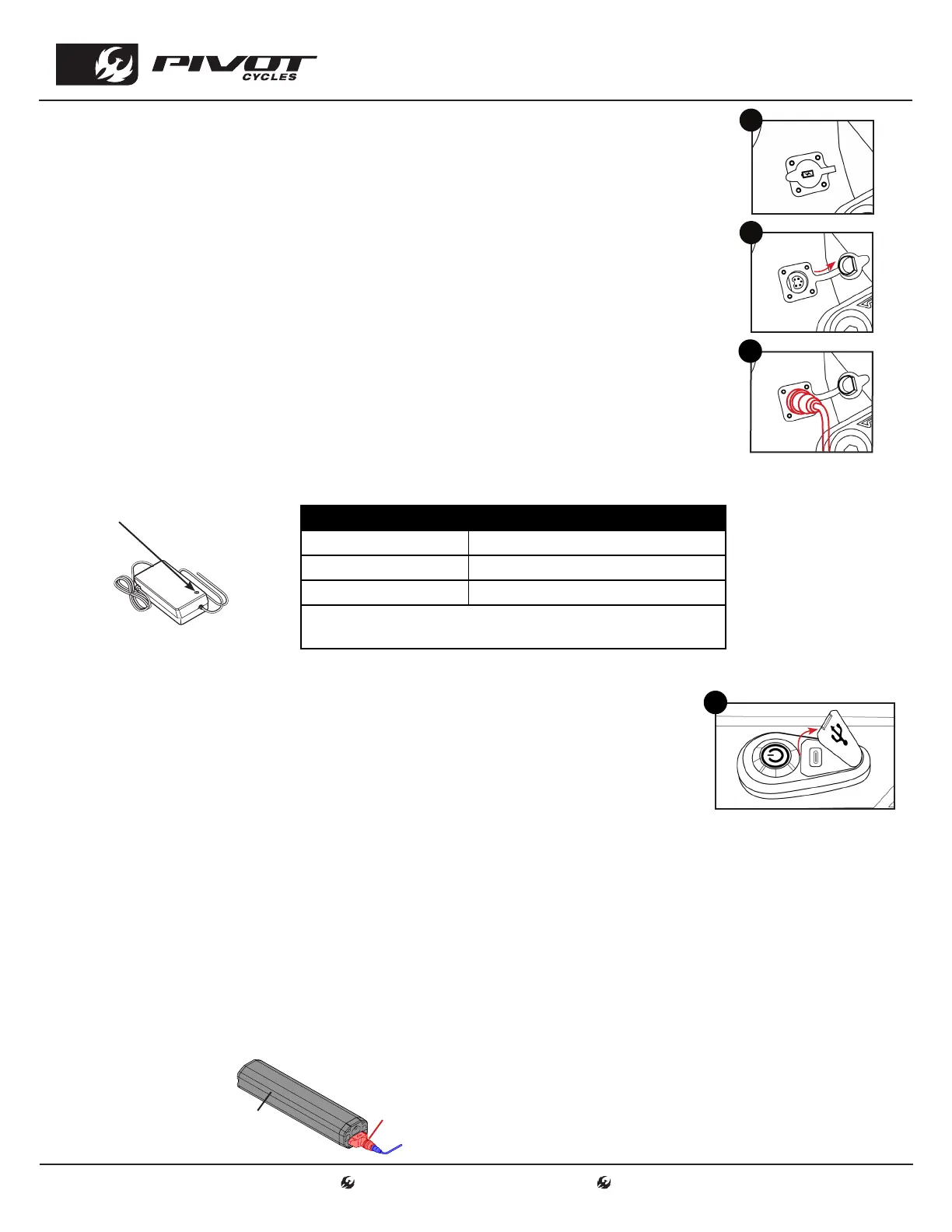

CHARGING
Charger LED Lamp
• After charging has started, the LED lamp on the charger lights up.
LED INDICATOR DESCRIPTION
Lit Up (GREEN) Battery Charging Complete
Lit Up (RED) Battery Charging
Flashing (ORANGE)* Charging Failure
* Remove AC Power and plug-in again. If symptoms still
occur take your bike and charger to a authorized dealer.
Charging the Battery on the Bike
NOTE: The battery does not come fully charged and must be charged
completely before the first use.
1. Locate the rubber charging port on the non-drive side of the seat tube. (fig. 1)
2. Pull back the sealing cover to access the charging terminal. (fig. 2)
3. Locate the alignment pin in the charger. Insert the charging cable into the
charging terminal, ensuring the cable and terminal are properly aligned. (fig. 3)
4. The display will illuminate briefly when the charger is properly connected.
The charger LED lamp will glow red while charging, and glow green when
charging is complete.
5. When done charging, remove the cable from the terminal and close the sealing
cover.
1
2
3
Charger LED Lamp
USB-C Charging on the Shuttle LT
• The power button also houses a USB-C port for accessory charging.
• Lift up on the USB cover to access the charging port. (fig. 4)
• When not using the charging port replace the cover.
4
Charging the Battery off the Bike
1. Remove the battery from the bike. Instructions for this procedure can be found below.
2. Look for the alignment pin in the charger and insert the charging cable into the charging adapter,
ensuring the cable and adapter are properly aligned.
3. Secure the cable to the adapter.
4. Orient the adapter terminals with the terminal block on the battery and plug the adapter into the
battery.
5. The charger LED lamp will glow red while charging, and glow green when charging is complete.
The current charge level will be displayed on the battery LEDs just above the terminal block on the
battery.
6. When done charging, remove the adapter from the battery terminal block.
Battery
Adapter (5J.E4C0G.0E1 - Sold Separately)
Charger
