12 ATR 421 - User manual

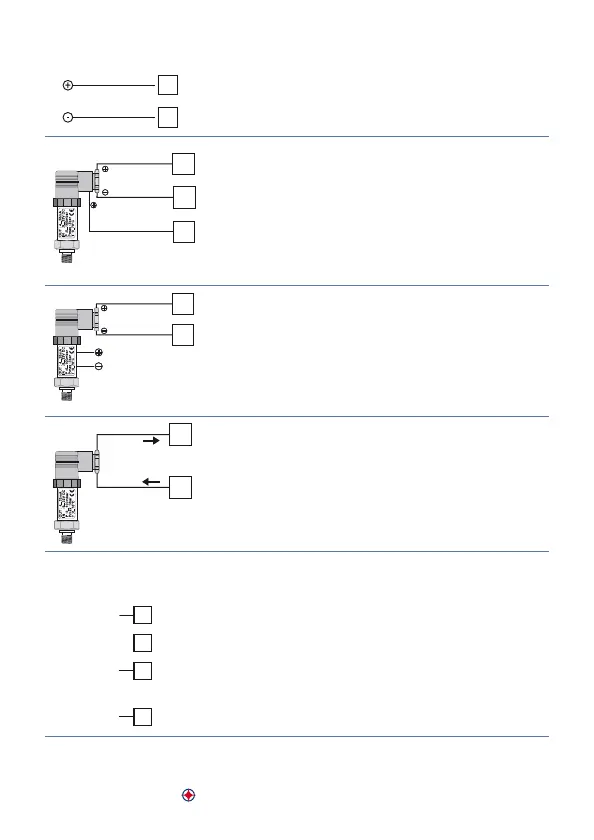

Examples of connection for linear input AI1
12
11
0...10V
For linear signals 0….10V
Comply with polarity
PRESSURE TRANSMITTER
SENSORE DI PRESSIONE
17
12
11
B
C
A
4...20mA
For linear signals 0/4….20mA with three-wires
sensors
Comply with polarity
C = Sensor output
B = Sensor ground
A = Sensor supply (24Vdc/25mA)
PRESSURE TRANSMITTER
SENSORE DI PRESSIONE
External Supply
Alimentazione esterna
12
11
C
B
4...20mA
For linear signals 0/4..20mA with external power
supply for sensor
Comply with polarity
C = Sensor output
B = Sensor ground
SENSORE DI PRESSIONE
PRESSURE TRANSMITTER
11
17
C
A
4...20mA
For linear signals 0/4..20mA with two-wires
sensors
Comply with polarity
C = Sensor output
A = Sensor supply (24Vdc/25mA)
Digital input (ATR421-14ABC)
19
20
17
+24V
DI
(PnP)
0V
Digital input (parameter dGt.i.).
Close terminal “DI” (19) on terminal “+24V” (17)
to activate digital input.
