Pixsys ATR226 User Manual

User manual - ATR227 - 9

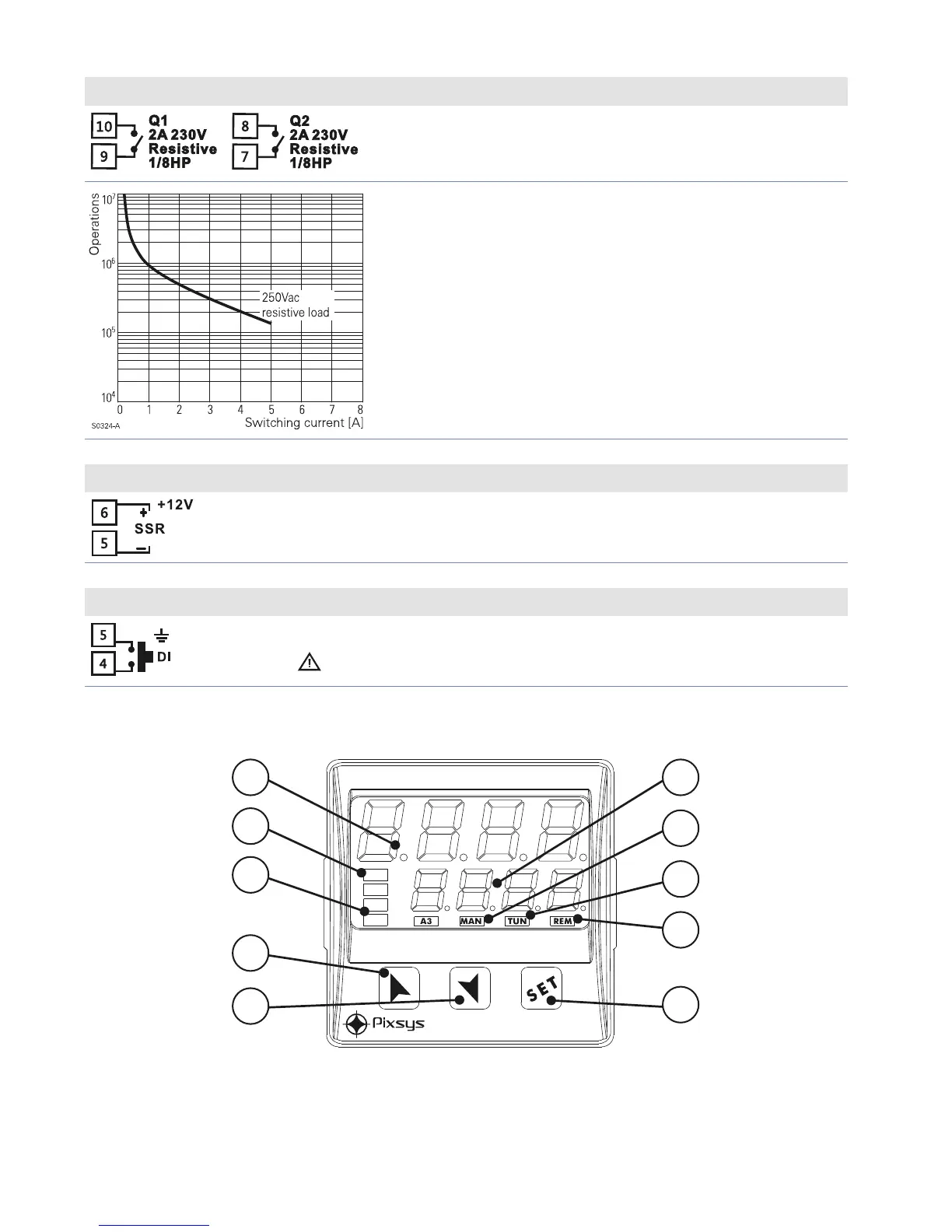

Relay Q1 - Q2 Output
Contacts capacity 5 A / 250 V~ resistive loads.
NB: see graphic below.
Electrical endurance Q1 / Q2.
2 A, 250 Vac, resistive load, 10
5
operations.
20/2 A, 250 Vac, cosφ = 0.3, 10
5
operations.
SSR output
SSR command output 12 V / 30 mA.
Digital Input
Digital input according to parameter G*WL .
To activate the digital input, shortcircuit pins 4 and 5.
6 Display and Keys Functions
A1
C2
C1
A2
1
3
4
8
9
2
5
6
7
10

Pixsys ATR226 Specifications

General

Brand	Pixsys
Model	ATR226
Category	Controller
Language	English
