User manual - HMI Series - 7
4 Wiring connections
This device has been designed and manufactured in conformity to Low Voltage Directive 2006/95/EC,
2014/35/EU (LVD) and EMC Directive 2004/108/EC, 2014/30/EU (EMC). For installation into industrial
environments please observe following safety guidelines:
• Separate control lines form power wires;
• Avoid proximity of remote control switches, electromagnetic contactors, powerful engines and use
specific filters;
• Avoid proximity of power groups, especially those with phase control;
• It is strongly recommended to install adequate mains filter on power supply of the machine where
the controller is installed, particularly if supplied 230 VAC. The controller is designed and conceived
to be incorporated into other machines, therefore CE marking on the controller does not exempt
the manufacturer of machines from safety and conformity requirements applying to the machine
itself.
5 Technical data
5.1 Main features
TD410 TD710 TD810 TD820
Power supply voltage 12 ÷ 24 VDC ± 10%
Consumption (typical
use with 2 USB devices)
7,5 VA 13 VA 16 W 15 W
Temperature range 0..50°C
Humidity range 10..90% (without condensation)
5.2 Hardware features
CPU ARM® CORTEX™ - A8 @1.0GHz
RAM 512 MB DDR3
eMMC 4GB
5.3 Touch LCD: 4 wires resistive
TD410 TD710 TD810 TD820
Resolution
4.3” TFT
480 x 272
7” TFT
800 x 480
10” TFT
800 x 600
12” TFT
1280 x 800
Colors 65K (16 bit) 65K (16 bit) 65K (16 bit) 65K (16 bit)
Back-lighting LED 400 cd/m2 LED 280 cd/m2 LED 320 cd/m2 LED 220 cd/m2
Back-lighting duration* 50000 h Typ @ 25°C** 30000 h Typ @ 25°C**
Lifetime** 17 10
* Brightness reduction to the 80% of default setting
** Functioning years per 8 hours / day

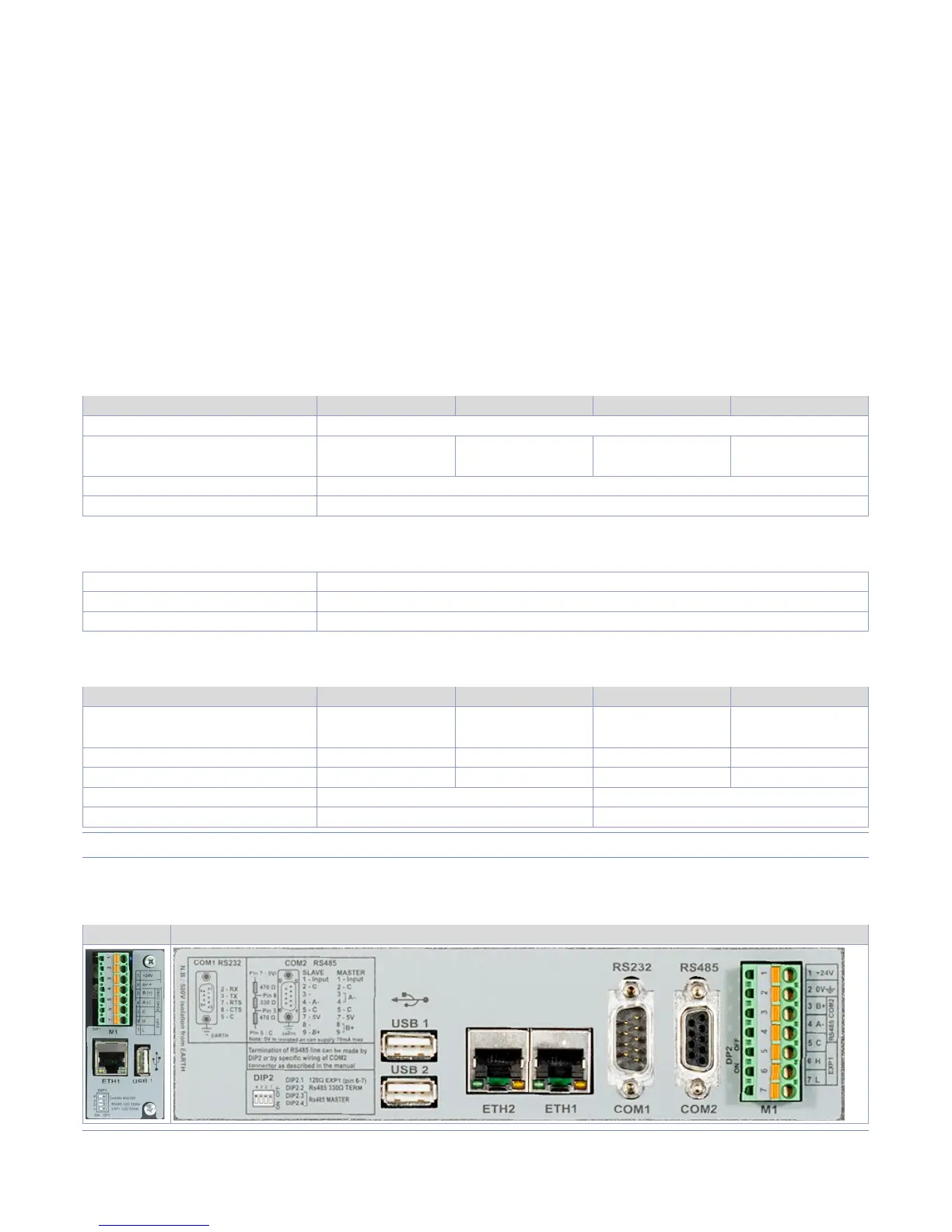

6 Communication interfaces
TD410 TD710*** - TD810 - TD820
*** ETH2 not available on this model.
