User manual - HMI Series - 9

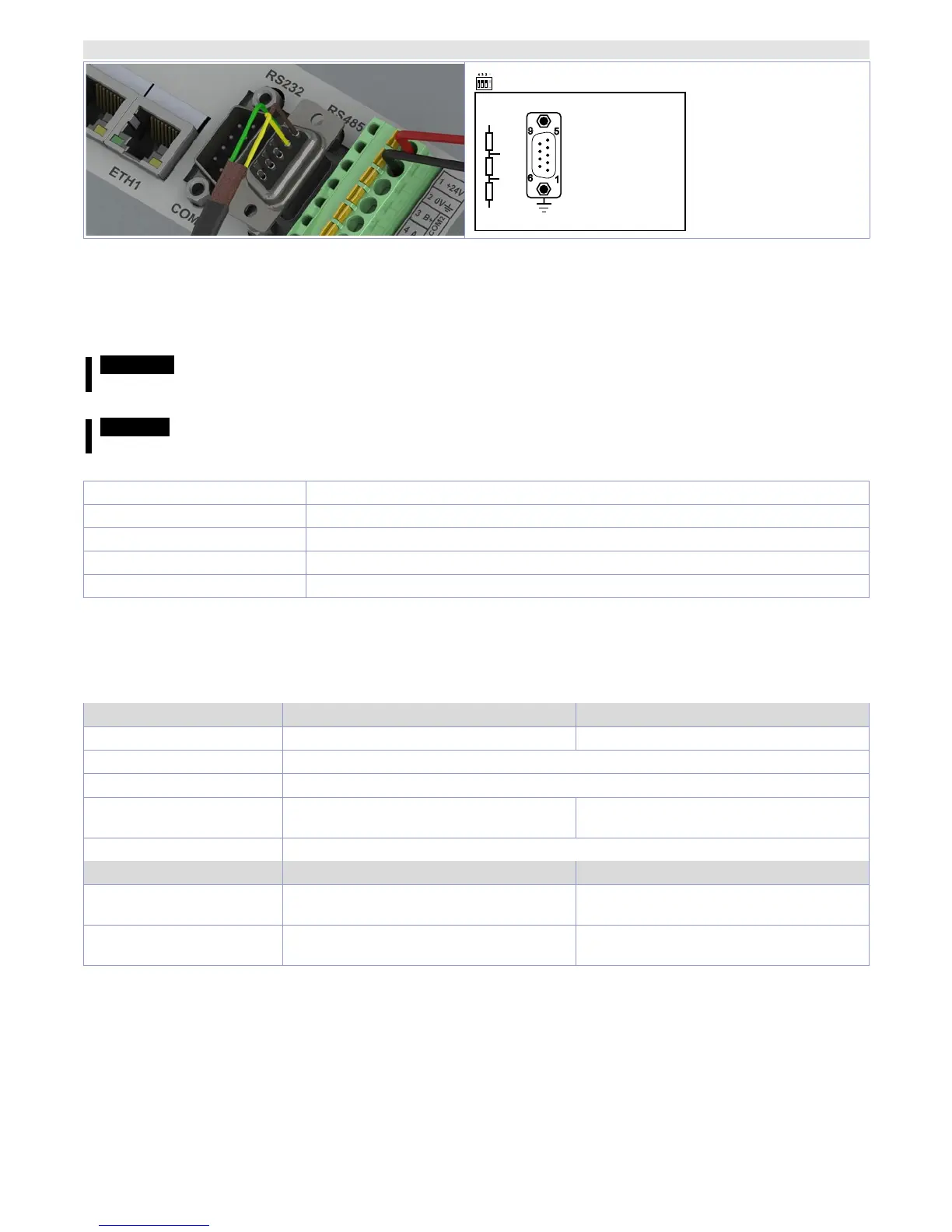

6.3.c Using RS485 / COM2 SLAVE on DB9 (No available for TD410)
1 - Input
2 - C
3 -
4 - A-
5 - C
7 - 5V
8 -
9 - B+
1
5
9
6
Pin 5 : C
Pin 8
Pin 7 : 5Vi
Pin 3
470 Ω
470 Ω
330 Ω
SLAVE
COM2 RS485
EARTH
Note: 5V Is isolated an can supply 70mA max
OFFON
DIP2 2,3,4 to off
6.4 USB interfaces
The HMI comes equipped with a USB 2.0 (Universal Serial Bus) host controller with multiple USB
interfaces accessible externally for the user.
Warning! Peripheral USB devices can be connected to the USB interfaces on this device. Due to the
large number of USB devices available on the market, Pixsys cannot guarantee their performance.
Caution! Because this interface is designed according to general PC specifications, extreme care
should be exercised with regard to EMC, cable routing, etc.
Type USB 2.0
Design Type A
Transfer rate Low speed (1.5 Mbit/s), Full speed (12 Mbit/s), High speed (480 Mbit/s)
Current-carrying capacity Max. 0,8 A (total of all USB ports)
Cable length Max. 3 m (without hub)
7 Ethernet interface
7.1 Technical data
This Ethernet controller is connected to external devices via the system unit.
Ethernet 1 interface (ETH1) TD410 - TD710 TD810 - TD820
Number of ports 1 2
Controller LAN8710A
Cabling S/STP (Cat 5e)
Transfer rate 10/100 Mbit/s
10/100 Mbit/s ETH1-ETH2 to CPU Link
10/100/1000 Mbit/s ETH1-ETH2 link
Cable length Max. 100 m (min. Cat 5e)
LED
Green Link
On = Gigabit connection
Off = 10/100 Mbit connection
Yellow 10/100 Mbit Activity
On =Link
Blink = Activity (data transfer)
