3.1 Desktop Installation
To install the LCD switch on desktop, simply follow the following steps. The switch
shown on this page and thereafter is just a representation of the said switch.
Step 1: Attach the rubber feet to the recessed areas on the bottom of the LCD
switch, as shown in Figure 3-1.
4 6 82
1 3 5 7
12 14 1610
9 11 13 15
20 22 2418
17 19 21 23
FGSW-2622VHP
Menu (5 sec)
Enter
Back
PWR
Up
Down
Gigabit
25
27
26
28
PoE
1
2
5
6
9
10
13
14
17
18
21
22
3
4
7
8
11
12
15
16
19
20
23
24
PoE In-Use
ACTLNK
26
25
28
27
ACTLNK
10/100
1000

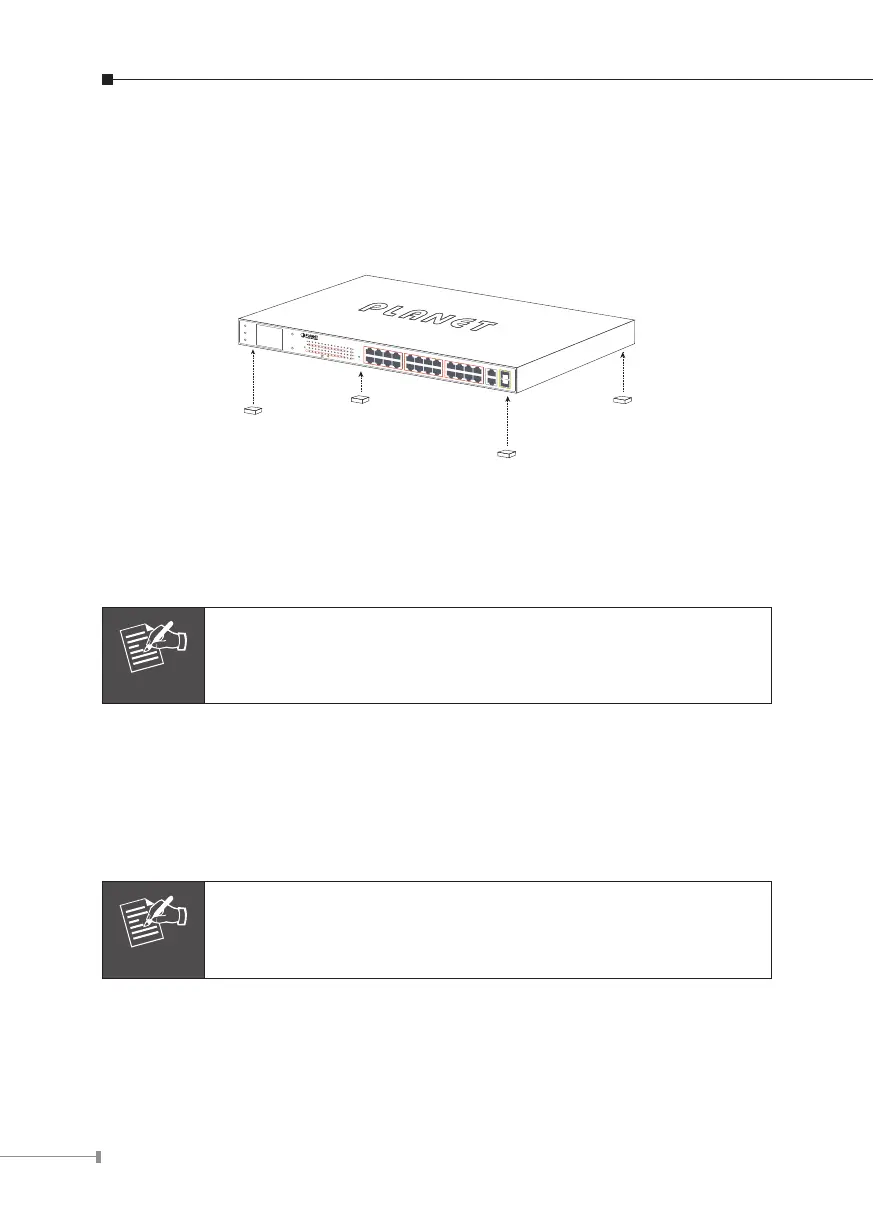

Figure 3-1: Attaching the Rubber Feet to the LCD Switch
Step 2: Place the LCD switch on desktop near an AC power source.
Step 3: Keep enough ventilation space between the LCD switch and the
surrounding objects.
Note
When choosing a location, please keep in mind the environmental
restrictions discussed in Chapter 1, Section 4, under Specifications.
Step 4: Connect your LCD switch to 802.3af/at/bt complied power devices (PDs)
and other network devices.
A. Connect one end of a standard network cable to the 10/100BASE-TX
RJ45 ports on the front panel of the LCD switch.
B. Connect the other end of the cable to the network devices such as
printer servers, workstations or routers, etc.
Note
Connection to the switch requires UTP Category 5, 5e, 6 network
cabling with RJ45 tips.
Step 5: Supply power to the LCD switch.
A. Connect one end of the power cable to the LCD switch.
B. Connect the power plug of the power cable to a standard wall outlet.
When the LCD switch receives power, the power LED should remain solid green.
