29
Note
It is recommended to use PLANET SFP on the LCD switch. If you
insert an SFP transceiver that is not supported, the LCD switch will
not recognize it.
1. Before we connect the LCD switch to the other network device, we have to
make sure both sides of the SFP transceivers are with the same media type, for
example, 1000BASE-SX to 1000BASE-SX; 1000BASE-LX to 1000BASE-LX.
2. Check whether the ber-optic cable type matches with the SFP transceiver
requirement.
To connect to 1000BASE-SX SFP transceiver, please use the multi-mode ber
cable with one side being the male duplex LC connector type.
To connect to 1000BASE-LX SFP transceiver, please use the single-mode ber
cable with one side being the male duplex LC connector type.
Connecting the Fiber Cable
1. Insert the duplex LC connector into the SFP transceiver.
2. Connect the other end of the cable to a device with SFP transceiver installed.
3. Check the LNK/ACT LED of the SFP slot on the front of the LCD switch.
Ensure that the SFP transceiver is operating correctly.
Removing the Transceiver Module
1. Make sure there is no network activity anymore.
2. Remove the ber-optic cable gently.
3. Lift up the lever of the MGB module and turn it to a horizontal position.
4. Pull out the module gently through the lever, as Figure 3-5 shows.
MGB-Series Module
1
2

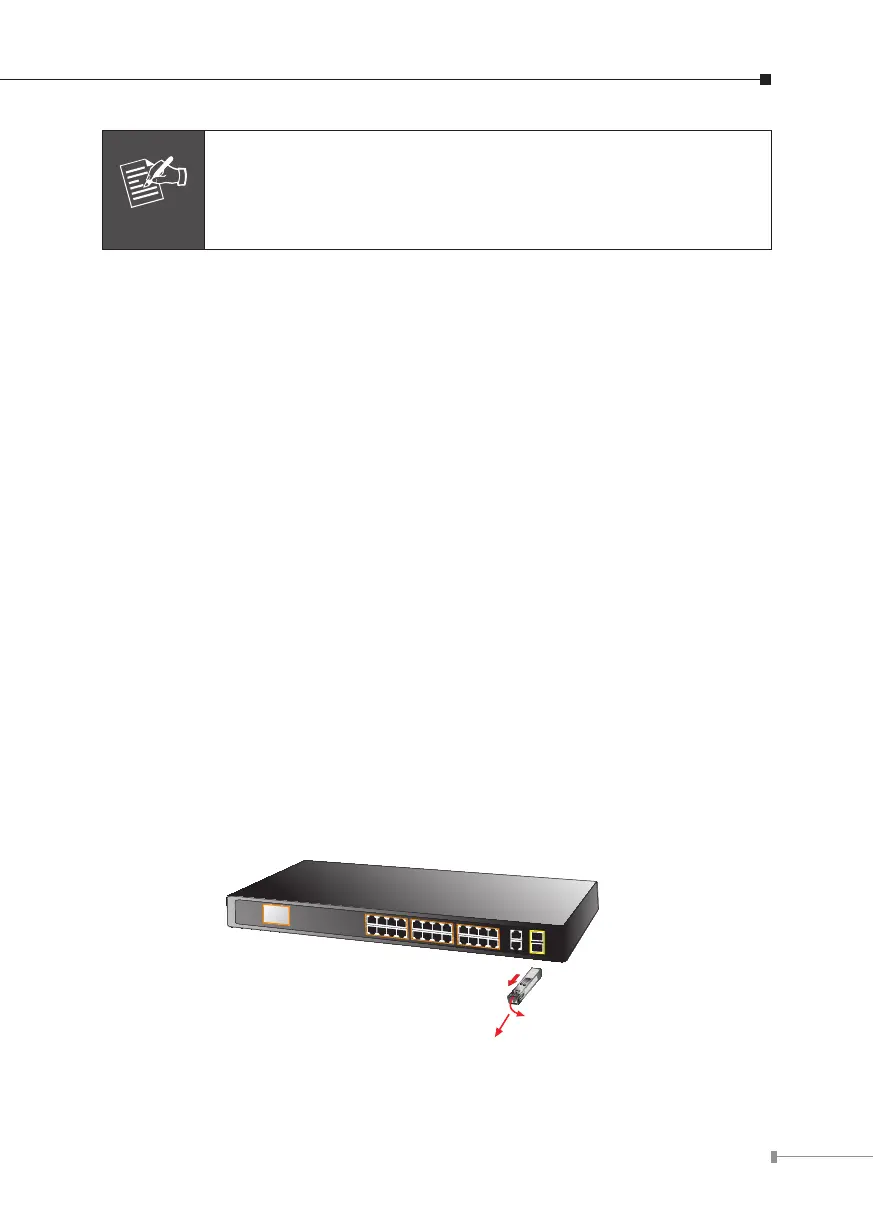

Figure 3-5: How to Pull Out the SFP Transceiver
