15
5.1 Logging in to the Industrial Managed Switch
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
https://192.168.0.100toaccesstheWebinterface.
2.When the following dialog boxappears, please enter the default user name
and password “admin”. The login screen in Figure 5-2 appears.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
DefaultPassword:admin

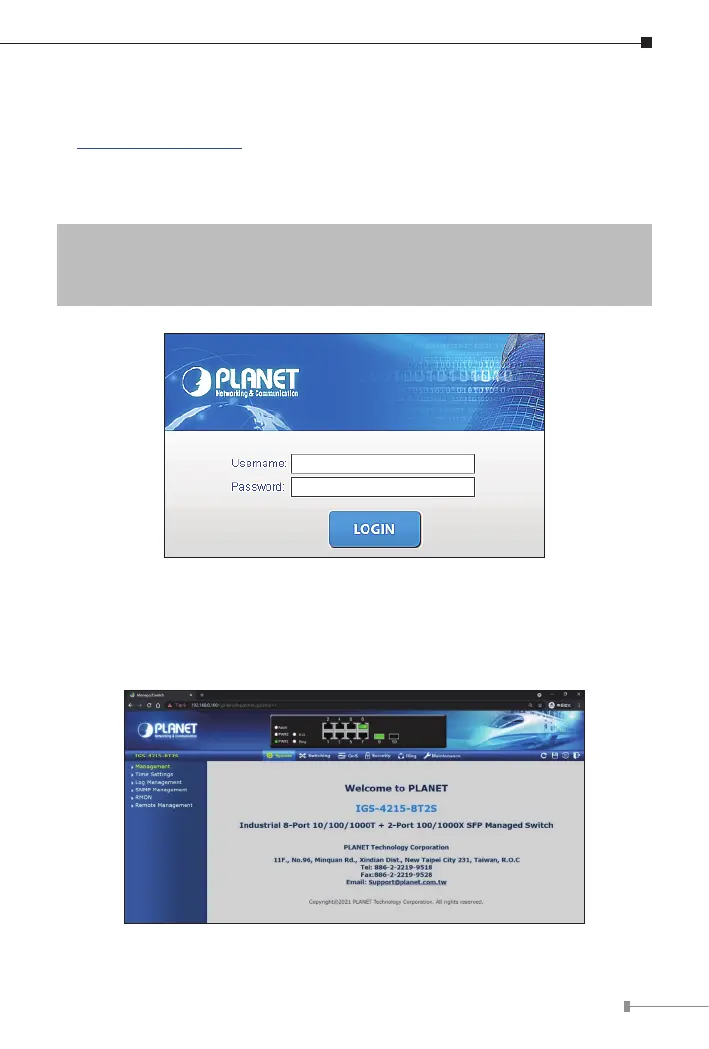

Figure 5-2: Web Login Screen
3.After entering the username and password, the main screen appears as
Figure 5-3 shows.
Figure 5-3: Web Main Screen of Industrial Managed Switch
