Planet IGS-4215 Series Quick Installation Guide

6
 IGS-4215-8T2S
DC Input: 9-48V , 1A max.
AC Input: 24V
, 0.5A max.
Max. Fault Alarm Loading: 24V, 1A
V1+
V2+
PWR1
PWR2Alarm
1 2 3 4 5 6

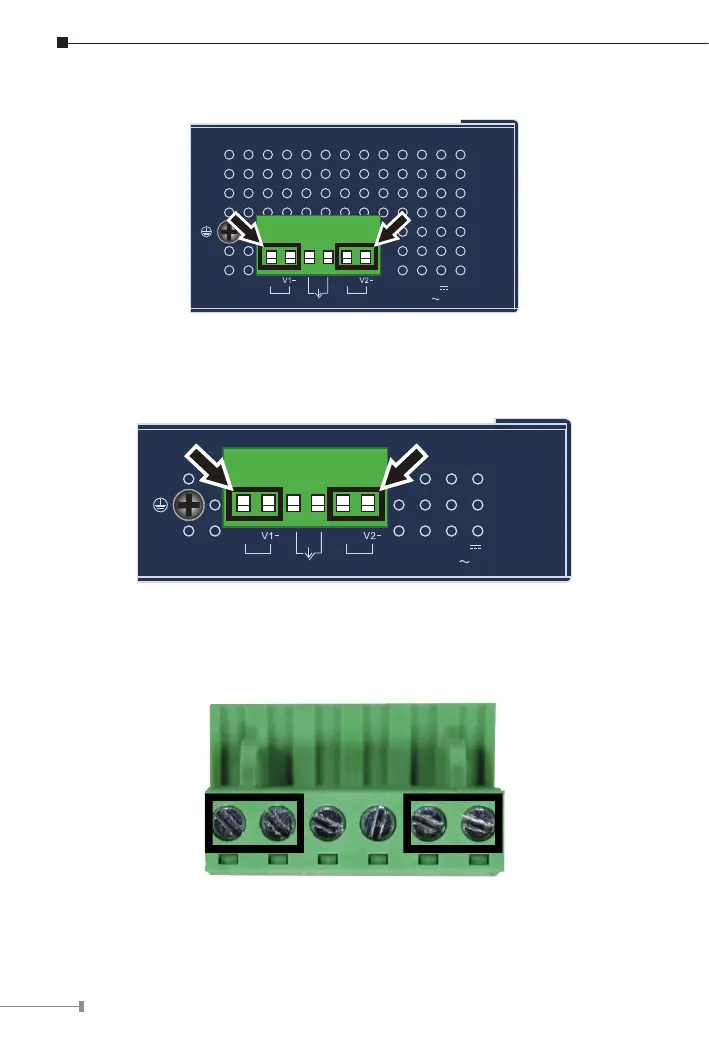

Figure 3-3: IGS-4215-8T2S Inlet Power Socket
 IGS-4215-4T2S
Max. Fault Alarm Loading: 24V, 1A
DC Input: 9-48V
, 1A max.
AC Input: 24V
, 0.6A max.
V1+ V2+
PWR1
PWR2Alarm
1 2 3 4 5 6
Figure 3-4: I GS-4215-4T2S Inlet Power Socket
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
1 2 3 4 5 6
V1+ V1- V2+ V2-
Power 1 Power 2
