Planet IGS-501T User Manual

12

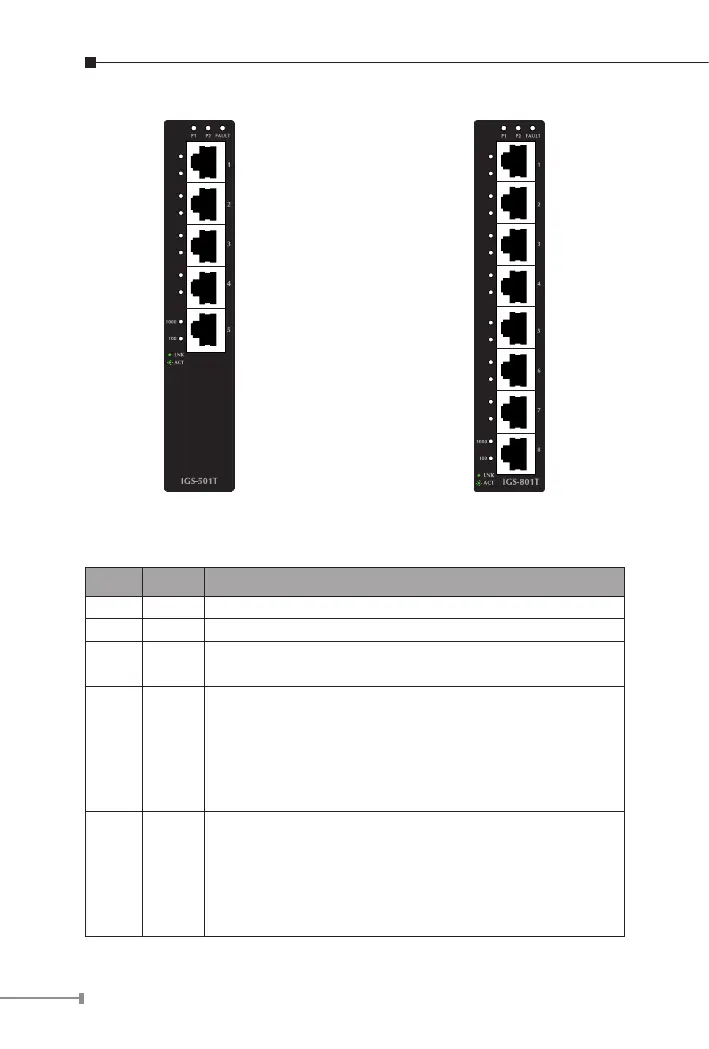

Figure 2-3 IGS-501T front panel Figure 2-4 IGS-801T front panel
2.1.3 LED Indicators
LED Color Function
P1 Green Lit: indicate the power 1 has power.
P2 Green Lit: indicate the power 2 has power.
FAULT Green
Lit: indicate the either power 1 or power 2 has no
power.
1000 Green
Lit: indicate the Switch is successfully connecting to
the network at 1000Mbps.
Off: indicate that the Switch is successfully connecting
to the network at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or
receiving data over that port.
100 Green
Lit: indicate the Switch is successfully connecting to
the network at 100Mbps or 10Mbps.
Off: indicate that the Switch is successfully connecting
to the network at 1000Mbps.
Blink: indicate that the Switch is actively sending or
receiving data over that port.
