Planet IGS-501T User Manual

13

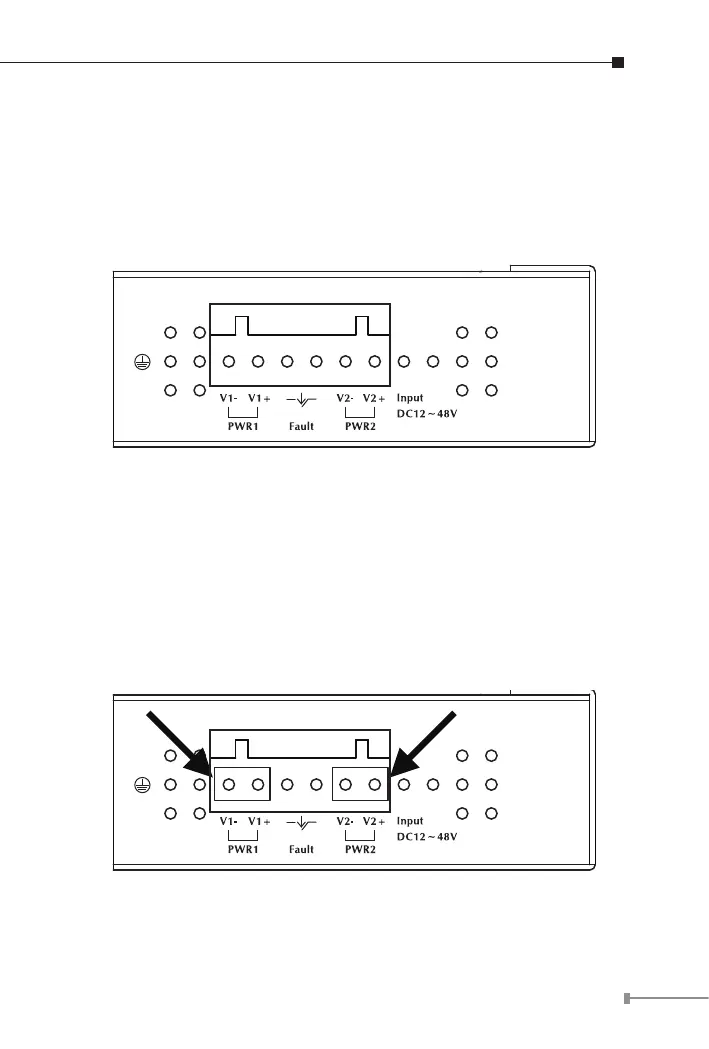

2.1.4 Switch Upper Panel
The upper panel of the Industrial Gigabit Ethernet Switch consist one
terminal block connector within two DC power inputs. Figure 2-5 shows
the upper panel of the switch.
Figure 2-5 shows upper panel of Industrial Gigabit Ethernet Switch.
Figure 2-5 Industrial Gigabit Ethernet Switch upper Panel.
2.1.5 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial
Gigabit Ethernet Switch is used for two DC redundant powers input.
Please follow the steps below to insert the power wire.
1. Insert positive / negative DC power wires into the contacts 1 and 2
for POWER 1, or 5 and 6 for POWER 2.
V1- V1 + V2 - V2 +
