64-Channel Windows-based Network Video Recorder with 8-bay Hard Disks
NVR-E6480
18

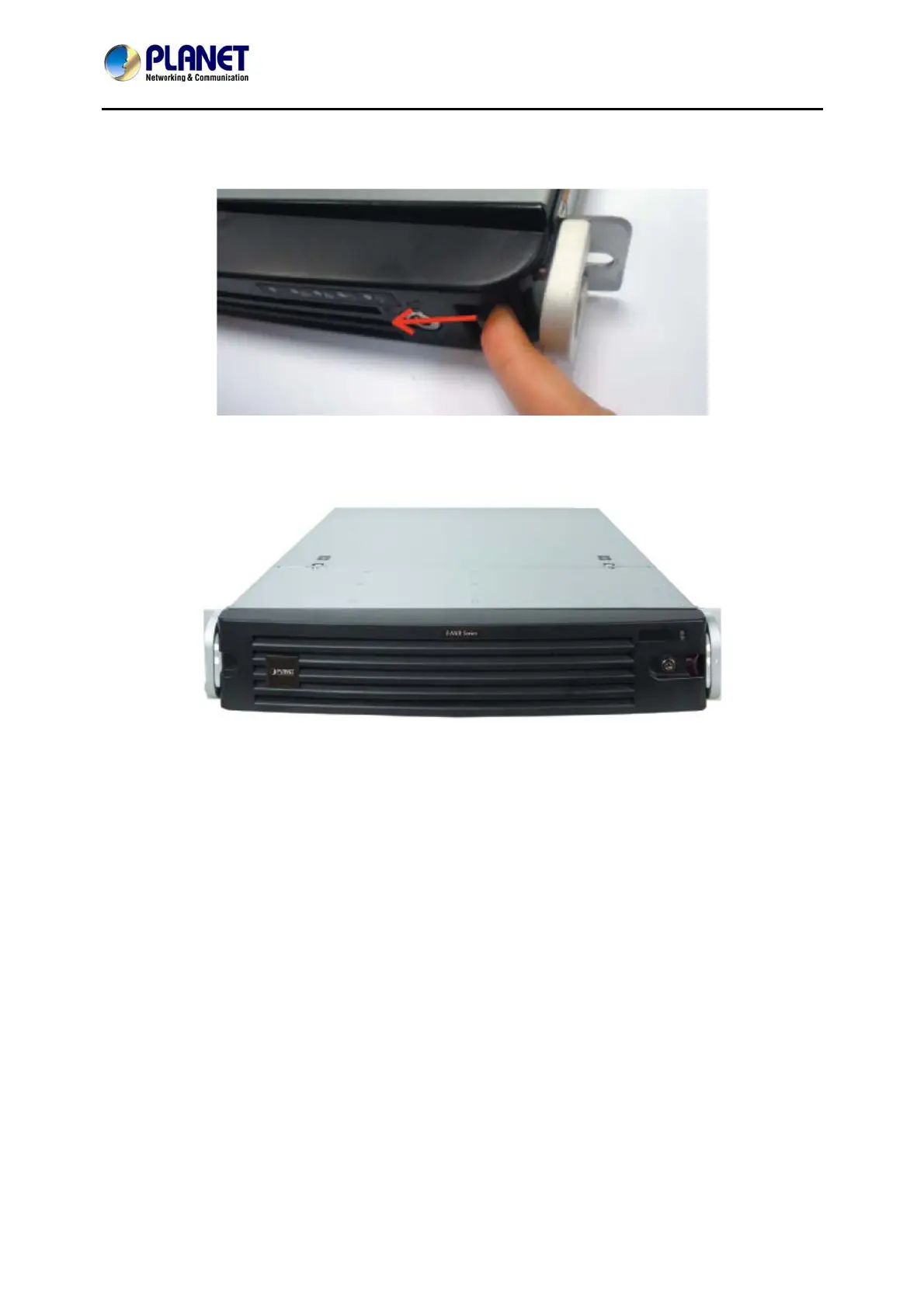

7. Press the latch and push the right end towards the unit’s right handle until it clicks into
place.
8. The NVR with front cover is shown below.
2.1 Rack Mounting
This unit is designed to be mounted on a standard server rack, which occupies 2U (3.5”) of
vertical space.
Step 1: Allow a minimum of 5 cm clearance at the front and the rear for front-to-back airflow of
the unit.
Step 2: Prepare a rack shelf rated for the unit’s weight or purchase the rail kit from PLANET,
and install that to support the entire unit.
Step 3: Secure the unit onto the rack.
