5. Starting Web Management
The Managed Switch provides a built-in browser interface. You can manage it
remotely by having a remote host with Web browser, such as Microsoft Internet
Explorer,MozillaFirefox,GoogleChromeorAppleSafari.
PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address:
192.168.0.254

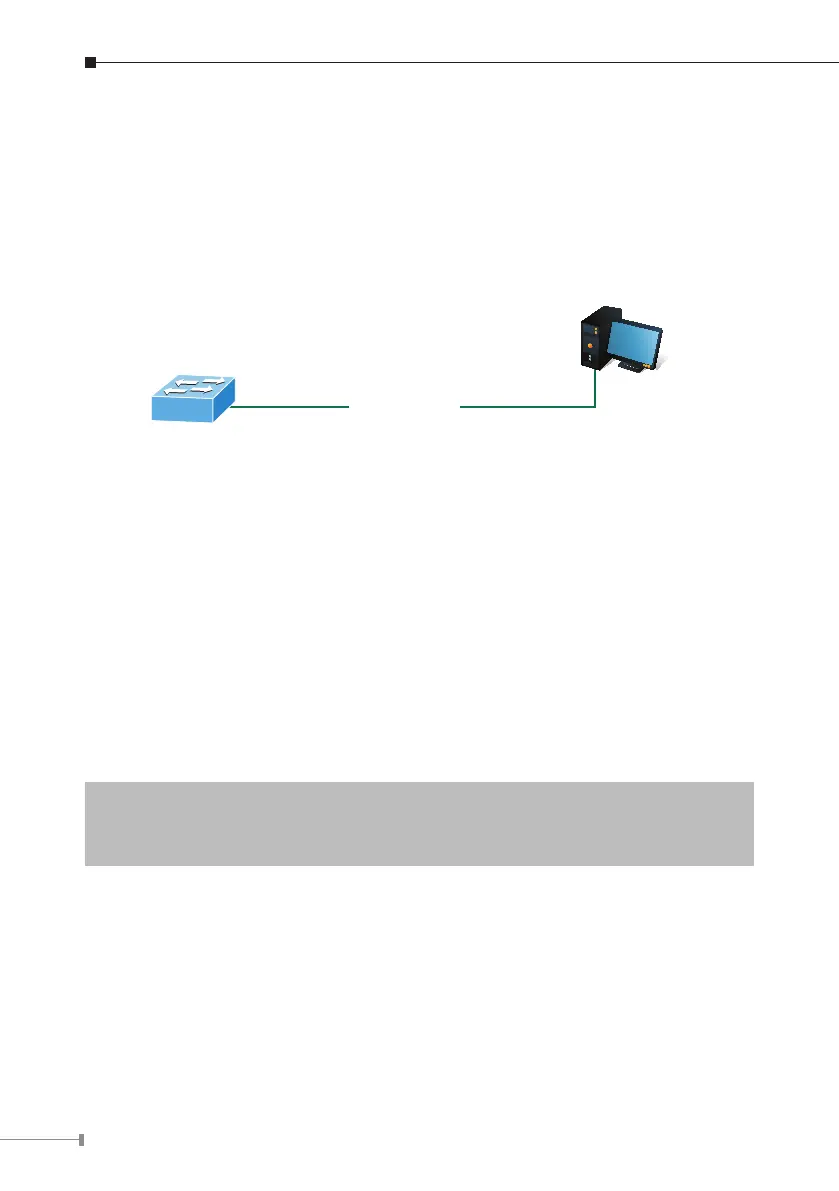

Figure 5-1 IP Management Diagram
The following shows how to start up the Web Management of the Managed
Switch. Please note the Managed Switch is congured through an Ethernet
connection. Please make sure the manager PC must be set to the same IP subnet
address.
For example, the IP address of the Managed Switch is congured with
192.168.0.254, then the manager PC should be set to 192.168.0.x (where x
is a number between 1 and 253, except 254), and the default subnet mask is
255.255.255.0.
Thefactorydefaultusernameandpasswordareasfollows:
DefaultIP:192.168.0.254
Username:admin
Password:admin
