5.2SavingCongurationviatheWeb
In the Managed Switch, the running conguration le stores in the RAM. In the
currentversion, therunning congurationsequence ofrunning-cong can be saved
from the RAM to FLASH by “Save current running-congurations” function,
so that the running conguration sequence becomes the startup conguration le,
whichiscalledcongurationsave.
To save all applied changes and set the current conguration as a startup
conguration, the startup-conguration le will be loaded automatically across a
system reboot.

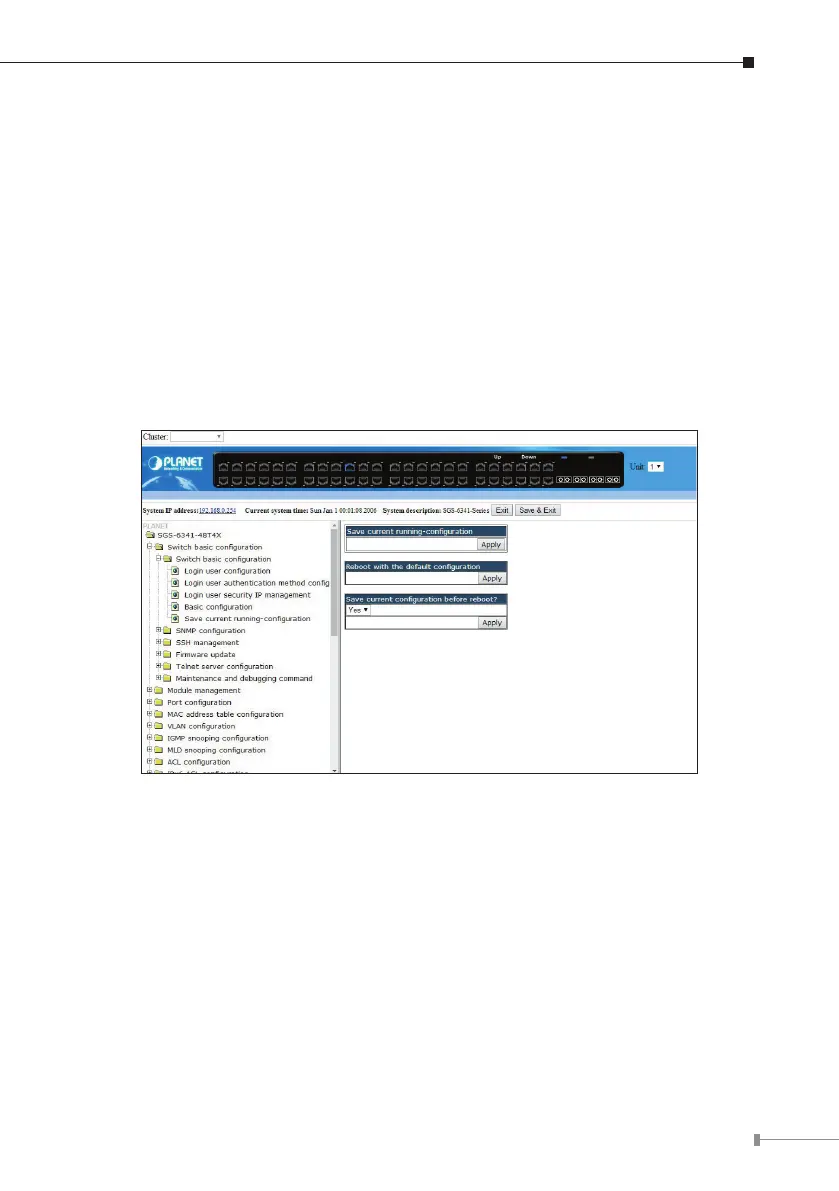

1. Click “Switch basic conguration > Switch basic conguration > Save
current running-conguration” to login  “Save current running-conguration”
Page.
2. Press the “Apply” button to save current running-conguration to start up
conguration.

Planet SGS-6341-24T4X Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Black
Console port	RJ-45
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
Routing entries	128
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Flash memory	16 MB
Internal memory	512 MB
Processor frequency	400 MHz
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	SNMPv3, SSH, SSL/TLS
Throughput	95.24 Mpps
Jumbo frames	9216
Number of queues	8
MAC address table	16000 entries
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Power consumption (max)	19.9 W
Heat dissipation	67.91 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	240 mm
Width	440 mm
Height	43.6 mm
Weight	3170 g
