User’s Manual of WGSW-20160HP/WGSW-24040HP series
VLAN Port Configuration

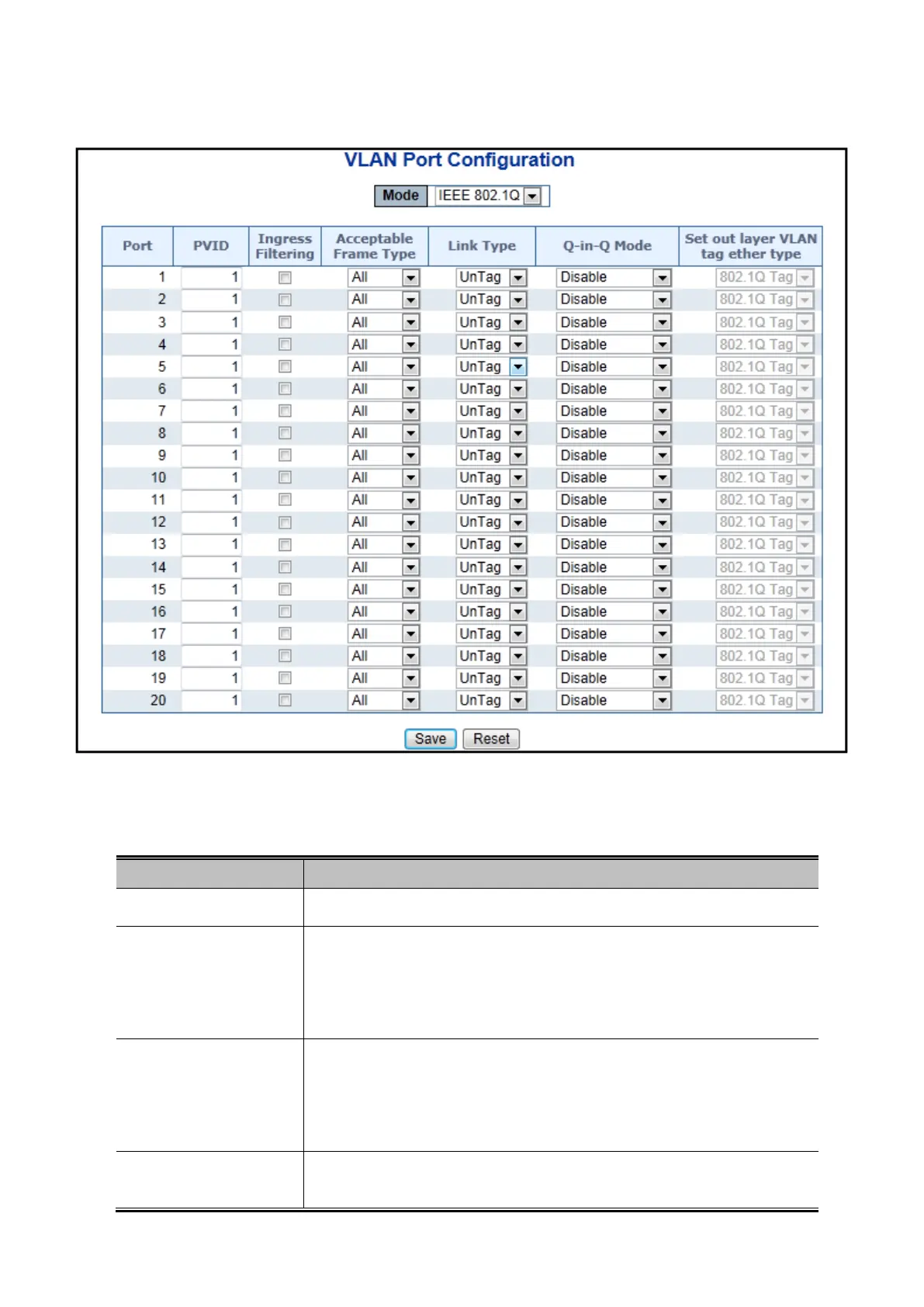

The VLAN Port Configuration screen in Figure 4-6-2 appears.
Figure 4-6-2 : VLAN Port Configuration Page Screenshot
The Page includes the following fields:
Object Description
• Port
This is the logical port number for this row.
• PVID
Allow assign PVID for selected port. The range for the PVID is 1-4094.
The PVID will be inserted into all untagged frames entering the ingress port. The
PVID must as same as the VLAN ID that the port belong to VLAN group, or the
untagged traffic will be dropped.
Ingress Filtering Enable ingress filtering for a port by checking the box. This parameter affects
VLAN ingress processing. If ingress filtering is enabled and the ingress port is not
a member of the classified VLAN of the frame, the frame is discarded. By default,
ingress filtering is disabled (no checkmark).
• Accept Frame Type
Determines whether the port accepts all frames or only tagged frames. This
parameter affects VLAN ingress processing. If the port only accepts tagged
