TECHNICAL SPECIFICATIONS
16 Planmeca SingLED operating light
User’s Manual

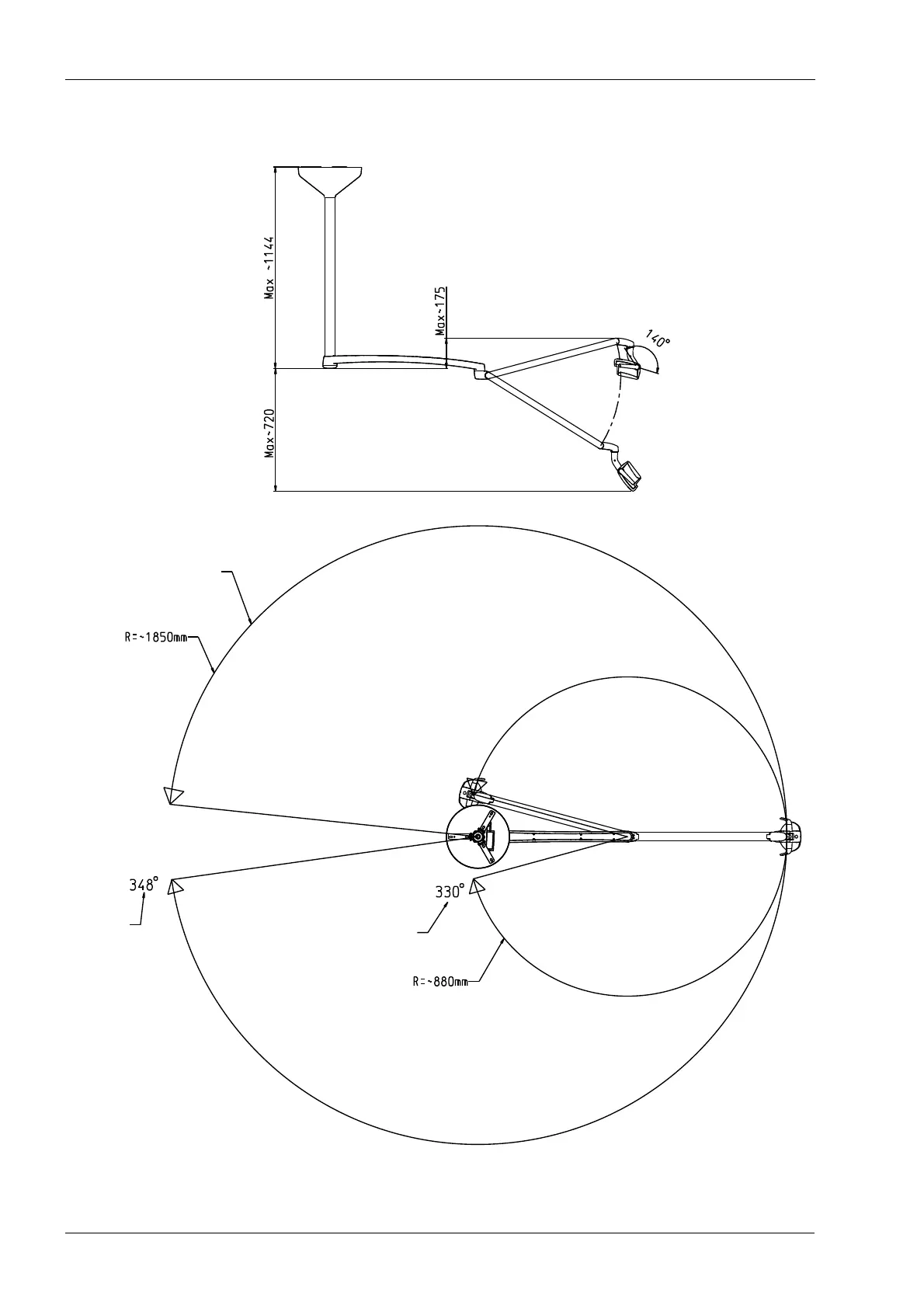

Ceiling installation
Top view
Side vie
Maximum room
height 3000 mm
First joint rotation angle with rotation limit of ceiling adapter
Second joint rotation
angle with rotation limit
Maximum reach of
outermost point
of operating light
