Planmeca SingLED operating light 17
TECHNICAL SPECIFICATIONS
User’s Manual

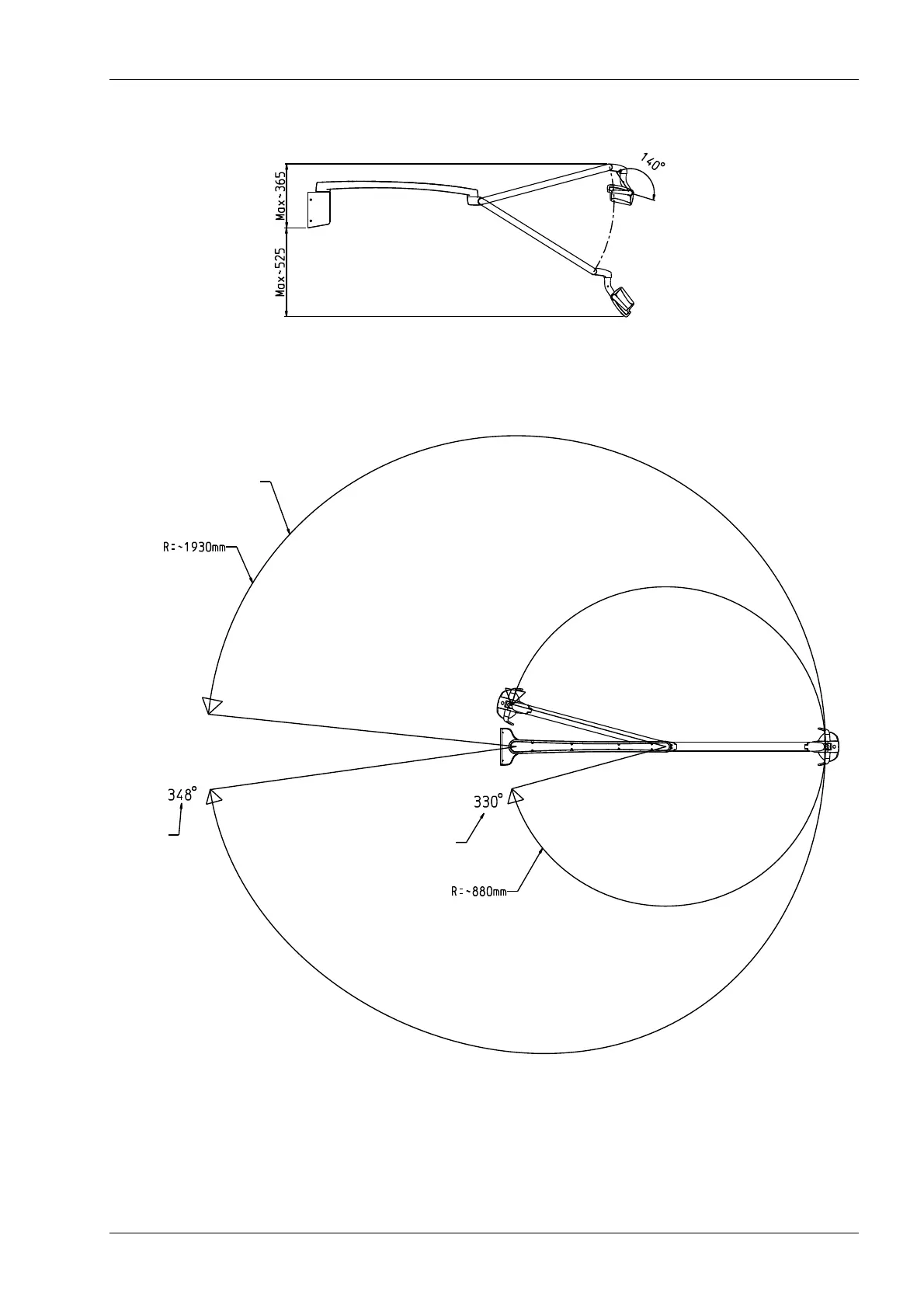

Wall installation
Side view
Top view
Recommended max.
height from floor
1670 mm
Maximum reach of
outermost point
of operating light
First joint rotation angle with rotation limit
Second joint rotation
angle with rotation limit
