TECHNICAL SPECIFICATIONS
18 Planmeca SingLED operating light
User’s Manual

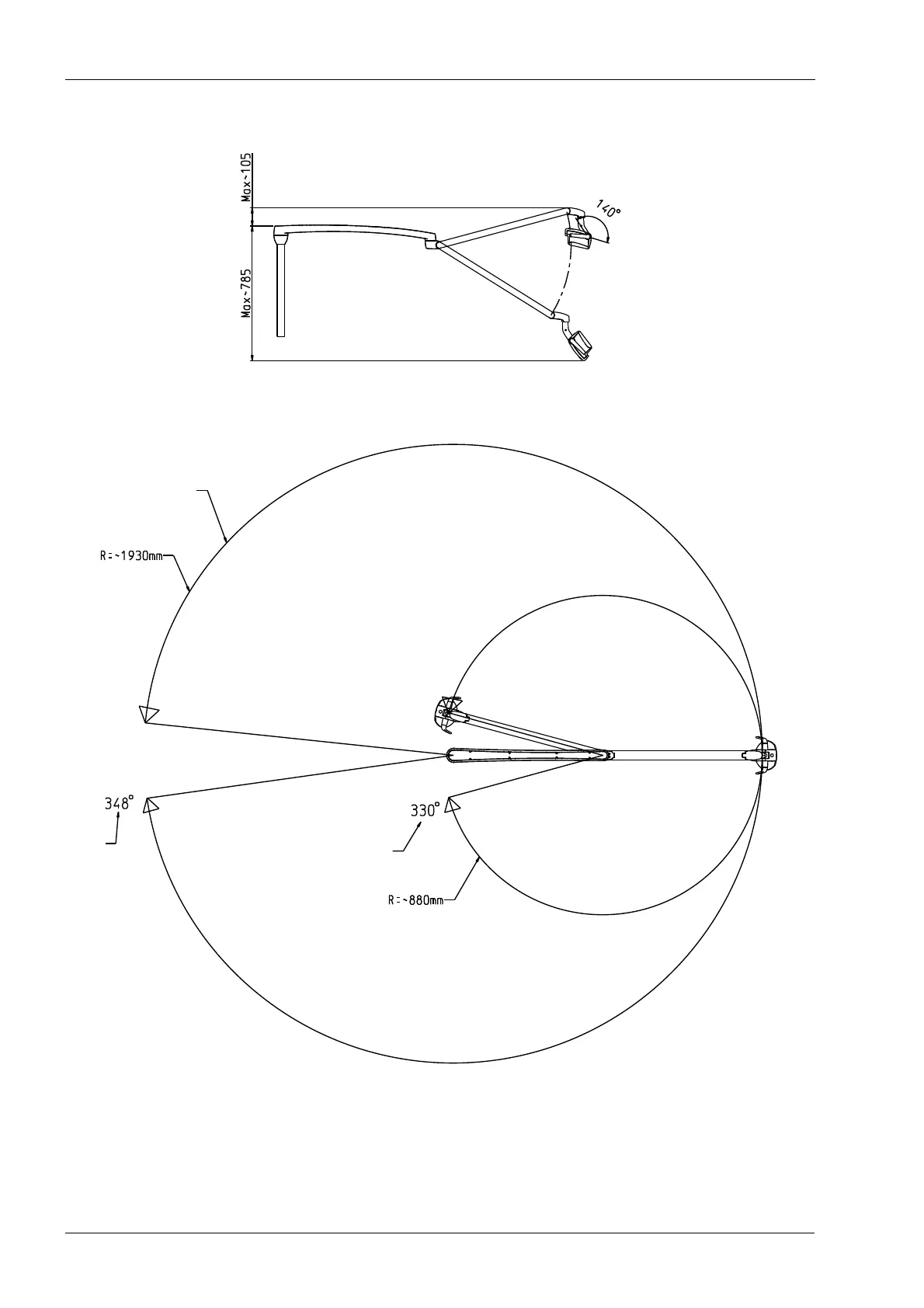

Dental unit installation
Side view
Top view
Maximum reach of
outermost point
of operating light
Second joint rotation
angle with rotation limit
First joint rotation angle with rotation limit
