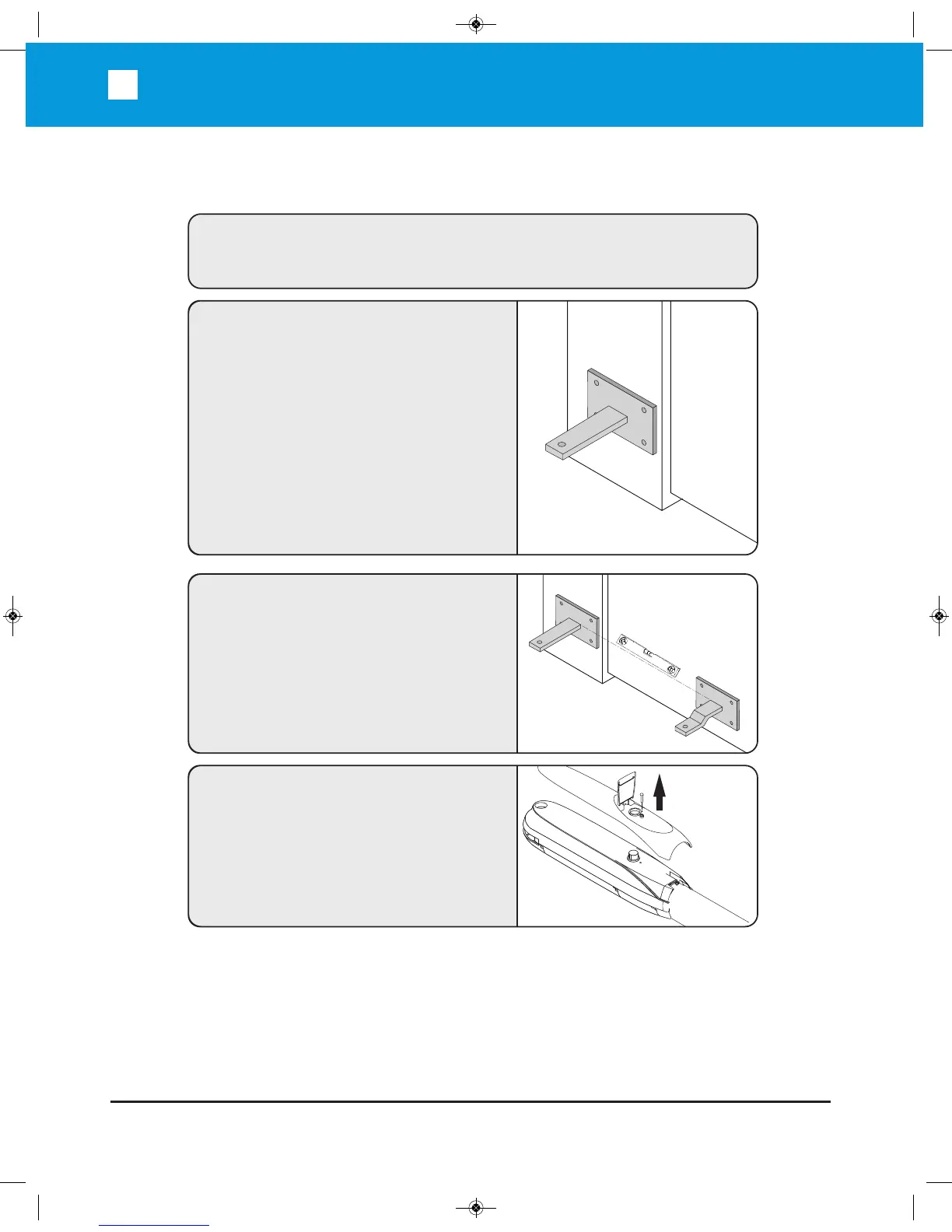

STEP 1
Position Back bracket on to the pilar, check
installation measurements and secure it. The
installation measurements indicated in the
table on page 9 allow you to choose the
values of [A] and [B] on the basis of the
desired opening angle and in relation to the
on-site spaces and overall dimensions.
Note: For an open outside gate, an additional
bracket will need to be fabricated to obtain the
proper configuration (see figure on page 10).
STEP 2
Position Front bracket to the gate. Make
sure Front and Back brackets are
perfectly level.
STEP 3
Remove the Terminal Cover by opening the
lock flap and removing the screw.
CAUTION
Check that the structure is sufficiently rugged and that the hinge pivots are
properly lubricated.
