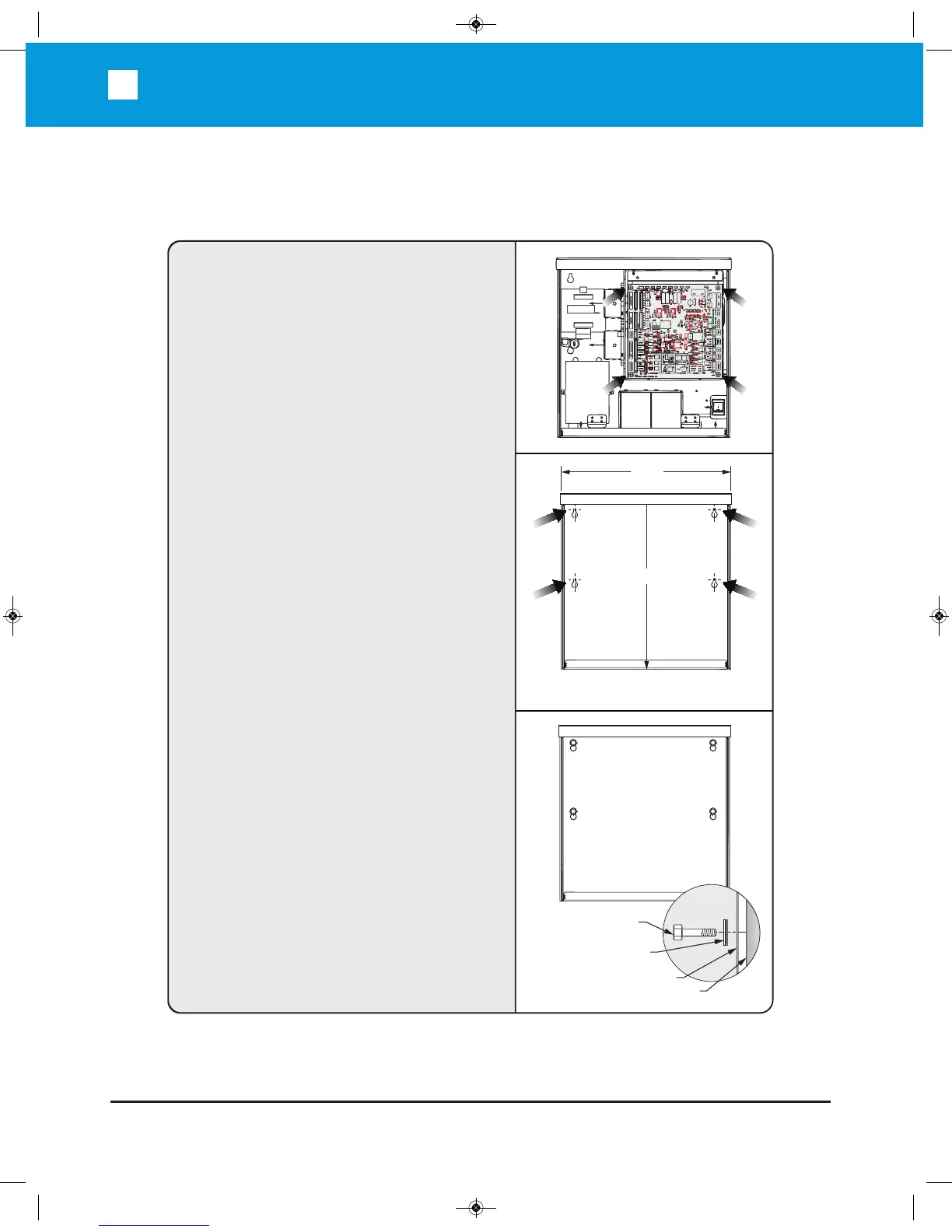

The control box MUST be mounted within
5 feet of the gate operator. Mount the
control box as high as possible for best radio
reception. Make sure the control box is level.
The control unit weight is approximately
28 lbs. with supplied batteries.
1.
Remove the screws and open the control
box.
2.
Disconnect the connector from the Main
Board.
3.
Position the control box into the desired
place and mark the mounting holes.
4.
Select the mounting holes and remove the
knockouts using a screwdriver and hammer.
5.
Secure the control box to mounting surface.
Depth: 6.5"
15.5"
14.5"
Mounting Surface
Control Box
Sealed Washer
Mounting Fastener
(not supplied)
(not supplied)
I
