Platinum Access Systems ACTP715 - Primary Unit; Primary;Secondary Connections

TECHNICAL SUPPORT: (909) 259-6001
ACTP715
21

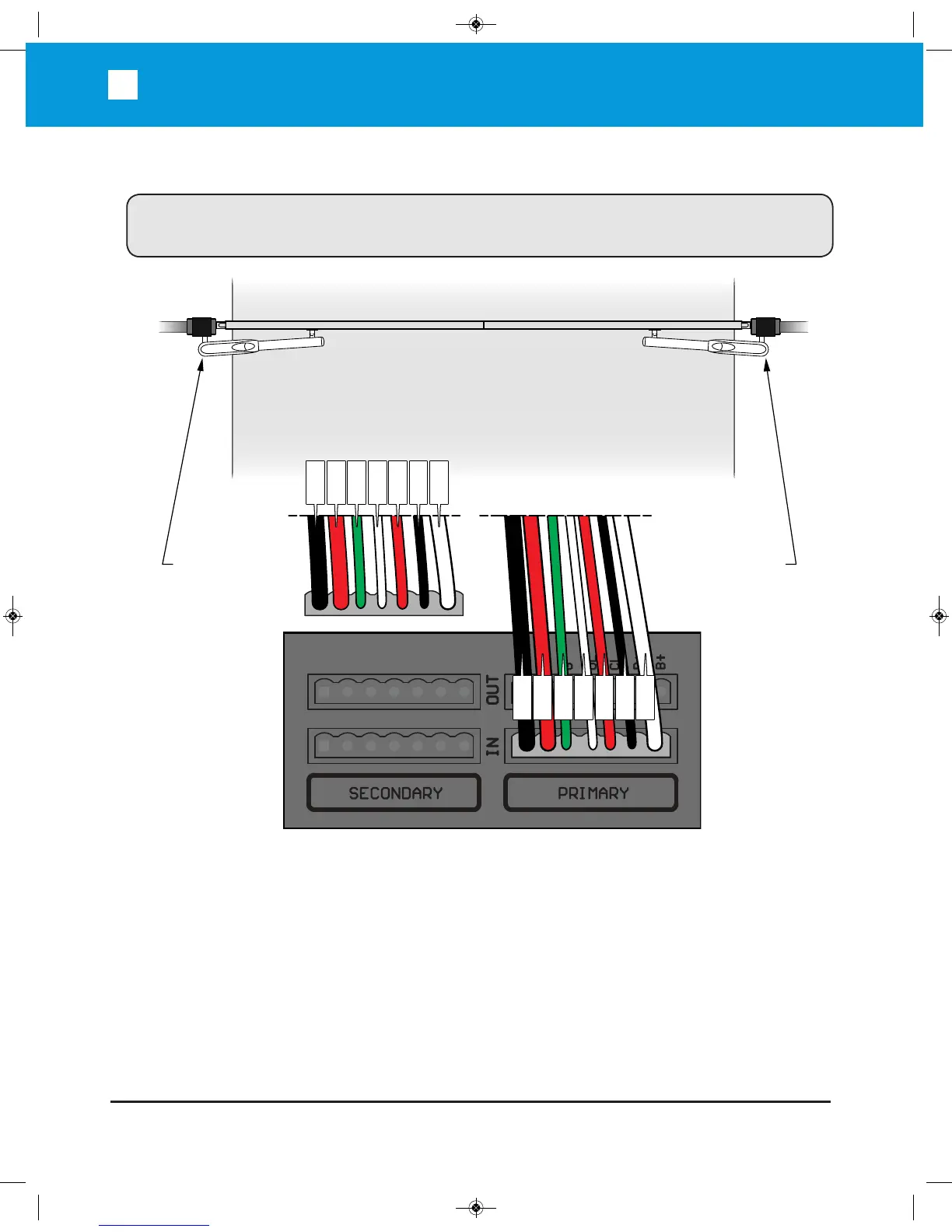

Installation: Primary/Secondary Connections
The control board provides a connector for the secondary actuator unit and automatically synchronizes
the secondary unit with the primary unit.
Inside
Outside
Primary UnitSecondary Unit
White Sm.
Green Sm.
Red Lg.
Black Lg.
White Lg.
Black Sm.
Red Sm.
Simply connect the Secondary arm to its applicable position, IN for open inside or OUT for open outside.
White Sm.
Green Sm.
Red Lg.
Black Lg.
White LG.
Red Sm.
M- M+
G OL B- B+ CL
Black Sm.
