ALARM RESET SWITCH INSTALLATION: (UL 325 standard requirement)
$QDODUPVKDOOVLJQDOXSRQWZRVHTXHQWLDODFWLYDWLRQVRIDQHQWUDSPHQWSURWHFWLRQGHYLFHZKHUHWKH¿UVWDFWLYDWLRQ
is either a Type A or B2 device and the second activation is a Type A device. The alarm shall signal for a minimum
of 5 min or until a renewed manual input from an integral control or a permanently mounted control (such as a Stop
button) located in the line-of-sight of the gate has been entered. An audio alarm is not required for Classes III and IV.
To reset the alarm the Stop command can be given in two different ways.

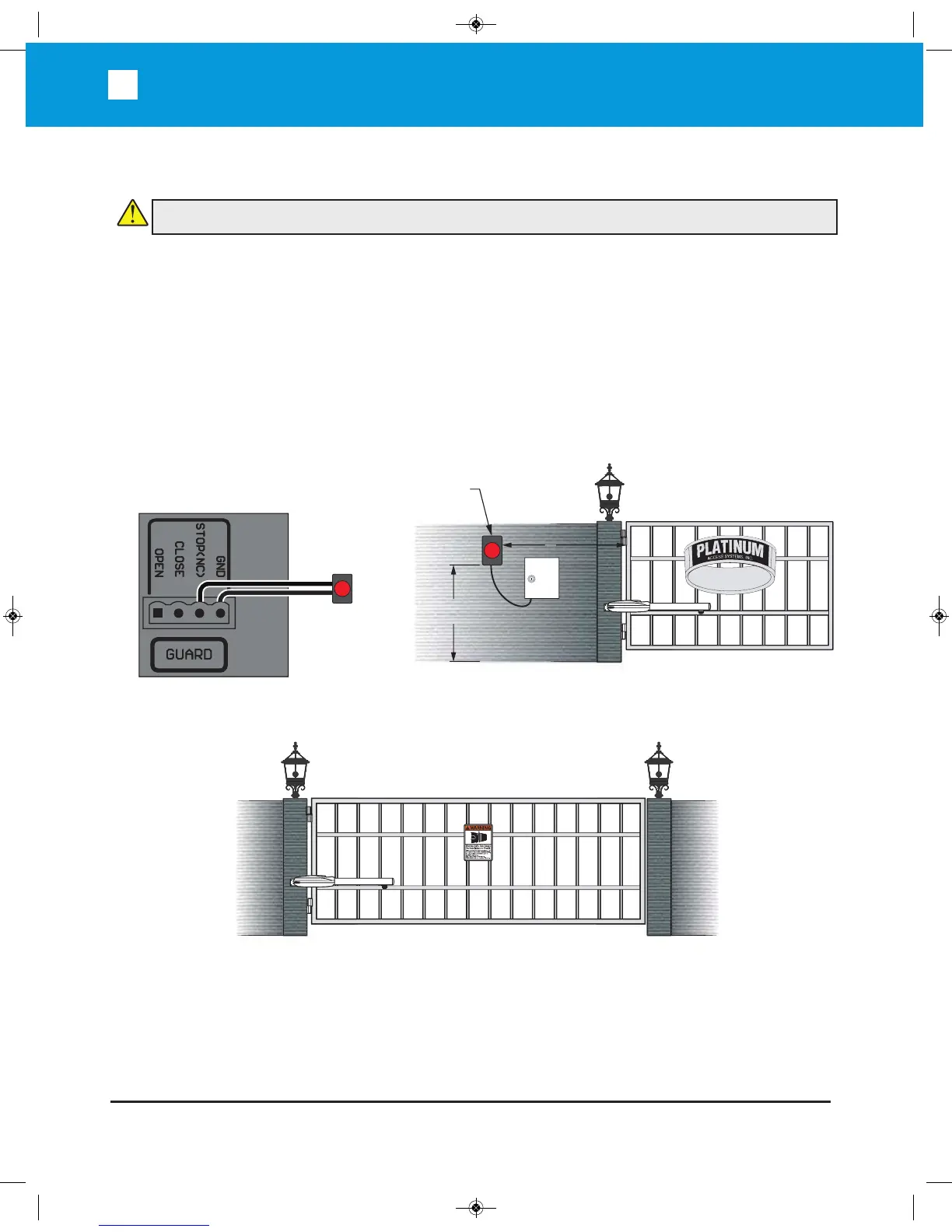

1- The Built in Stop switch on the control board.
2- The External Stop button in the line-of-sight of the gate, away from moving parts of the gate and out of
reach of children.
STOP
5'
Minimum
Manual Stop
Button
6'
COM
N.C.
S
TOP
WARNING PLACARDS INSTALLATION:
WARNING – To reduce the risk of severe injury or death to person, please follow these instructions:
All Warning Sings and Placards must be mounted where visible in the area of the gate.
A minimum of two (2) Warning Placards shall be mounted. (One on each side of the gate).
