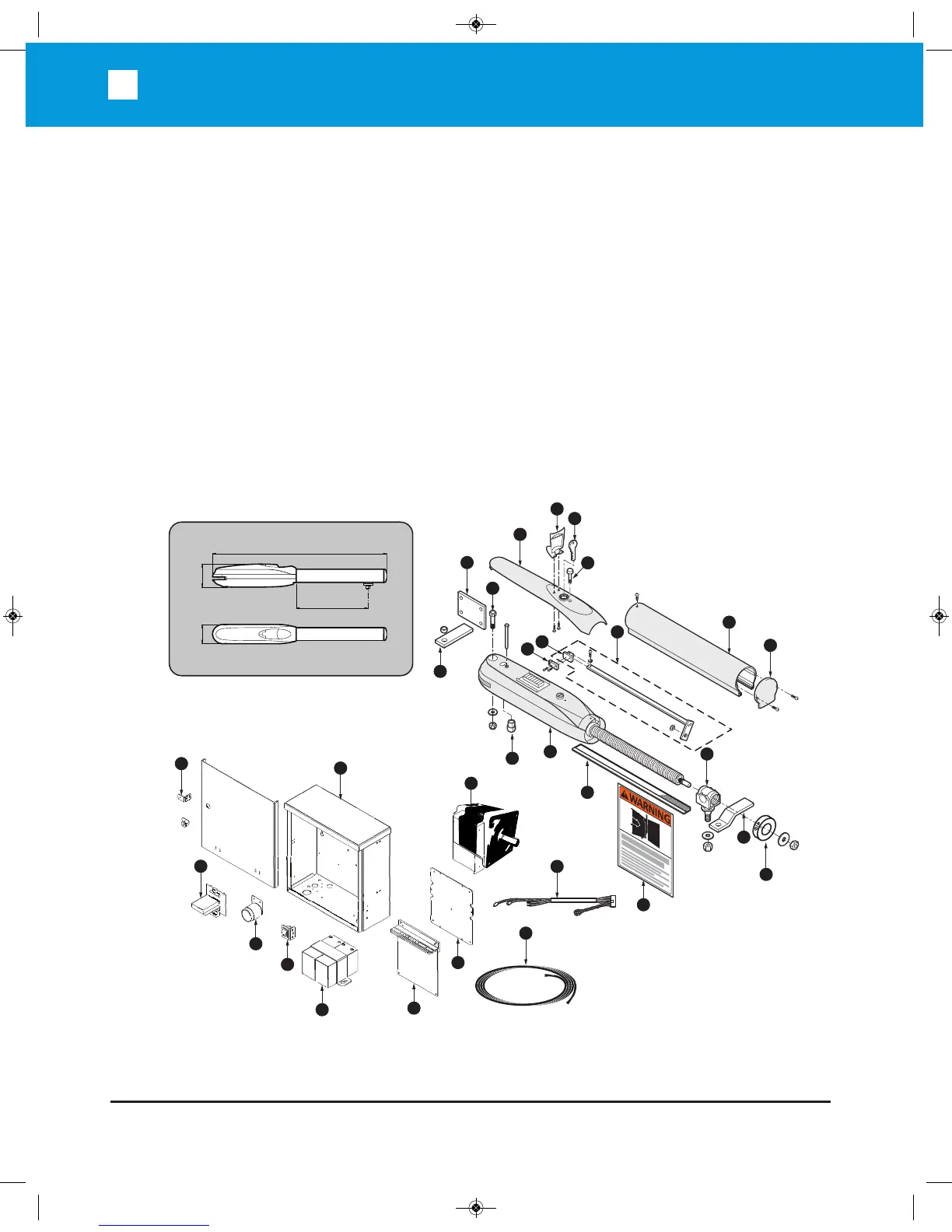

1. ECU Box (Industrial)
2. ECU Cylinder & Access
3. Loop Detector Board
4. Alarm
5. Reset Switch
6. Battery
7. Control Board GOC-4000
8. Control Board Bracket
9. 7-Conductor Cable, 16 ga.
10. Switching Power Supply
11. Warning Placard
12. Mounting Hardware, Back
13. Travel Limiter
14. Carrier, Lead Screw, with hardware
15. Bar, Limit Switch
16. Unit, Motor, Drive Screw
17. Holder, Cable
18. Limit Switch (2)
19. Limit Switch Bracket
20. End Cap, Drive Screw Cover
21. Dust Brush (2)
22. Cover, Drive Screw
23. Mounting Bracket, Back
24. Mounting Bracket, Front
25. Backing Plate, Bar Mount (2)
26. Cover, Terminal
27. Door, Access
28. Key, Release
29. Thumbscrew, Terminal Block Cover
30. Power Harness
Overall Dimensions
Weight: 40 lb.
1
10
2
3
4
5
6
7
8
11
29
25
27
18
12
26
2
2
20
13
14
23
17
16
24
21
28
19
15
30
9
4
1 (1040 mm)
19
11
/16 (500 mm)
(120 mm)
4
23
/
32
(100 mm)
3
15
/
16
