PleasureCraft Engine Group 5.0L User Manual

2 - 6 ECM and Sensors 5.0/5.7/6.0/8.1L
MEFI 4 - PCM

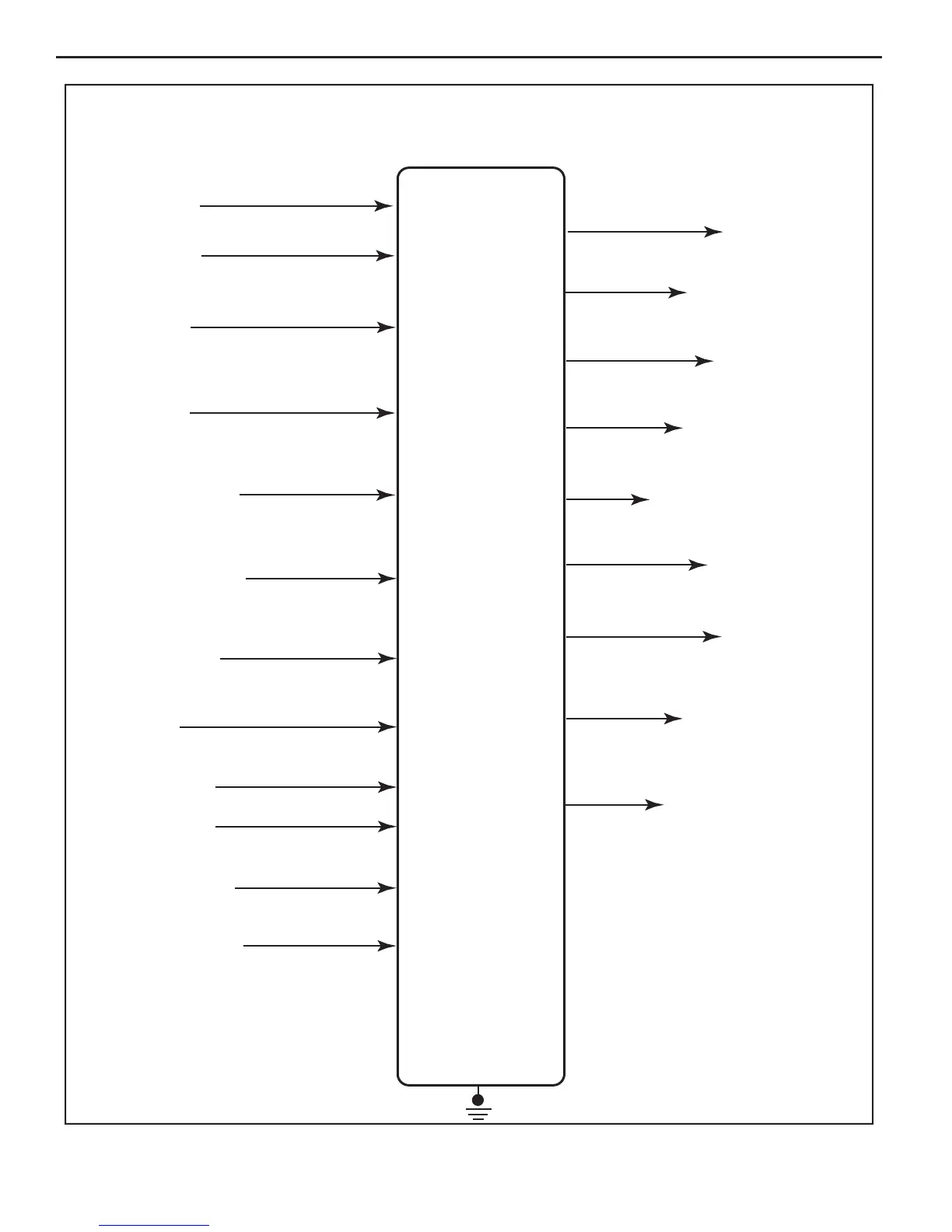

Figure 2-5 - ECM Inputs and Outputs (Typical)
E
L
E
C
T
R
O
N
I
C
C
O
N
T
R
O
L
M
O
D
U
L
E
MEFI INPUTS AND OUTPUTS
(TYPICAL)
INPUTS
OUTPUTS
BATTERY 12V
IGNITION 12V
THROTTLE POSITION
(TP) SENSOR
MANIFOLD ABSOLUTE
PRESSURE(MAP)
ENGINE COOLANT
TEMPERATURE (ECT)
SENSOR
INTAKE AIR
TEMPERATURE (IAT) (5.0/5.7L only)
KNOCK SENSOR 1
DIAGNOSTIC ENABLE
GENERAL WARNING 2
(OIL PRESSURE)
CRANKSHAFT
POSITION
SENSOR (RPM)
FUEL INJECTORS
MULTIPLE
IGNITION CONTROLS (IC)
FUEL PUMP RELAY
IDLE AIR CONTROL (IAC)
OPERATOR INFORMATION
LAMPS/BUZZERS
SERIAL DATA (ECM
COMMUNICATION)
V- REFERENCE
(5 VOLT OUTPUT
TO SENSORS)
MS 11699
MALFUNCTION INDICATOR
LAMP (MIL)
KNOCK SENSOR 2
(6.0/8.1L only)
CAMSHAFT
POSITION
SENSOR
2-13-04
DEPSPOWER
(12 VOLT OUTPUT
TO SENSORS)
