6.0L Fuel Metering System 3B - 17
MEFI 4 - PCM
Fuel Control Cell (FCC) Replacement - Screw
On Bowl and Clamp On Bowl
Important
•
Fuel pressure must be relieved before servicing the
fuel pump.
•
Refer to “Fuel Pressure Relief Procedure.”
Remove or Disconnect
1. Negative battery cable.
2. Fuel pump electrical connector.
3. Inlet and outlet fuel line fi ttings.
4. Fuel Control Cell (FCC) attaching bolts.
5. Fuel Control Cell (FCC).
Install or Connect
1. Fuel Control Cell (FCC).
2. Fuel Control Cell (FCC) attaching bolts.
3. Inlet and outlet fuel line fi ttings.
4. Fuel pump electrical connector.
5. Negative battery cable.
Inspect
•
Turn ignition switch to the “ON” position for 2 seconds,
then turn to the “OFF” position for 10 seconds. Turn
the ignition switch back to the “ON” position and check
for fuel leaks.

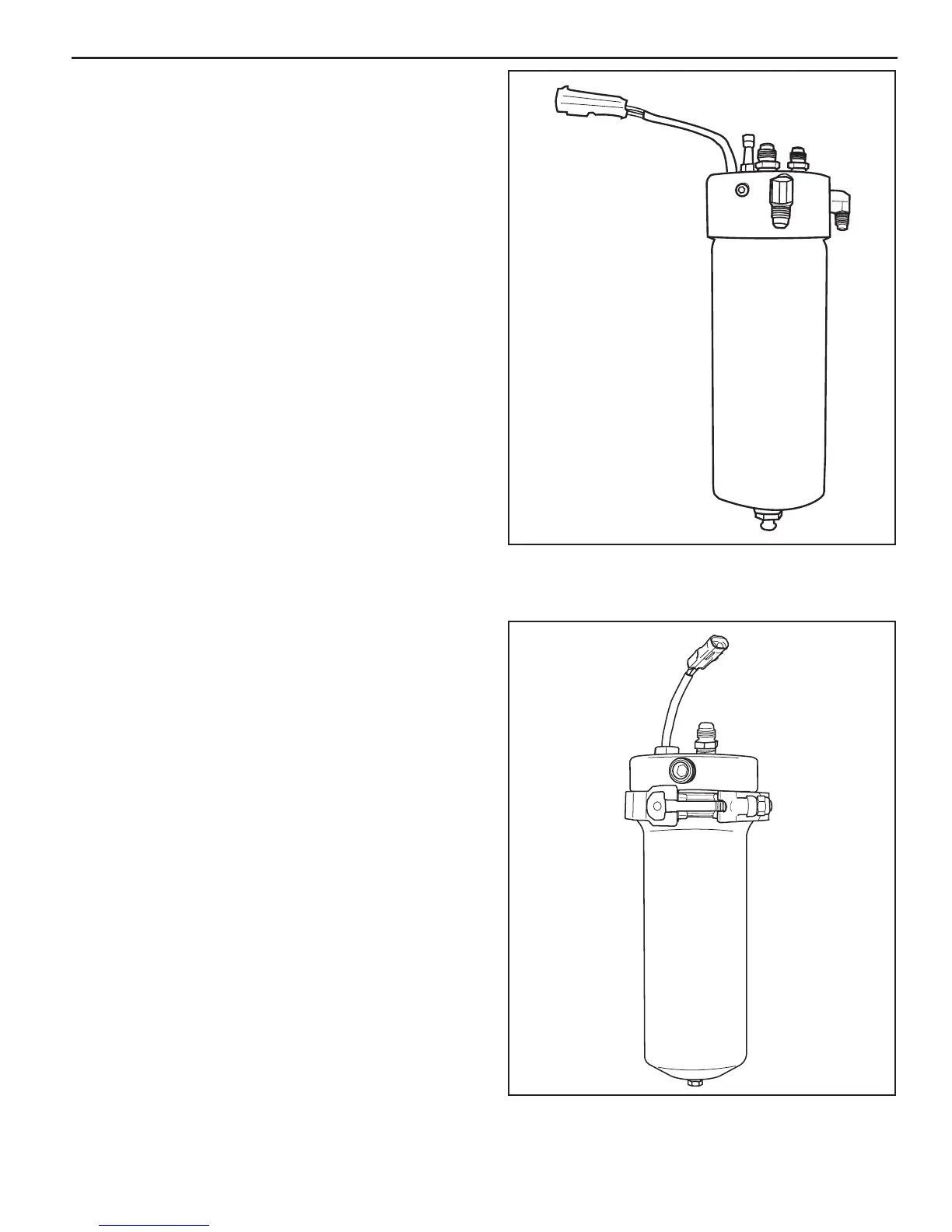

Fuel Control Cell (FCC) - Screw On Bowl
Fuel Control Cell (FCC) - Clamp On Bowl
