8.1L Fuel Metering System 3C - 9
MEFI 4 - PCM
Quick Connect Fitting(s) Service
Tools Required
J 37088-A Tool Set, Fuel Line Quick-Connect Separator
J 44581 Fuel Line Quick Connect Separator
Remove or Disconnect
1. Relieve the fuel system pressure before servicing
any fuel system connection. Refer to Fuel Pressure
Relief Procedure.
2. Remove the retainer from the quick-connect fi tting.
Caution: Wear safety glasses in order to avoid eye
damage.

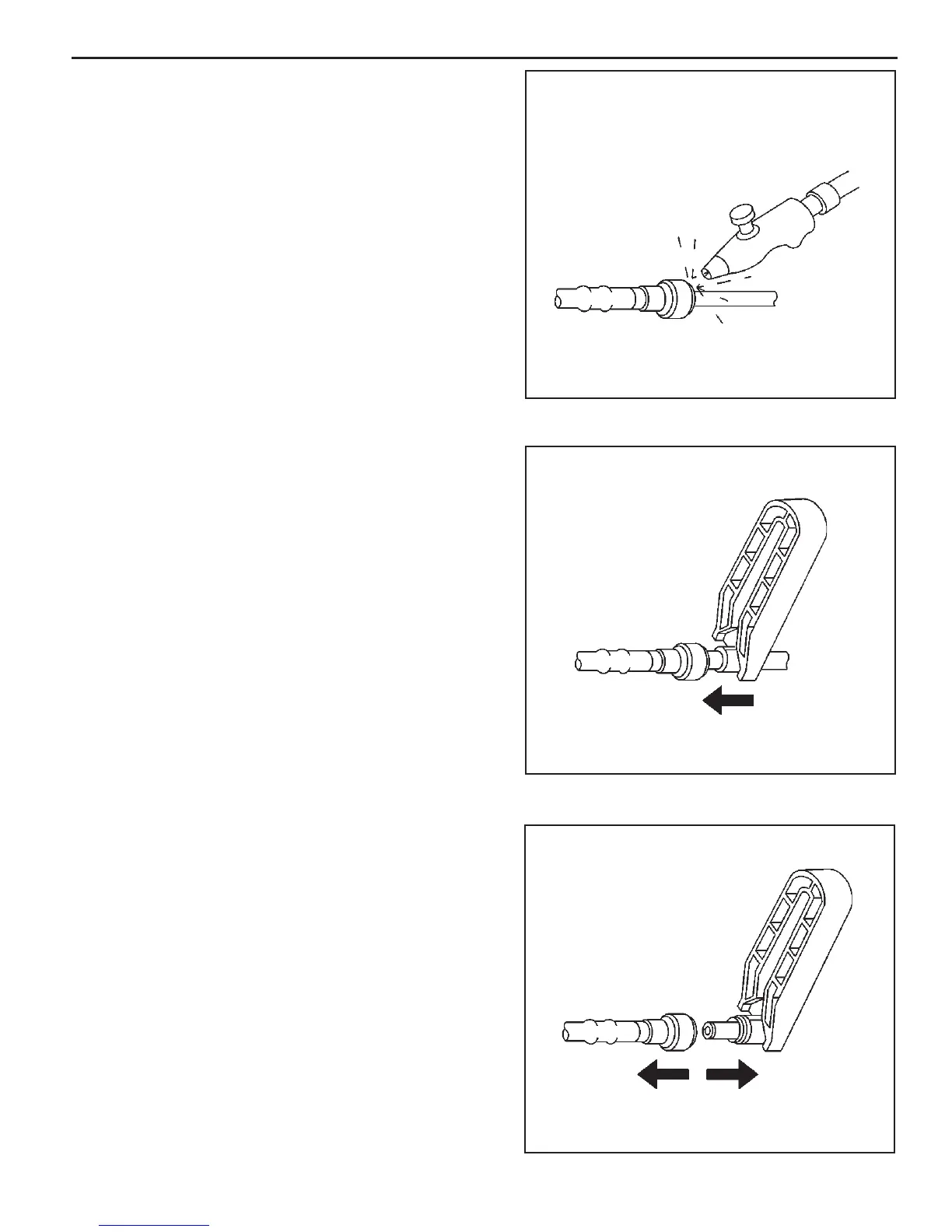

3. Blow dirt out of the fi tting using compressed air.
12776
4. Choose the correct tool from the tool set for the size of
the fi tting. Insert the tool into the female connector, then
push inward in order to release the locking tabs.
12780
5. Pull the connection apart.
6. Use a clean shop towel in order to wipe off the male
pipe end.
7. Inspect both ends of the fi tting for dirt and burrs. Clean
or replace the components as required.
12782
