PH/PHX-2 Manual
14
A. Control Panel
Controls and regulates the operation of the PH Series Proportioner.
B. Isocyanate (Iso, A) Metering Pump
Meters the Isocyanate material.
C. Polyol (Poly, R) Metering Pump
Meters the Polyol material.
D. Hydraulic Cylinder Assembly
Transfers power from hydraulic pump to material pumps.
E. Isocyanate (Iso, A) Inlet Manifold Assembly
Provides Isocyanate temperature and pressure readings prior to heating and
pressurizing
F. Polyol (Poly, R) Inlet Manifold Assembly
Provides Polyol temperature and pressure readings prior to heating and pressurizing
G. Exit Manifold Assembly
Provides pressure reading of material after heating and pressurizing
H. Isocyanate (Iso, A) Lube Reservoir
Provides lube to the Isocyanate pump shaft
I. Hydraulic Manifold Assembly
Provides pressure reading of hydraulic fluid and controls direction of flow
J. Motor
Provides power for hydraulic pump.
K. Hose Heating Transformer – Right side, inside of hydraulic tank
Supplies the required voltage for material Heated Hoses
L. Hydraulic Pressure Control
Allows the pressure of the hydraulic system to be increased or decreased. Turn
clockwise to increase the pressure and counterclockwise to decrease. To regulate the
pressure of the hydraulic system, the NORMAL or RETRACT Pump Switch position
must be selected,

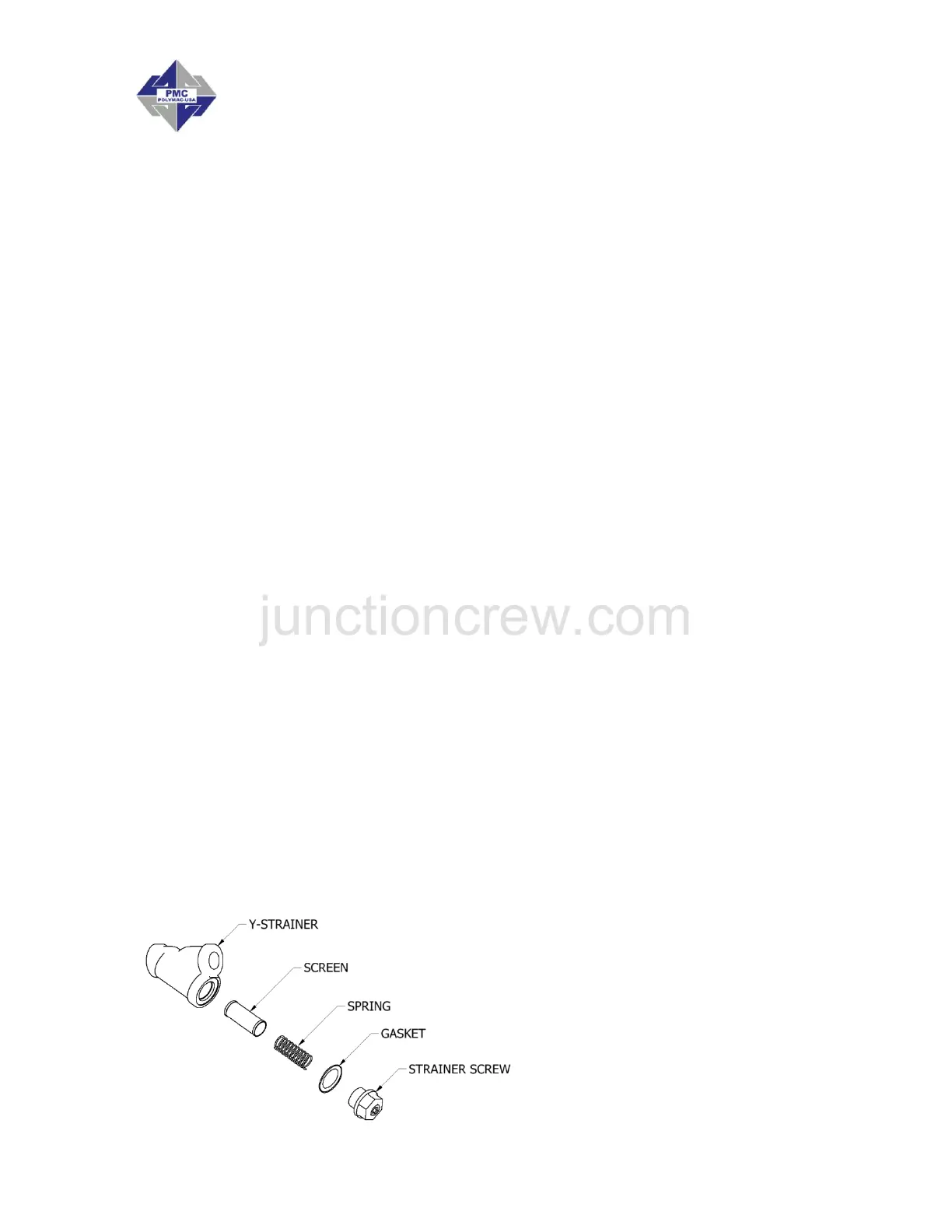

M. Inlet Material Strainer
Screens (60 mesh) material from bulk supply.
