PMC PH-2 - R Inlet Manifold Assembly

PH/PHX-2 Manual
74

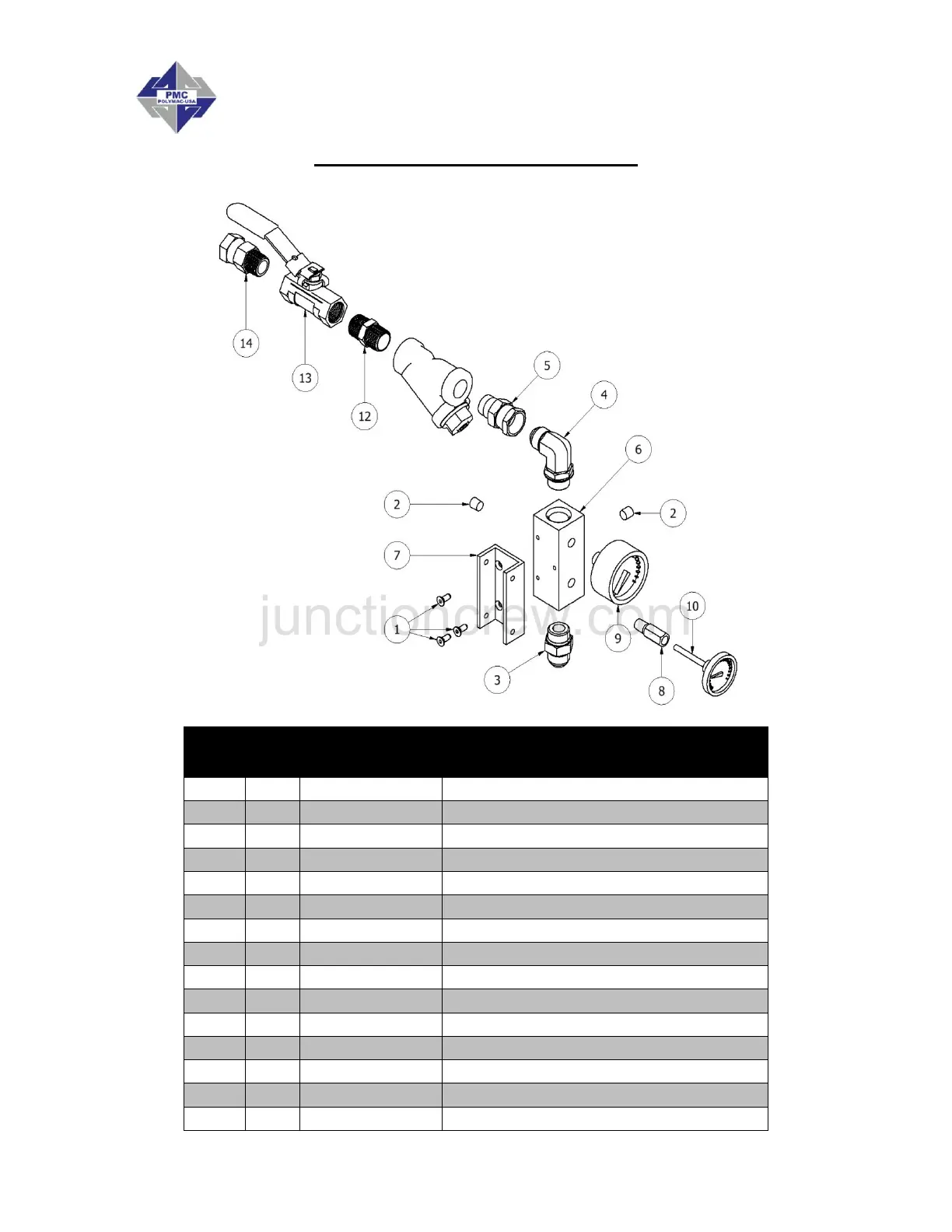

“R” INLET MANIFOLD ASSEMBLY
“R” INLET MANIFOLD ASSEMBLY
YS-7
ITEM
QTY
PART NUMBER
DESCRIPTION
1
3
FLOOR STOCK
1/4-20 X 5/8 FLAT COUNTERSUNK SHCS
2
2
HI-05036
1/4 NPT FLUSH SEAL PIPE PLUG
3
1
HI-05325
12 ORB X ¾ JIC
4
1
HI-05315
12 ORB X ¾ JIC; 90 DEG
5
1
HI-05316
¾ JIC SWIVEL TO ¾ NPT
6
1
HI-05305
INLET MANIFOLD
7
1
HI-05341
INLET MANIFOLD MOUNT
8
1
HI-05311
TEMP GAUGE STANDOFF
9
1
HI-05103
PRESSURE GAUGE; CM 0-600 PSI
10
1
HI-05055
TEMP GAUGE 0-200 DEG F/C
11
1
RA-00074-00A
Y-STRAINER ASSEMBLY
12
1
HI-05017
3/4 NPT HEX NIPPLE
13
1
RA-000078A
3/4 FPT BALL VALVE; SS, 1000PS
14
1
HI-05016
3/4 M X 3/4 F NPT SW
