12. AUTO SHUT DOWN COUNTER
If this function is not needed, leave it in the off position.
To set the Auto Shut Down Counter:
a. Turn the switch to the on position, the green light will illuminate.
b. Insert the number of cycles desired to disable the PH machine by pushing in on the
white triangles to set the cycle count. Push in on the red button until the data is

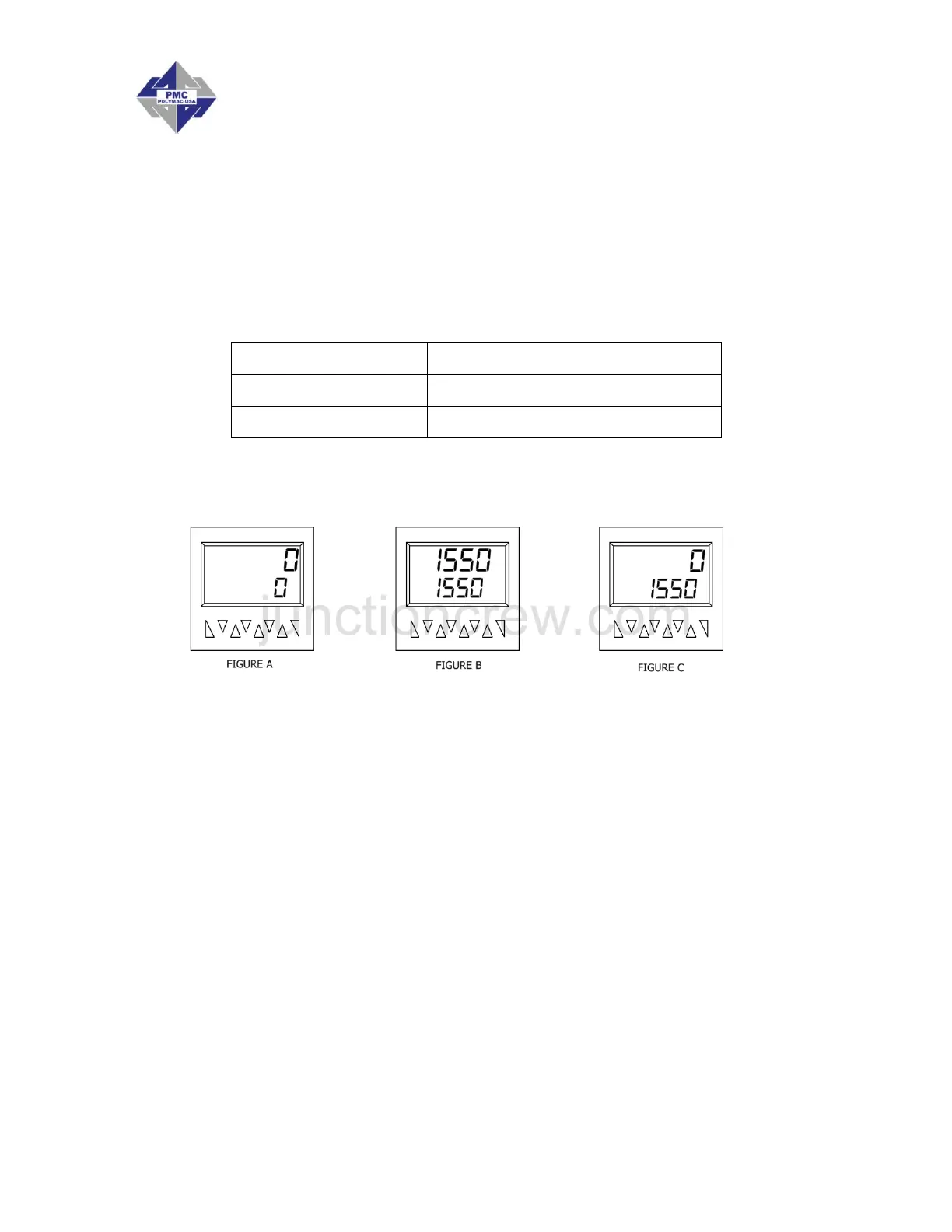

replicated on the top row, the top row will count down. Figure B
MODEL
CYCLES PER GALLON
PH-2, 2000 PSI
123 pumps 23 cycles = 1 gallon
PHX-2, 3000 PSI
61 pumps 47 cycles = 1 gallon
c. When the counter counts down to zero the machine will stop and the pump
directional light will be off, push in on the red button to reset.
13. Proceed with Installation and Start-up of the Spray Gun as per the Gun manual.
