PH-20/PHX-20 Manual
10

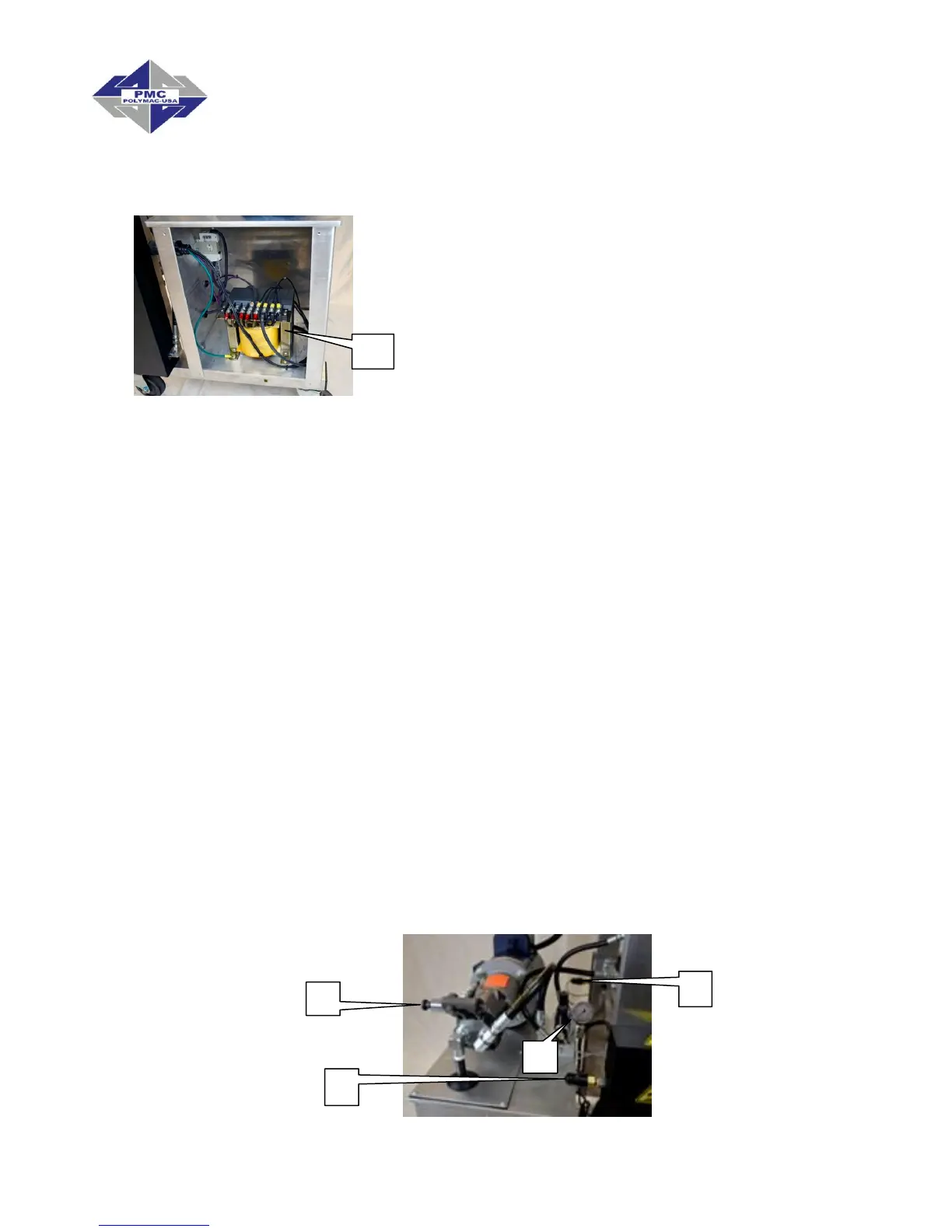

F. Hose Heating Transformer – Right side, inside of hydraulic tank
Supplies the required voltage for material Heated Hoses.
G. Hydraulic Pressure Gage
Indicates the pressure in the Hydraulic Drive System.
H. Isocyanate (Iso, A) Pressure Gage
Indicates the pressure in the Isocyanate system.
I. Isocyanate (Iso, A) Safety Pressure Switch
Turns OFF the Directional Valve in the event of excessive pressure in the Isocyanate
system.
J. Isocyanate (Iso, A) Thermocouple
Provides temperature information of the Isocyanate to its Temperature Controller.
K. Polyol (Poly, R) Pressure Gage
Indicates the pressure in the Polyol system.
L. Polyol (Poly, R) Safety Pressure Switch
Turns OFF the Directional Valve in the event of excessive pressure in the Polyol system.
M. Polyol (Poly, R) Thermocouple
Provides temperature information of the Polyol to its Temperature Controller.
N. Hydraulic Pressure Control
Allows the pressure of the hydraulic system to be increased or decreased. Turn
clockwise to increase the pressure and counterclockwise to decrease. To regulate the
pressure of the hydraulic system, the NORMAL or RETRACT Pump Switch position
must be selected.
N
G
F
I
L
