ELECTRICAL

5.6

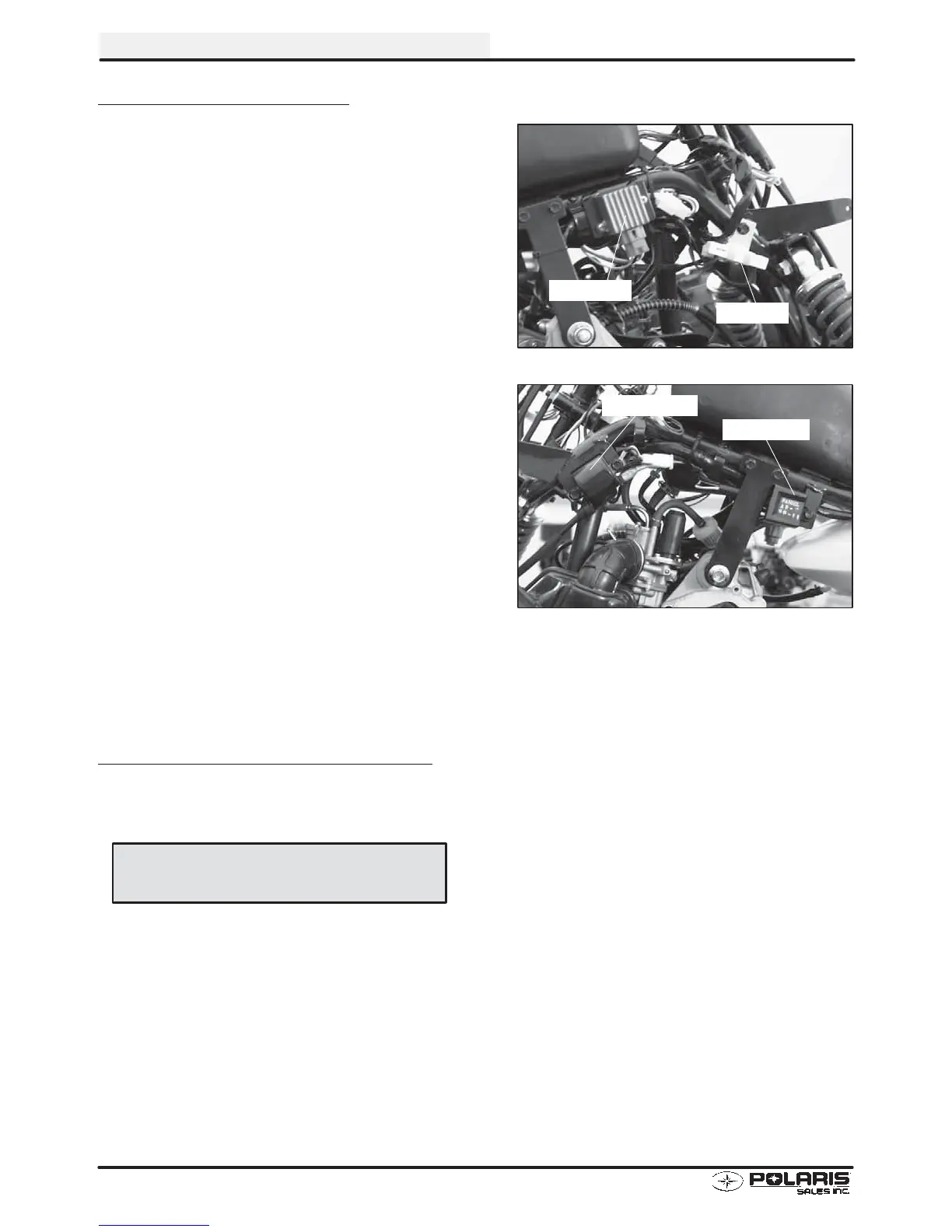

ELECTRONIC PARTS

1. There are four (4) main electronic parts in the Scrambler

50 and Sportsman 90. They are: regulator, resistor...

...C.D.I. unit, and ignition coil.

CURRENT DRAW - KEY OFF

Connect an ammeter in series with the negative battery cable. Check for current draw with the key off. If the draw

is excessive, loads should be disconnected from the system one by one until the draw is eliminated. Check com-

ponent wiring as well as the component for partial shorts to ground to eliminate the draw.

Current Draw - Key Off:

Maximum of .02 DCA (20 mA)

Regulator

Resistor

C.D.I. Unit

Ignition Coil

C.D.I. Unit

Ignition Coil
